Geotextile Dynamic Puncture Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The geotextile dynamic puncture tester is used to test the resistance of various geotextile materials to penetration by a steel cone dropped from a fixed height, characterizing the geotextile material's resistance to rockfall impact.
Application
It is used to test the penetration ability of various geomaterials to resist steel cones falling from a fixed height, so as to characterize the rock fall resistance performance of ten geomaterials.
Standard
JTG E50:Test Methods of Geosynthetics for Highway Engineering
ISO/DIS 13433:Geosynthetics - Dynamic Perforation Test - Cone Drop Method (Draft International Standard)
GB/T17630:Geosynthetics - Dynamic Perforation Test - Cone Drop Method
Feature
High precision and excellent stability: It can accurately simulate the perforation behavior of geotextiles under various adverse conditions, providing objective and accurate data support.
Simple and convenient operation: The equipment has a compact structure and is easy to maintain, providing users with stable and repeatable test results.
Wide range of applications: It can meet the geotextile testing needs of different fields and different types of applications.
Parameters
| Specification | Details |
|---|---|
| Clamping ring diameter | 150 ± 0.5mm |
| Distance from steel cone tip to sample | 500 ± 2mm |
| Stainless steel cone - cone angle | 45° |
| Stainless steel cone - total mass | 1000 ± 5g |
| Measuring cone mass | 600 ± 5g |
| Overall size | 435x575x1600mm |
Send product request
Other supplier products
 |
Textile water evaporation rate tester - Test Equipment | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Standard: The design and operation of this tester are aligned with key internatio... |
 |
Coated fabric flexing resistance testing machine - lab instrument | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com The instrument tests coated fabric strips by windin... |
 |

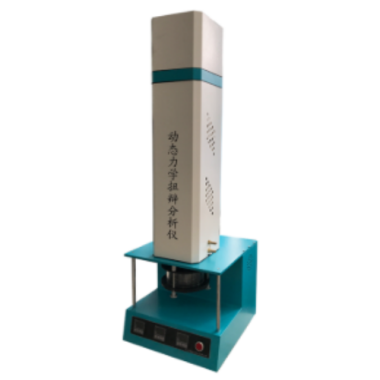

Dynamic mechanical torsional braid analyzer | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Dynamic Mechanical Torsional Braid Analyzer (TBA) is a computer-controlled the... |
 |
