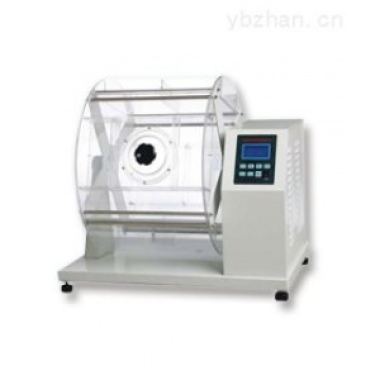

Fabric Downproof Tester(Rolling Box) BS EN 12132-1
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Fabric Downproof Tester (Rolling Box) is designed to evaluate the down-proof performance of textiles by simulating friction and impact stresses similar to real-world use. It ensures that fabrics used in garments, bedding, and outdoor products prevent feather leakage and meet quality standards. The instrument combines automation, precision, and durability, and operates in compliance with international down-proof testing standards.
Application
The tester is suitable for evaluating down-proof performance in textiles for jackets, comforters, sleeping bags, and other down-filled products. It is ideal for quality control, R&D, and production inspection, ensuring that materials resist feather penetration and maintain integrity under repeated use.
Standards
GB/T 12705.1: Textile – Methods of testing down-proof properties – Rubbing test
GB/T 14272: Requirements for down garments
BS EN 12132-1: Feather and down – Methods of testing down-proof properties – Rubbing test
Feature
(1) Automated operation with computer control, auto-shutdown, and alarm at test completion.
(2) LED digital counter with calibration system for precise cycle management (1–9999 rotations).
(3) Robust 316 stainless steel frame for corrosion resistance and long-term durability.
(4) Transparent polycarbonate safety cover allows real-time observation of tests.
(5) Standardized butyl rubber balls simulate real-world friction and down migration stress.
(6) Compact design for easy relocation and space-saving laboratory setup.
(7) Supports international power supply (220V/50Hz).
Technical Specifications
| Parameter | Specifications |
|---|---|
| Test Mode | Automatic |
| Speed | 135 RPM |
| Fixture Material | Stainless Steel |
| Fixture Length | 125 ± 1 mm |
| Fixture Spacing | 44 ± 1 mm / Adjustable |
| Safety Cover Material | Transparent Acrylic |
| Driving Wheel Eccentric Distance | 25 ± 0.5 mm |
| Drive Wheel Center to Bottom | 100 ± 1 mm |
| Weight | 14 kg |
| Power Supply | 220V, 50Hz |
| Appearance Dimensions | 490 × 310 × 250 mm |
| Rotary Testing Chamber | 450 × 450 × 450 mm |
| Rotation Speed | 45 rpm (bidirectional) |
| Impact Simulation | 10 butyl rubber balls, hardness 45 ±10 Shore A, weight 140 ± 5g |
| Footprint | 850 × 650 × 800 mm |
| Total Weight | 60 kg |
