Textile formaldehyde content tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
The Textile Formaldehyde Content Tester is a precision instrument designed to determine the formaldehyde levels in textiles, including fabrics and finished garments. It employs chemical extraction and colorimetric methods (e.g., Nessler reagent reaction) to accurately quantify free and hydrolyzed formaldehyde content, ensuring compliance with national and international textile safety standards. The instrument supports high-throughput testing, data storage, and automated wavelength calibration for reliable and repeatable results.
Application
This tester is widely used in:
Textile manufacturing and processing factories for quality control.
Garment production lines to ensure finished products meet formaldehyde safety standards.
Textile laboratories for research and development of safe, low-formaldehyde fabrics.
Inspection and testing agencies verifying compliance with regulatory standards.
Educational institutions for textile chemistry and safety training.
Standards
The instrument is compliant with:
GB/T 2912 – Textiles: Determination of formaldehyde – Part 1: Free and hydrolyzed formaldehyde
AATCC 112 – Textiles: Determination of formaldehyde – Vapor absorption method
BS 6806 – Textile formaldehyde testing
DIN EN ISO 14184-2 – Textiles: Determination of formaldehyde – Part 2: Released formaldehyde (vapor absorption method)
Relevant Chinese national standards: GB 18401-2003. GB/T 23328-2009. GB/T 2664-2009. GB/T 2665-2009. GB/T 2666-2009. GB/T 23314-2009
Features
(1) Large 128×64 dot-matrix LCD display for clear and accurate readings.
(2) Continuous testing with storage of up to 200 data sets; each screen displays 5 sets.
(3) Supports C mode (multi-point standard curve method) and F mode (coefficient method) for flexible analysis.
(4) Power-off memory ensures stored data and standard curves are preserved.
(5) Automatic wavelength calibration, deviation self-repair, and automated settings.
(6) Dual light sources: deuterium lamp and long-life tungsten lamp for UV and visible spectrum.
(7) Standard USB data output interface and parallel print output for easy reporting and integration.
(8) Quantitative analysis software included for direct photometric analysis and data processing.
Parameters
| Parameter | Specification |
|---|---|
| Wavelength Range | 190–1000 nm |
| Spectral Bandwidth | 4 nm or 2 nm optional |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | ≤0.3 nm |
| Wavelength Setting | Automatic |
| Wavelength Resolution | 0.1 nm |
| Luminosity Accuracy | ±0.5% T |
| Photometric Repeatability | ≤0.2% T |
| Stray Light | ≤0.05% T |
| Data Output | USB interface |
| Stability | ±0.001 A/h (at 500 nm after preheating) |
| Luminosity Range | 0–200% T, -0.3–3A, 0–9999C |
| Print Output | Parallel port |
| Display System | 128×64 bit LCD |
| Light Source | Imported long-life tungsten lamp & deuterium lamp |
| Detector | Imported silicon photodiode |
Send product request
Other supplier products
 |
Vibration and Crash Simulation Dummy for EV Batteries | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The dummy complies with and supports testing according to the following standard... |
 |
Digital Fully Automatic Falling Sand Abrasion Tester | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com The Fully Automatic Falling Sand Abrasion Tester is designed to evaluate the ... |
 |
Bundle wire and cable burning test machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards According to IEC60332-3-10:2000.and GA306.1-2007 Main components Testing cha... |
 |
Intervertebral Fusion Cages Torsion Fatigue Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard YY/T 0959-2014 (China): Specifies torsional fatigue testing protocols for interve... |
 |

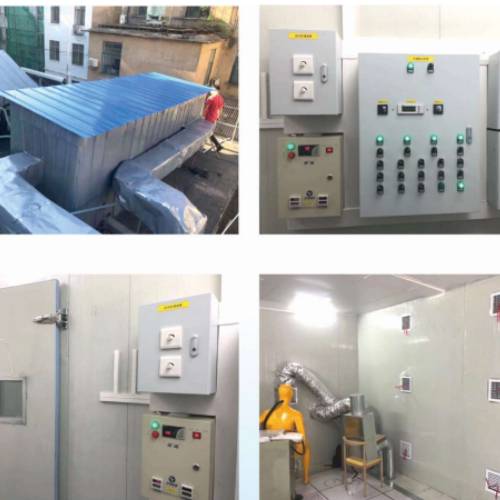

Airflow conditioning environmental chamber for product reliability testing | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com The Airflow Conditioning Environmental Chamber is an advanced high-end experi... |
