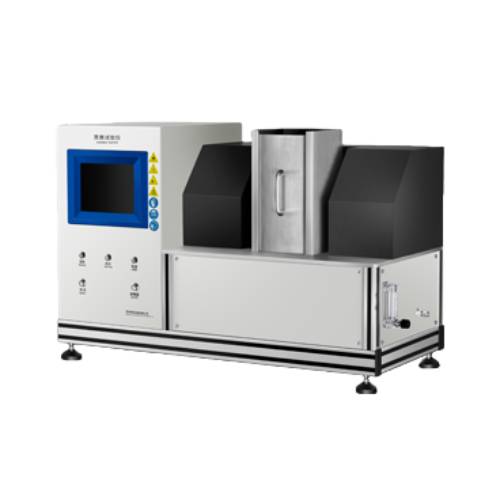

Fabric Fiber Shedding Degree Tester (Friction)
Get a quote：
Whats/App: +86 181 0160 0864
The Fabric Fiber Shedding Degree Tester (Friction) is an instrument used to evaluate the light-blocking performance of fabrics and is widely used in the textile industry. It calculates the light-blocking rate by simulating different light intensities and measuring the illuminance value of light passing through the fabric. The tester has an accuracy of up to +5% and is suitable for various types of fabrics, including sheet textiles and coated fabrics.
Applications
The Fabric Fiber Shedding Degree Tester (Friction) is suitable for sheet textile products such as curtain materials. It is used to measure the total visible light transmittance of the fabric to evaluate its light-blocking performance.
Standards
JIS L1005-2009 ：Textiles - Determination of light transmittance of sheet textile products
Features
Touch screen controller: The number of frictions can be set arbitrarily.
Backup mechanical buttons for buttons in the touch screen: They can be used simultaneously, which is convenient and fast.
Pneumatic holder for specimen installation: Convenient and fast.
Equipped with a calender for adjusting the moisture content of the abrasive: The roll-off rate can be adjusted.
Complies with the standard: Appendix A of GB/T 40270 - 2021
Technical Parameters
| Parameter | Specification |
|---|---|
| Stroke of the friction head | (200 ± 2) mm |
| Reciprocating speed | 30 times/min |
| Diameter of the circular friction head | (90 ± 1) mm |
| Outer diameter of the fixed clamp ring of the friction head | (120 ± 0.5) mm |
| Inner diameter of the fixed clamp ring of the friction head | (90 ± 0.5) mm |
| Diameter of the test washer | (113 ± 0.5) mm |
| Foam plastic washer | Diameter 105 mm, thickness 8 mm, unit area mass approximately 270 g/m² |
| Total mass of the friction load | (595 ± 7) g |
| Sandpaper | 600 - grit aluminum oxide water - washable sandpaper |
| Power supply | AC 220V, 50Hz |
Test Procedures
1. Sample Fixation
Lay the sample to be tested flat and fix it to the sample holder of the instrument using a pneumatic clamp.
2. Abrasive Treatment
Use the calender provided with the instrument to adjust the abrasive moisture content (roller speed can be adjusted) to obtain moistened abrasive.
3. Abrasive Installation
Install the treated moistened abrasive onto the friction head.
4. Parameter Setting
Set the required load, number of friction cycles, and friction stroke via the touch screen (or spare mechanical buttons).
5. Test Start
Start the instrument and allow the friction head to perform a set number of reciprocating friction cycles on the sample surface with the abrasive.
6. Result Evaluation
After the test, compare the fibers adhering to the abrasive with the standard sample to visually evaluate the degree of fiber adhesion, thereby characterizing the fiber shedding rate of the sample.
