MECHANIC X120 Ultra 200W High-Efficiency Rework Station with Color Display
MECHANIC X120/X200 Ultra 200W Precision Soldering Station for mobile motherboard and BGA chip maintenance. These stations support T115, T210, and T245 handles, providing compatibility with C115, C210, and C245 tips to cover everything from microscopic jump wires to large thermal-mass ground planes.
Option:
1. MECHANIC X120 Ultra soldering station standard: 1x 210 handle+1x C210 tip.
2. Mechanic X200 Ultra dual-handle soldering station standard: 2x 210 handles+2x C210 tips.
Mechanic X120 Ultra Soldering Station Features:
1. Featuring a built-in transformer, the unit ensures stable power supply and is ready for immediate use; it supports prolonged, high-intensity continuous operation, delivering highly reliable output.
2. Utilizing high-frequency eddy current heating (1–4.6 kHz), it achieves rapid temperature rise and offers approximately double the efficiency of traditional PWM systems.

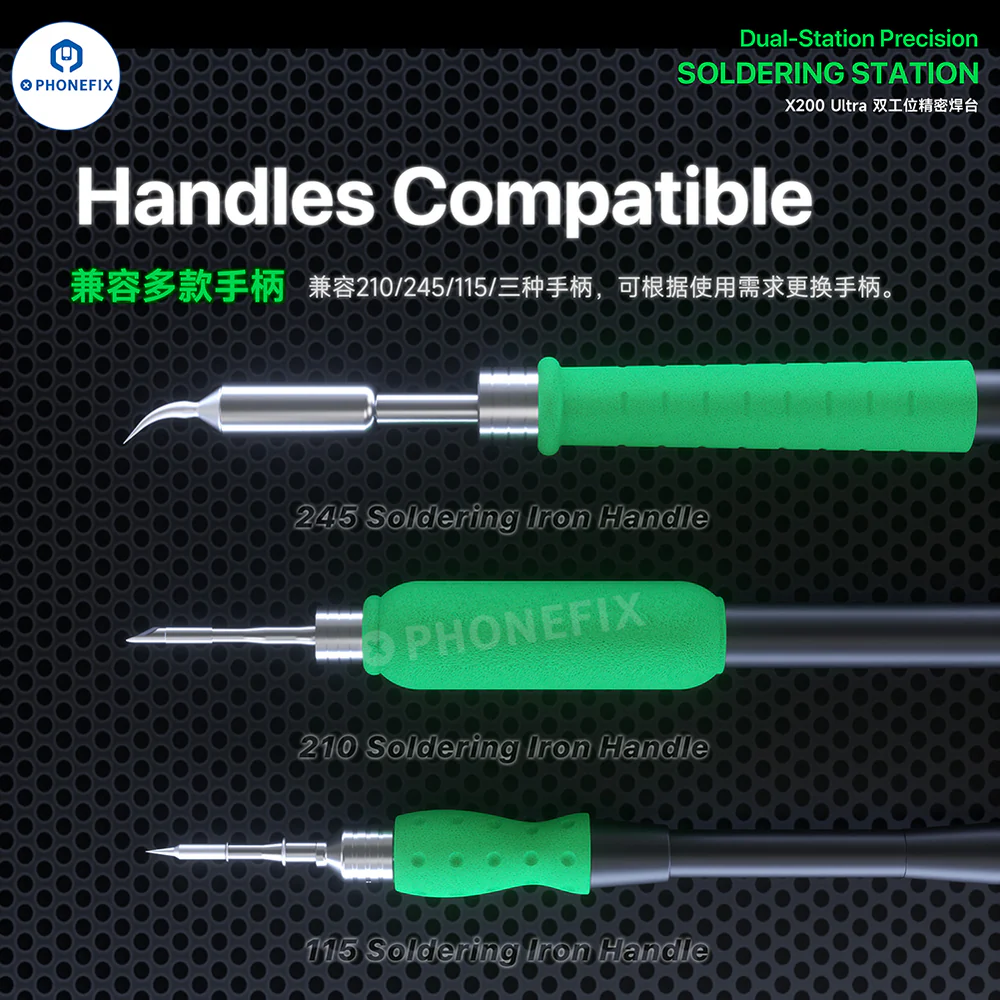

3. Compatible with multiple handle types—C210, C245, and C115—allowing for seamless switching to meet a wide range of soldering requirements.
4. A high-definition LED screen provides real-time displays of temperature and power; combined with touch-based adjustments and preset switching capabilities, operation is both highly efficient and intuitive.
5. This device features a compact size, which saves desktop space, making it suitable for workstations with limited counter space.
Mechanic X200 Ultra Features:
1. The Mechanic X200 Ultra features a dual-station soldering platform, allowing for the simultaneous connection and use of two soldering iron handles—eliminating the need to frequently plug and unplug handles or tips.
2. Equipped with a built-in high-performance transformer, it delivers stable output and is capable of sustaining prolonged, high-load operation.
3. It utilizes high-frequency eddy current heating (1–4.6 kHz) for rapid temperature rise, offering approximately twice the efficiency of traditional PWM systems.
4. Supports multiple handle types—including C210, C245, and C115—allowing for seamless switching to accommodate a wide range of soldering requirements.
5. A high-definition LED screen provides real-time displays of temperature and power; combined with touch-based adjustments and preset switching capabilities, it ensures a highly efficient and intuitive user experience.
Mechanic X120 Ultra Product Specifications
Name: Mechanic X120 Ultra Precision Soldering Station
Power: 200W
Temperature Range: 90°C – 450°C
Input Voltage: 200V – 240V (US Version: 90V – 130V)
Compatible Handles: 210/245/115
Product Dimensions: 149x150x125 mm
Package Dimensions: 242x221x159 mm
Net Weight: 1.4 kg
Gross Weight: 1.6 kg
Mechanic X200 Ultra Product Specifications:
Name: Mechanic X200 Ultra Dual-Station Precision Soldering Station
Power: 200W
Temperature Range: 90°C – 450°C
Input Voltage: 200V – 240V (US Version: 90V – 130V)
Compatible Handles: 210/245/115
Product Dimensions: 205x150 x125 mm
Package Dimensions: 237x240x160 mm
Net Weight: 1.4 kg
Gross Weight: 1.6 kg
X120 Ultra Packing List
Main Unit ×1
Power Cord ×1
210 Handle ×1
210 Iron tip ×1
Cable Collector ×1
Brass Cleaning Wire ×1
Cleaning Sponge ×1
User Manual ×1
X200 Ultra Packing List
Main Unit ×1
Power Cord ×1
210 Handle ×2
210 Heating Element ×2
Cable Collector ×2
Brass Cleaning Wire ×2
Cleaning Sponge ×2
User Manual ×1
