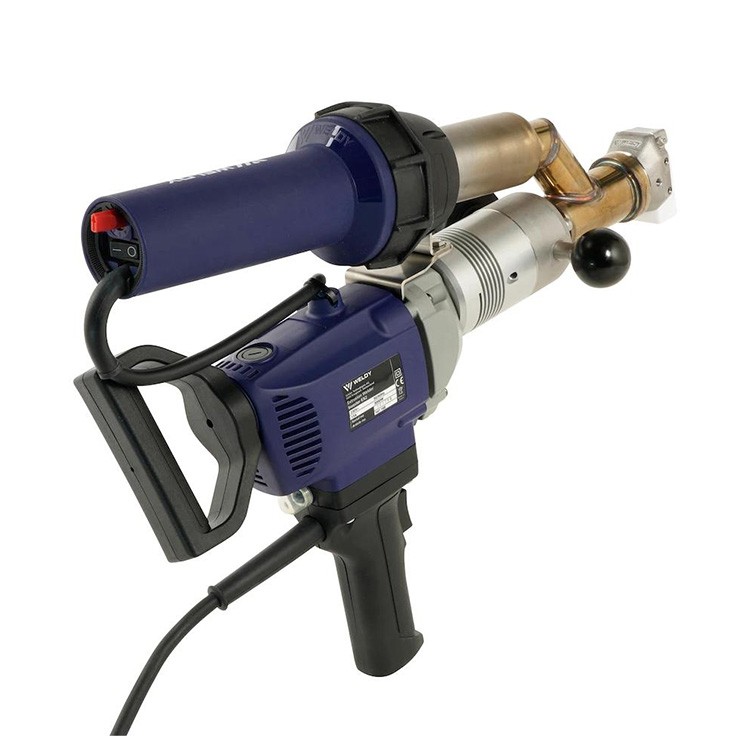

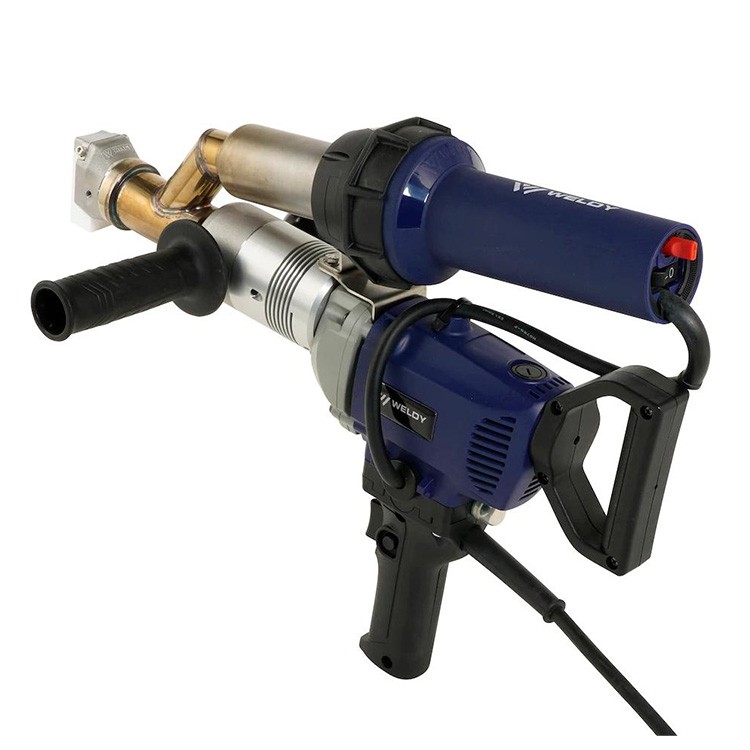

Weldy Booster EX2 Extrusion Welders 146.738
TECHNICAL DATA
VOLTAGE
230 V
FREQUENCY
50/60 Hz
POWER
3000 W
WELDING ADDITIVE
ø 3–4 mm / 0.12–0.16 in
MATERIAL OUTPUT Ø 3 MM
1.5 kg/h 3.3 lb/h
MATERIAL OUTPUT Ø 4 MM
2.2 kg/h 4.85 lb/h
WELDING MATERIALS
HDPE , LDPE , LLDPE , PP
AIR GUIDE
Internal
SCREW HEATING
Air heated
AIR TEMPERATURE CONTROL
Open loop
LQS
No
DISPLAY
No
BRUSHLESS BLOWER MOTOR
No
BRUSHLESS DRIVE MOTOR
No
LED WORKING LIGHT
No
LENGTH
500.0 mm 19.68 in
WIDTH
140.0 mm 5.51 in
HEIGHT
380.0 mm 14.96 in
WEIGHT
6.4 kg 14.1 lb
POWER CABLE LENGTH
3.0 m 9.84 ft
NOISE EMISSION LEVEL
74 dB (A)
APPROVALS
CE , UKCA
PROTECTION CLASS
II
COUNTRY OF ORIGIN
CN
