Carpet hair removal measurement device
Standard
- ASTM D5417(Standard Test Method for Quantifying Loss of Fiber from Carpets)
- ISO 10362(Textile Floor Coverings - Determination of Fiber Loss)
- IWCS-104(International Wool & Carpet Standard for Shedding Resistance)
Product Advantages
- Precision Fiber Loss Analysis
- High-resolution optical sensor (±0.01g accuracy) captures even minute fiber shedding, ideal for delicate wool, synthetic, and blended carpets.
- User-Centric Design
- 5-inch color touchscreen with intuitive navigation and multilingual support (English, French, Arabic, Japanese) for global accessibility.
- Rugged Build Quality
- Anodized aluminum housing and anti-static test chamber resist dust accumulation and ensure long-term durability.
- Versatile Testing Modes
- Supports bothdry rubbingandwet agitationtests to simulate real-world conditions like vacuuming, foot traffic, and cleaning.
- Cost-Effective Operation
- Low-maintenance design with replaceable abrasive pads and minimal calibration requirements.
Product Features
- Advanced Testing Modes:
- Adjustable test cycles (1–999 rotations) and pressure settings (0.5–5 kPa) to replicate light residential use to heavy commercial wear.
- Real-time fiber loss tracking with graphical data output for immediate analysis.
- Safety & Compliance:
- Overload protection, automatic shutoff after preset cycles, and CE/FCC certification for safe laboratory use.
- Data Management:
- Onboard storage for 5,000+ tests, exportable via USB/Wi-Fi in Excel/PDF formats. Compatible with LIMS (Laboratory Information Management Systems).
- Universal Sample Compatibility:
- Adjustable clamp system accommodates carpets up to 1m² in size, including shag, loop pile, and cut-pile designs.
Technical Parameters
| Parameter | Specification |
|---|---|
| Measurement Range | 0.01–100 g (fiber loss) |
| Test Cycle Range | 1–999 rotations (adjustable) |
| Pressure Settings | 0.5–5 kPa (±0.1 kPa accuracy) |
| Optical Sensor Resolution | 0.01g |
| Power Supply | 100–240V AC, 50/60Hz, 150W |
| Dimensions (L×W×H) | 450×350×600 mm |
| Weight | 45 kg |
| Operating Environment | 10–40°C, ≤75% RH (non-condensing) |
Accessories Included
- Abrasive Pads(10 pcs): Standardized pads for dry/wet testing (ISO-compliant).
- Sample Clamps(2 sets): For securing loop-pile and shag carpets during testing.
- Cleaning Kit: Brush, vacuum nozzle, and lint-free cloth for post-test maintenance.
- Calibration Weight: 100g NIST-traceable weight for annual verification.
- User Manual & Software: Digital guide (multilingual) + PC software for advanced data analytics and report generation.
Ideal For:
- Carpet manufacturers (wool, synthetic, blended fibers)
- Textile testing laboratories
- Quality control departments in home furnishing brands
- Retailers requiring shedding resistance certifications
Send product request
Other supplier products
 |
Thermal cycle wet freezing testing machine | Standard IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval UL 1073: Standard for Safety for Enclosu... |
 |

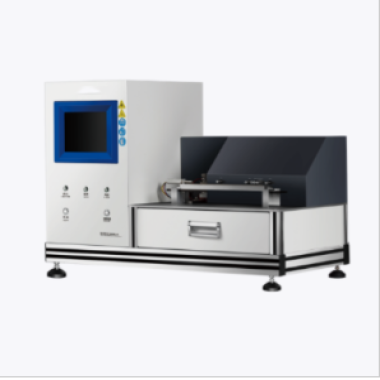

Solid Combustion Rate Tester | Product Introduction This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 33.2.1.4 Test... |
 |

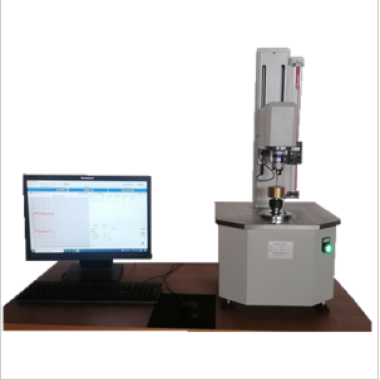

Bearing Friction Torque Measuring Instrument | Bearing friction torque is an important factor affecting bearing noise, vibration, and lifespan, and is a key indicator for measuring the dynamic p... |
 |
