4K Ultra HD Microscope Camera Integrated Lens Light for mobile phone motherboard BGA CPU IC soldering and repair
Description
4K Ultra HD Camera Integrated Light Source and Microscope Lens All in One (All-in-one microscope), and uses a 8.29 million pixel 1/2.8-inch Sony CMOS sensor, suitable for mobile motherboard BGA CPU IC soldering and repair. HDMI USB output, 4K video recording and photography, etc.
Option:
4K integrated microscope camera.

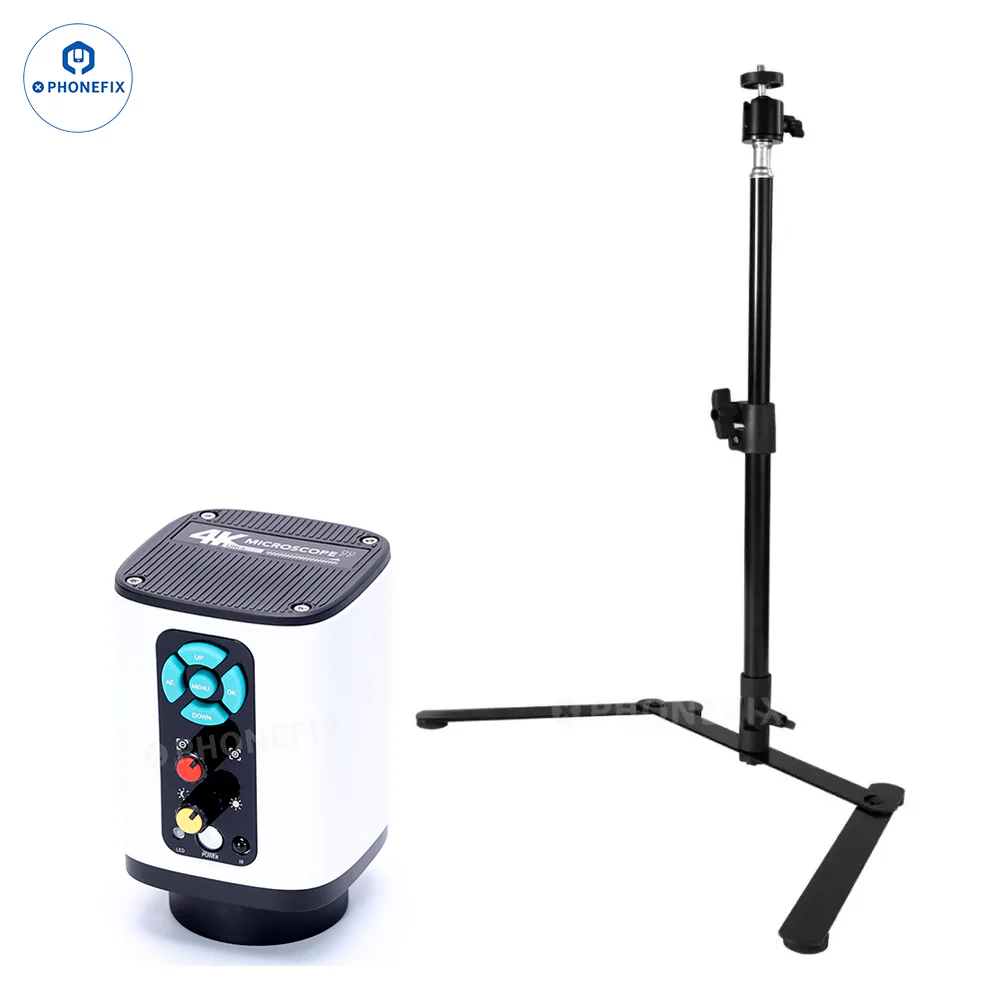

SET 1: 4K integrated microscope camera + bifurcated bracket.

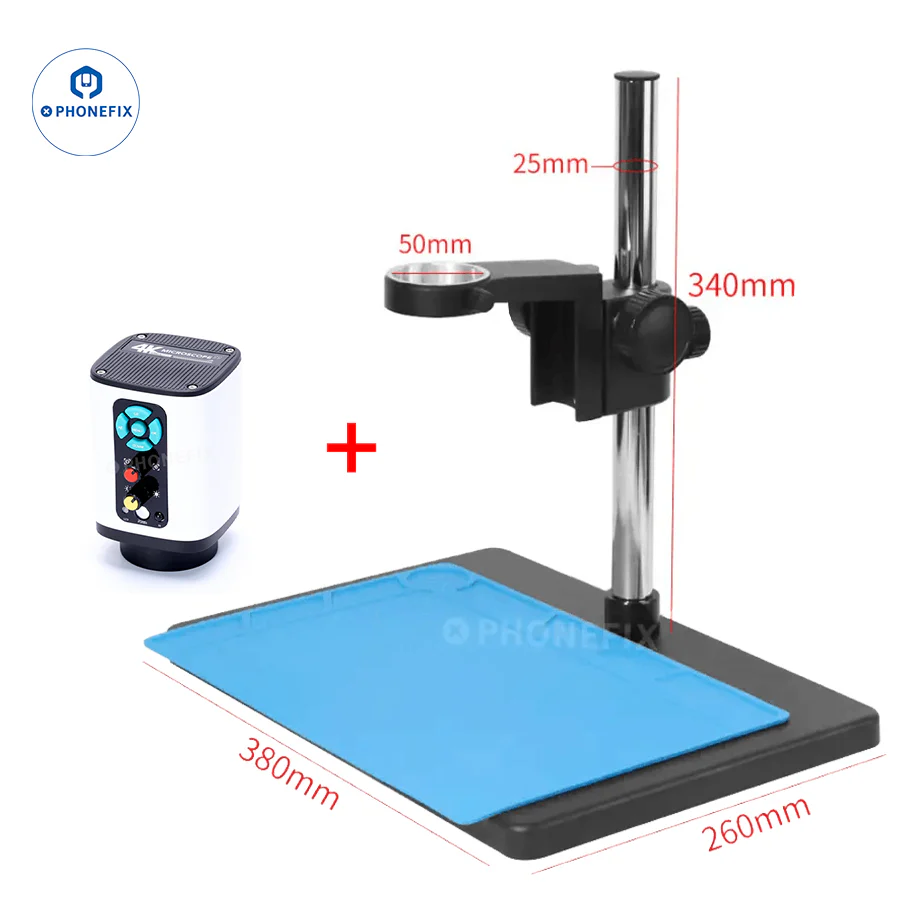

SET 2: 4K integrated microscope camera + 38cm bracket.
SET 3: 4K integrated microscope camera + round bracket.
SET 4: 4K integrated microscope camera + simple holder 50mm holder.
Features:
1. Adopts 8.29 million pixel Sony CMOS image sensor, 1/2.8 inch image sensor.

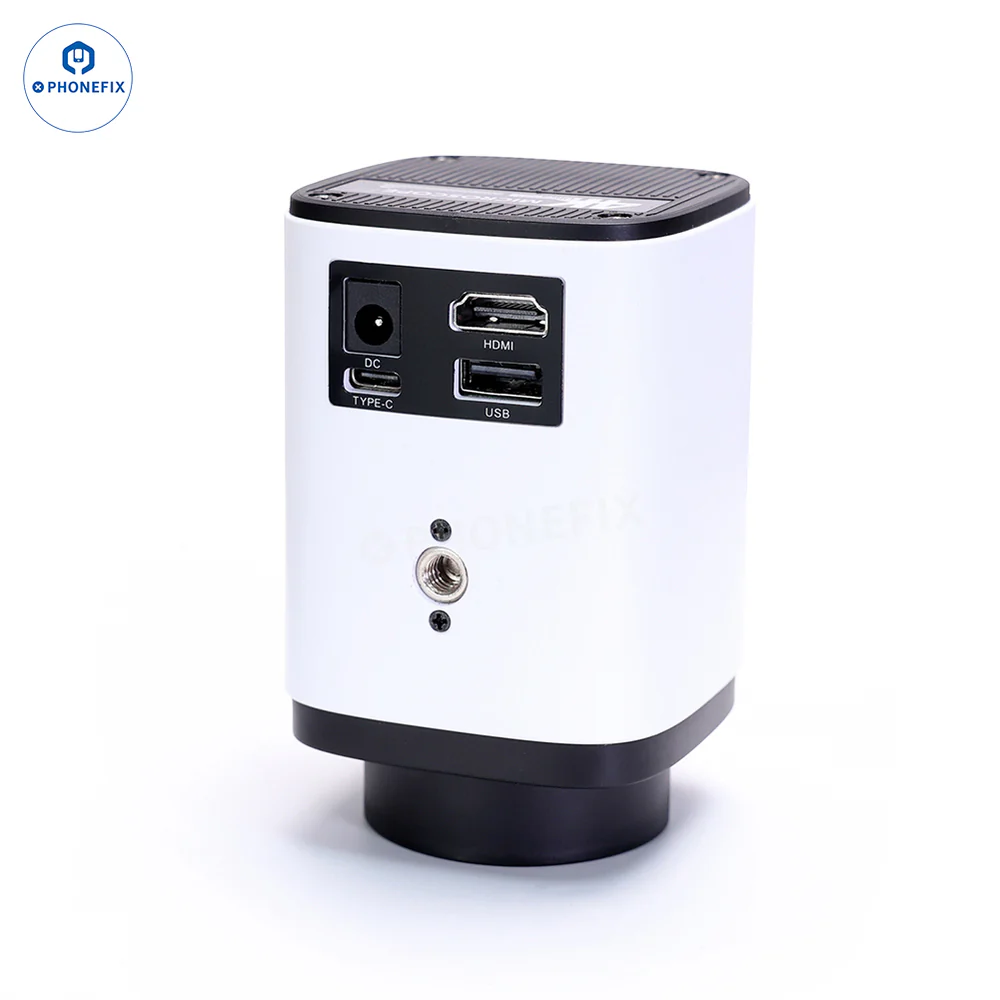

2. HDMI 3840*2160 30 frames/1080P 60 frames image output, USB2.0 connects to computer without driver output 3840*2160 30 frames image output.
3. Electronic zoom function, 4K video recording, 4K photo taking, one-key freeze/thaw function/same screen comparison, remote control focus without shaking.
4. Support manual/automatic exposure, exposure compensation value adjustment, red, green and blue adjustable.
5. Support U disk storage, maximum support 64GB, remote control operation and photo taking without shaking, clearer image. And support 8 countries menu language (default English) and shutdown setting parameter saving.

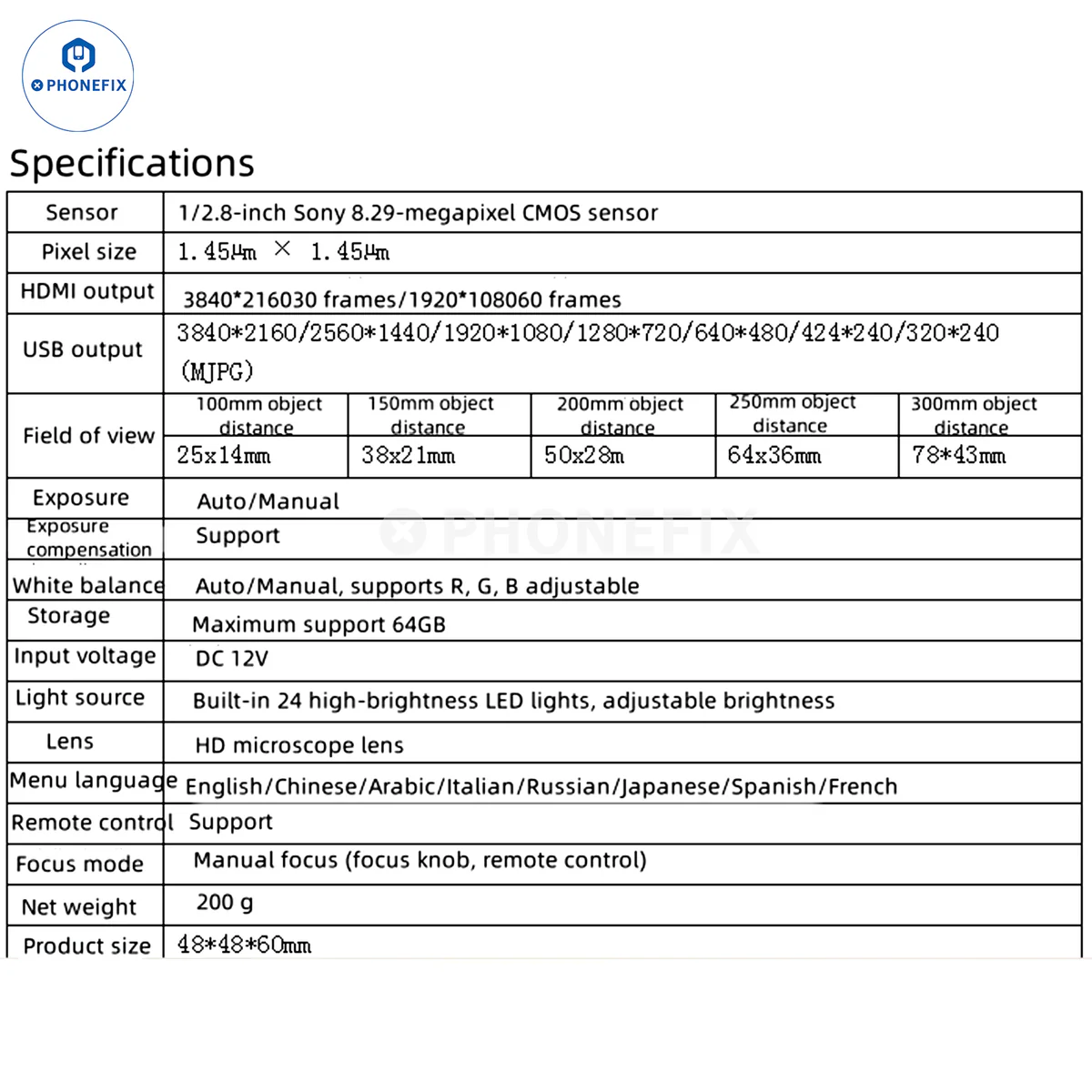

Product Specifications:
Sensor: 1/2.8 inch Sony 8.29 million pixel CMOS sensor
Pixel size: 1.45μm·X.1.45μm
HDMI output: 3840x2160·30 frames/1920x1080.60 frames
USB output: 3840x2160 /2560x1440 /1920x1080 /1280x720 /640x480 /424x240/320x240. (MJPG)
Field of view: 100mm object distance 25x14mm, 150mm object distance 38x21mm,
200mm object distance 50x28m, 250mm object distance 64x36mm, 300mm object distance 78x43mm.
Exposure: Auto/Manual
Exposure compensation: Supported
White balance: Automatic/manual, supports R, G, B adjustable
Storage: supports up to 64GB
Input voltage: DC 12V
Light source: built-in 24 high-brightness LED lights, adjustable brightness
Lens: HD microscope lens
Menu language: English /Chinese /Arabic /Italian /Russian /Japanese /Spanish/French
Remote control: Supported
Focus mode: Manual focus (focus knob, remote control)
Net weight: 200g
Product size: 48x48x60mm
