Solid Combustion Rate Tester
Product Introduction
This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 33.2.1.4 Test N.1: Test Method for Flammable Solids issued by the United Nations, GB/T 21618 - 2008 Test Method for Burning Rate of Flammable Solids in Dangerous Goods, and NY/T 1860.15 - 2010 *Guidelines for Physicochemical Property Testing of Agricultural Chemicals - Part 15: Solid Flammability.
Product Features
Technical parameters
|
Operating environment |
(5~40)°C, <85%RH |
|
Ignition source temperature |
≥1000°C |
|
Ignition method |
Gas igniter with nitrogen-silicon rod |
|
Combustion detection stroke |
(0~250)mm |
|
Combustion distance measurement accuracy |
±0.5mm |
|
Timing range |
5min (non-metallic); 20min (metallic) |
|
Timing display resolution |
|
|
Pile stack mold |
Triangular-shaped molds 260mm long, 20mm wide, profiled to an inner height of 10mm |
|
Burner plate |
Flat plate made of corundum mullite, impervious to penetration, non-combustible, and with low thermal conductivity |
Send product request
Other supplier products
 |
Image test standard transmission light box meter | Standard CIE 15:2004: Adheres to colorimetry standards for spectral measurement. ISO 3664:2009: Compliant with viewing conditions for graphic art... |
 |
Metal ring friction and wear testing machine | Evaluate the wear resistance of the material: By simulating the friction process, real-time monitoring of friction, temperature, wear and other pa... |
 |

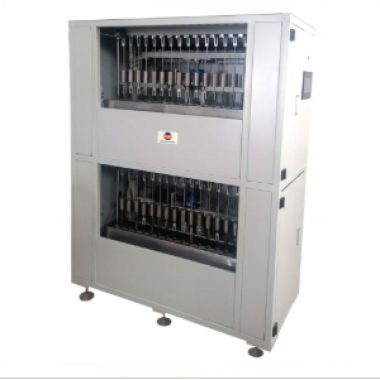

Geomembrane Environmental Stress Cracking Resistance Tester | Scope of application: The stress cracking strength of polyolefin geomembrane was measured and evaluated by notch constant load tensile test. Durin... |
 |
