UV Condensation Aging Test Chamber
Standard
ASTM G154.ISO 4892-3.JIS K 7350. andSAE J2020for UV exposure testing.
IEC 60068-2-78for condensation and humidity resistance evaluations.
Technical Parameters
| Parameter | Specification |
|---|---|
| Temperature Range | UV Mode: RT+10°C to 70°C / Condensation Mode: RT+10°C to 50°C |
| Humidity Range | 45%–95% RH (condensation phase) |
| UV Wavelength | UVA-340nm (295–360nm) or UVB-313nm (280–315nm) |
| UV Lamp Power | 40W × 2 (user-replaceable) |
| Cycle Timer | 1–9999 hours (adjustable) |
| Sample Capacity | 48 standard specimens (150×70mm) |
| Power Supply | AC 220V/50Hz or 110V/60Hz (customizable) |
| Chamber Dimensions | 1100mm (L) × 500mm (W) × 1350mm (H) |
| Weight | 180kg (net) |
Product Advantages
Precision Environmental Control
Independent regulation of UV intensity (0.1–1.5 W/m²), temperature (RT+10°C to 70°C), and condensation cycles for accurate simulation of natural weathering.
Programmable cycles combine UV exposure and condensation phases to replicate years of outdoor aging in weeks.
Energy-Efficient Performance
Dual UV lamp system reduces energy consumption by 30% compared to traditional models.
Self-contained water recycling system minimizes resource waste.
Durable & Low-Maintenance Design
Stainless steel interior resists corrosion from prolonged humidity exposure.
Easy-access water tank and replaceable UV lamps (lifespan ≥1.600 hours) simplify maintenance.
User-Friendly Operation
7-inch touchscreen interface with multi-language support (English/Spanish/Chinese).
USB data port for real-time test logging and analysis.
Product Features
Dual-Mode Testing: Cycle between UV irradiation (simulating sunlight) and condensation (mimicking dew/rain) automatically.
Fluorescent UV Lamps: UVA-340 or UVB-313 options to match specific wavelength requirements.
High-Humidity System: Heated water tank generates vapor for 100% RH condensation control.
Sample Observation Window: Tempered glass door with LED lighting for in-process monitoring.
Safety Protection: Over-temperature alarm, water shortage alert, and emergency stop function.
Send product request
Other supplier products
 |
Film Impact Testing Apparatus (Gardner Type) | Product Introduction: The coating impact resistance test device is mainly used to test the damage degree of the coating after the impact, which fu... |
 |
Catheter Hydraulic Leakage Tester | The Catheter Hydraulic Leakage Tester is a testing instrument specifically developed and manufactured for leak detection and quality assessment of ... |
 |
Film impact Tester (Gardner) | The Film Impact Tester (Gardner) is designed to evaluate the impact resistance of coatings and paint films. It determines the degree of damage such... |
 |
Toy Flame Suppression Tester | Standards: EN 71-2 ISO 8124-2 GB 6675.3 EN 16890-2017 Application: Toys Flammability Tester is used to test children apparel or toy and its d... |
 |

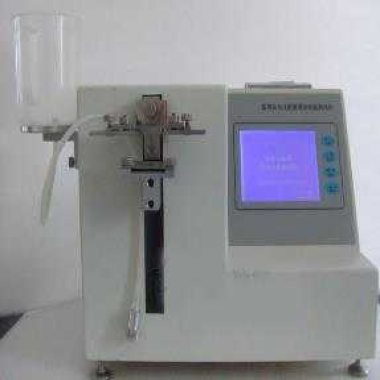

Syringe Sealing Positive Pressure Tester | The Syringe Sealing Positive Pressure Tester is a precision instrument designed to evaluate the tight-fitting performance of disposable syringes. I... |
