Hot Cold Chamber
Features and Benefits
1.Hotcoldchambercan range from very low temperatures ( -70 ° C or lower) to high temperatures (+180 ° C or higher) to simulate a variety of extreme environments.
2.The internal temperature field is uniform, so that the sample is heated or cooled to a similar degree in temperature control chamber.
3.Precise temperature control and uniformity ensure reliable and repeatable test results, providing a strong basis for product improvement.
4.Hotcoldchambercan highly simulate the alternating cold and hot environment that the product may encounter in actual use, such as the working condition of electronic products in desert high temperature and polar low temperature.
Specifications
Model |
STD T-100 |
STD T-225 |
STD T-500 |
STD T-1000 |
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
1000*1000*1000 |
Overall Dimension (mm) |
900*1050*1620 |
1000*1140*1870 |
1200*1340*2020 |
1500*1540*2140 |
Interior Volume |
100L |
225L |
500L |
1000L |
Heat load |
1000W |
|||
Temperature Range |
A : -20℃～+150 ℃ B : -40℃～+150 ℃ C: -70℃～+150 ℃ |
|||
Temperature Fluctuation |
± 0.5 ℃ |
|||
Temperature Deviation |
± 2.0 ℃ |
|||
Cooling Rate |
1 ℃ / min |
|||
Heating Rate |
3 ℃ / min |
|||
Cooling system |
Mechanical compression refrigeration system |
|||
Refrigerating unit |
French TECUMSEH compressor |
|||
Heating Element |
Nichrome heater |
|||
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Safety Device |
Over-temperature protection;Over-current protection; Refrigerant high-pressure protection; Earth leakage protection |
|||
Send product request
Other supplier products
 |
Helmet Anti-roll-off Performance Tester | Purpose Apply an initial load of a certain force to the rear of the helmet. Then, let a weight specified by the standard fall from a certain heigh... |
 |
Waterproof socks testing machine | Shoes Water Penetration Test Apparatus is used to test waterproof performance of shoes socks and shoes lining of rubber shoes. Standards: HG/T366... |
 |
Standard Helmet Visual Field Tester | Standards EN 1078:2023: Helmets for Pedal Cyclists, Skateboarders, and Roller Skaters CE Certification(Conformité Européenne) Equi... |
 |
Metallic Cables and Wire Ropes Mechanical Property Testing Machine | Standard YY/T 0812-2010 (China): Specifies mechanical testing protocols for metal cables/cables used in fracture fixation, including fatigue stren... |
 |

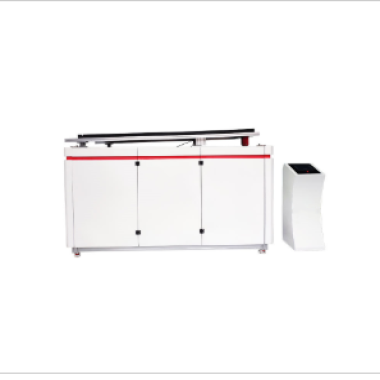

Strength Tester for Lead - end of Photovoltaic Modules | Standard IEC 61215-2:2016: Terrestrial Photovoltaic (PV) Modules – Test Requirements for Electrical and Mechanical Components CE Certificat... |
