ASTM F963 Nail Bed Flammable Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
G963 Nail Bed Flammable Tester, It is suitable for the burning performance test of cloth toys and filling materials. Perform the flammability of the flammable parts of solid and soft toys, and burning time is recorded to judge if the flammability of the burning part meets the standard requirements.
Applicable standards:
16 CFR 1510
ASTM F963 4.6.2
Product Advantages:
Ensures Optimal Protection: Verifies that the mask forms a proper seal, guaranteeing that the wearer receives the intended level of protection against airborne hazards.
Compliance with Regulations: Helps organizations and manufacturers meet mandatory fit testing requirements set by occupational safety and health regulations and standards.
Objective Measurement (for QNFT): Provides a quantitative Fit Factor, offering a precise and objective measure of mask seal effectiveness, unlike subjective qualitative tests.
Versatile Application: Can be used to test various types of tight-fitting face masks, including filtering facepieces (like N95s), half-face respirators, and full-face respirators.
User-Friendly Interface: Modern testers are designed with intuitive controls and software, making the testing process straightforward for operators.
Comprehensive Data Analysis: Software typically allows for data logging, analysis, and reporting of fit test results for record-keeping and compliance purposes.
Field Application
G963 Field Application , The burning performance test of cloth toys and plush toys is often used to test the flammability of the fluff flammable parts, and the burning time is recorded to judge whether the flammability of the burning part meets the standard requirements.
It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervisiondepartment, etc.
Technical Parameters
|
Test mode: manual |
Number of support nails: 64 |
|
Material: Stainless steel |
Supporting nails margin distance: 0.62 inches (15.7mm) |
|
Screw size: #10-32× 0.38 inches (long)Number of screws: 9 |
Support nails center distance: 4.69 inches119mm) |
|
Screw margin: 0.31 inch (7.8mm)Screw spacing: 1.25 inches (31.75mm)Support nails size: #8d X 2.50 inches (long) |
Upper pressing plate size:257X257x3mm |
|
Test mode: manual |
Lower pressing plate size:254X255.5x6.35mm |
|
Material: Stainless steel |
Weight: 8kg |
|
Screw size: #10-32× 0.38 inches (long)Number of screws: 9 |
Appearance size :: 250mmX260mmX150mm |
Test method:
Preparation
Prepare the sample, place it on the equipment, and measure the length of the sample.
Ignition operation:
Use a candle with a flame height of 16mm to ignite the sample with the top of the flame for 5s.
Observation record:
Remove the flame, observe the burning for 5s or burn to the other end of the main shaft, and calculate the burning rate.
Application field
Toy industry:
In toy production, it is used to detect the flammability of cloth toys, plush toys, etc., to ensure that the combustion performance of toys meets safety standards and ensure the safety of children.
Textile industry:
Test the combustion performance of various textile fabrics, provide data support for the research and development and production of fabrics, and help enterprises choose appropriate flame retardant treatment processes.
Other fields:
In some industries that require the combustion performance of materials, such as household goods and clothing, it is used to evaluate the combustion characteristics of materials when a fire occurs, and provide a reference for the safety design of produ
Send product request
Other supplier products
 |
Stick-Slip – Tribological Test Stand (G-H3P)，Stick-slip friction testing machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Stick-Slip Tribological Test Stand is designed to predict stick-slip noise (“sque... |
 |
Tensile and Shear Test device | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Tensile and Shear Tester analyzes hand movements-referred to as "tensile"and "shear"-pe... |
 |
RE Type Side Impact Crash Dummy Supplier | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com The Male Side Impact Dummy (RE Type) is a high-fidelity side impact test dumm... |
 |
Foam Repeated Compression Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Foam repeated compression testing machine will accurately measure the thickness of the test... |
 |

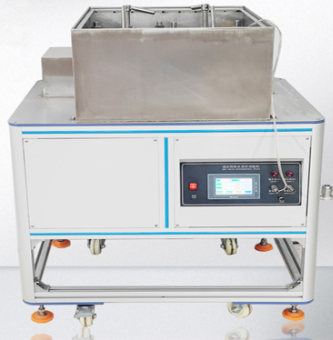

Footwear Testing Equipment Manufacturer | Dynamic Waterproof Performance Tester | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications (1)Testing finished shoes for dynamic waterproof performance un... |
