Large diameter blasting test machine

The large-diameter blasting test machine can perform continuous (linear) pressure testing of pipes according to ASTM D 1599 standard. The pressurization rate is adjustable, allowing for the determination of the minimum burst pressure value within a specified time.

Applications

This instrument is widely used in polymer material manufacturing companies, dyeing and printing companies, textile testing departments, research institutions, and textile colleges.

The instrument is also suitable for performance verification of new product development, quality control in production departments, third-party testing institutions, laboratory product performance verification, and material performance testing by quality and technical supervision departments.

Standards

ASTM D1599: Compliant for short-time hydraulic failure testing of thermoplastic pipes under linear pressure ramp.

ISO 1167: Configurable for long-term hydrostatic pressure resistance testing (optional module).

Features

Linear Pressurization Technology:

Proprietary algorithm maintains ±0.5% FS pressure accuracy during ramping.

Auto-pause function at pre-defined thresholds for microstructure analysis.

High-Efficiency Pumping:

Triplex plunger design with ceramic-coated pistons for corrosion resistance.

Self-priming system with air bleed valve for rapid setup.

Data Acquisition:

1kHz sampling rate captures pressure spikes during failure events.

Edge computing module processes data in real-time (no external PC required).

Sample Compatibility:

Accommodates pipes up toØ1.600mm(63”) via optional expansion kits.

Quick-connect fittings for metric/imperial pipe threads.

Safety Systems:

Acoustic rupture detection (120dB alarm).

Emergency stop with E-Stop loop monitoring.

Accessories & Options

Pressure Calibration Kit:

NIST-traceable reference gauge (0.05% FS accuracy).

High-Flow Pump Head:

Upgrade to 1.200 L/min @ 80 Bar for fire hose testing.

Thermal Expansion Module:

Water bath heater (60–95°C) for hot hydrostatic testing.

Rupture Disk Kit:

Pre-scored disks for consistent failure initiation.

Safety Bundle:

ATEX-certified enclosure + CO₂ fire suppression.

Data Acquisition Software:

BurstVision Pro™: 3D pressure-time-strain mapping with FEA export.

CloudLink: Secure remote monitoring for global teams.

Technical Parameters

Specification	Details
Pressure Range	0–600 Bar (8.700 psi)
Flow Rate (Variable)	250 L/min @ 100 Bar
Pump Configuration	Modular VFD-driven triplex plunger
Temperature Range	5–60°C (ambient)
Power Supply	400V/50Hz 3-phase (CE certified)
Chamber Dimensions	2.200mm (L) × 1.200mm (W) × 1.500mm (H)
Weight	1.200 kg (net)

Accessoriess

1. Standard Included Accessories

Multi-specification high-strength clamps: Suitable for DN100~DN600 (or larger diameter) pipes, made of alloy steel with an anti-deformation design, used to securely clamp large-diameter samples and prevent displacement during testing.

Large-diameter sealing components: Fluororubber/polyurethane material, suitable for end-face sealing requirements of different pipe diameters, resistant to high pressure and corrosion, ensuring no leakage of the test medium.

High-precision pressure sensor: Accuracy ±0.1% FS, range covering 0~60MPa (or customized), real-time monitoring of test pressure to ensure data accuracy.

High-pressure connecting pipelines: Stainless steel material, pressure rating matching the sensor range, used to transport the test medium (water/oil) and connect the sample to the pressure system.

Sample size measurement tools: Digital caliper (range 0~500mm), wall thickness gauge, used to measure the outer diameter, wall thickness, and other basic parameters of large-diameter samples.

Safety protection devices: Explosion-proof glass observation window, emergency pressure relief valve, overload protection switch, ensuring safety during the testing process and avoiding high-pressure risks.

Operation manual + calibration certificate: Includes equipment operation and maintenance instructions and factory calibration records, guiding standardized use and qualification traceability.

Spare sealing gaskets and O-rings: Consumable parts of the same specifications as the sealing components, used to replace aging or damaged sealing parts.

2. Optional/Spare Accessories

Extra-large diameter customized clamps: Suitable for special pipe diameter samples above DN600. meeting non-standard large-diameter testing needs.

Medium filtration and circulation system: Filters impurities in the test medium, enabling medium recycling and reducing testing costs.

Data acquisition software: Supports real-time data curve plotting and data export (Excel/PDF), facilitating test data traceability and analysis.

Spare pressure sensor and pressure relief valve: Quickly replace faulty components, reducing equipment downtime.

Sample support bracket: Used to assist in the installation of extra-long/extra-heavy large-diameter samples, facilitating clamp positioning.

Test Procedures

1. Pre-test Preparation

Check that the equipment power supply, hydraulic system, and high-pressure pipeline connections are normal, replenish the test medium (deionized water/special hydraulic oil), and confirm that the emergency pressure relief valve is closed; calibrate the pressure sensor, and clean the surfaces of the fixtures and seals.

2. Specimen Preparation and Installation

Cut the large-diameter specimen according to the test standard, measure and record parameters such as outer diameter, wall thickness, and length; select the appropriate fixture and sealing components, place the specimen smoothly into the fixture, adjust the position to ensure that the specimen axis is consistent with the direction of force, evenly tighten the fixture, and pre-pressurize with low-pressure medium to check the sealing performance.

3. Parameter Setting

Set the test mode (burst test/hydrostatic pressure holding test), pressure increase rate (e.g., 1 MPa/min), and target pressure (or pressure holding time) through the control panel; enable the data acquisition function, and save the parameters after confirming their accuracy.

4. Safety Confirmation and Start

Close the test chamber protective door, and ensure that the operators have evacuated the safe area; press the start button, and the equipment will automatically increase the pressure at the set rate, monitoring the panel pressure data and specimen status in real time.

5. Test Monitoring

During the pressure increase process, observe whether there is leakage in the pipeline or loosening of the fixture, and record the pressure change curve; for burst tests, focus on the burst pressure value at the moment of specimen rupture; for pressure holding tests, maintain the set pressure for the specified duration and monitor pressure stability.

6. Test Completion and Cleaning

After the specimen ruptures in a burst test, the equipment automatically releases the pressure; after the pressure holding test reaches the set duration, manually start the pressure release procedure (slow pressure release to avoid impact); after the pressure drops to atmospheric pressure, open the fixture and remove the specimen, and record the test results (burst pressure, whether the pressure holding is qualified, etc.); clean the fixtures, seals, and test chamber, drain the residual medium, turn off the equipment power, organize the test data, and generate a report.

Other supplier products

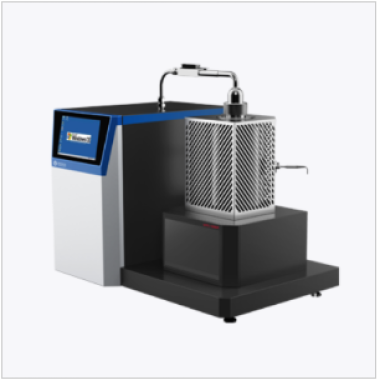

	Minimum Ignition Temperature (MIT) – Dust Cloud Tester	Dust Cloud Minimum Ignition Temperature Tester is mainly used to assess the explosiveness of dust in the production and processing places such as a...
