Battery combustion tester，Battery Cell Fire Tester，IEC 62281
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Product Description
Battery combustion tester is a device that can be applied to the safety test of lithium-ion batteries, which can realize the simulation of the battery in the burning flame jet sizzling under the harsh conditions, to verify the safety performance of the battery.
TEST STANDARD
UL 1642:2012;
UL 2054:2012;
IEC 62281:2004;
UN 38.3
Functional features
Apply to GB31241-2014 battery test standards, battery combustion jet test;
Using liquefied petroleum gas as fuel, Bunsen burner, can set the flame application time, adjustable flame height;
Strictly in accordance with the specification requirements for the design of the test steel mesh, protection of the aluminum mesh, the position of the burner and the test platform;
Overall box double-layer structure, the setting of the test chamber lighting, explosion-proof port devices, forced Rigorous safety design, double gas leakage alarm device, gas leakage can automatically cut off the gas source immediately;
Selected high-quality electrical components, with local and remote operation switching function;
Optional fire extinguisher module and video monitoring function (video monitoring function requires the customer to provide PoE power supply standard for IEEE802.3af/at switch).
Technical parameter
|
Power supply |
Voltage single-phase 220VAC±10% (110VAC can be customized), frequency 50Hz/60Hz, power 0.5KW |
|
Operating environment |
Suggested ambient temperature 25±3℃, humidity 30~90RH(%), no vibration and electromagnetic interference |
|
Test items |
Flame jet test |
|
Test objects |
Button, cylindrical, flexible packaging, square lithium battery |
|
Applicable standards |
GB31241-2014. UL1642. UL2054. SJ/ T 11170-1998. etc. |
|
Combustion gases |
High purity liquefied petroleum gas |
|
Burner |
Bunsen burner, inner diameter of the tube mouth 9.5mm, length 100mm |
|
Flame control |
Automatic ignition, flame application time and continuation of combustion time 0~999s continuously adjustable |
|
Flame height |
10~75±2mm |
|
Test steel mesh |
Diameter 0.45mm, 20 mesh |
|
Test aluminum mesh |
Diameter 0.25mm, 16 mesh |
|
Mounting dimensions |
W1020mm*D980mm*H1865mm |
|
Weight |
Approx. 357Kg |
Send product request
Other supplier products
 |
5 position seatbelt abrasion tester supplier | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1) ASTM D6770 – Webbing abrasion resistance test (2) FED STD 191 –... |
 |
Orthopedic External Fixator Mechanical Testing Equipment Manufacturer | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1)YY/T 0856-2011 (China): Specifies mechanical testing protocols ... |
 |
Cone Calorimeter，Affordable Cone Calorimeter，Automated Cone Calorimeter | Whats/App: +86 156 1874 6768 Web: standard-groups.com Ignition system 1、 10kV spark lighter with safe fire-off device. The lighter automatically... |
 |

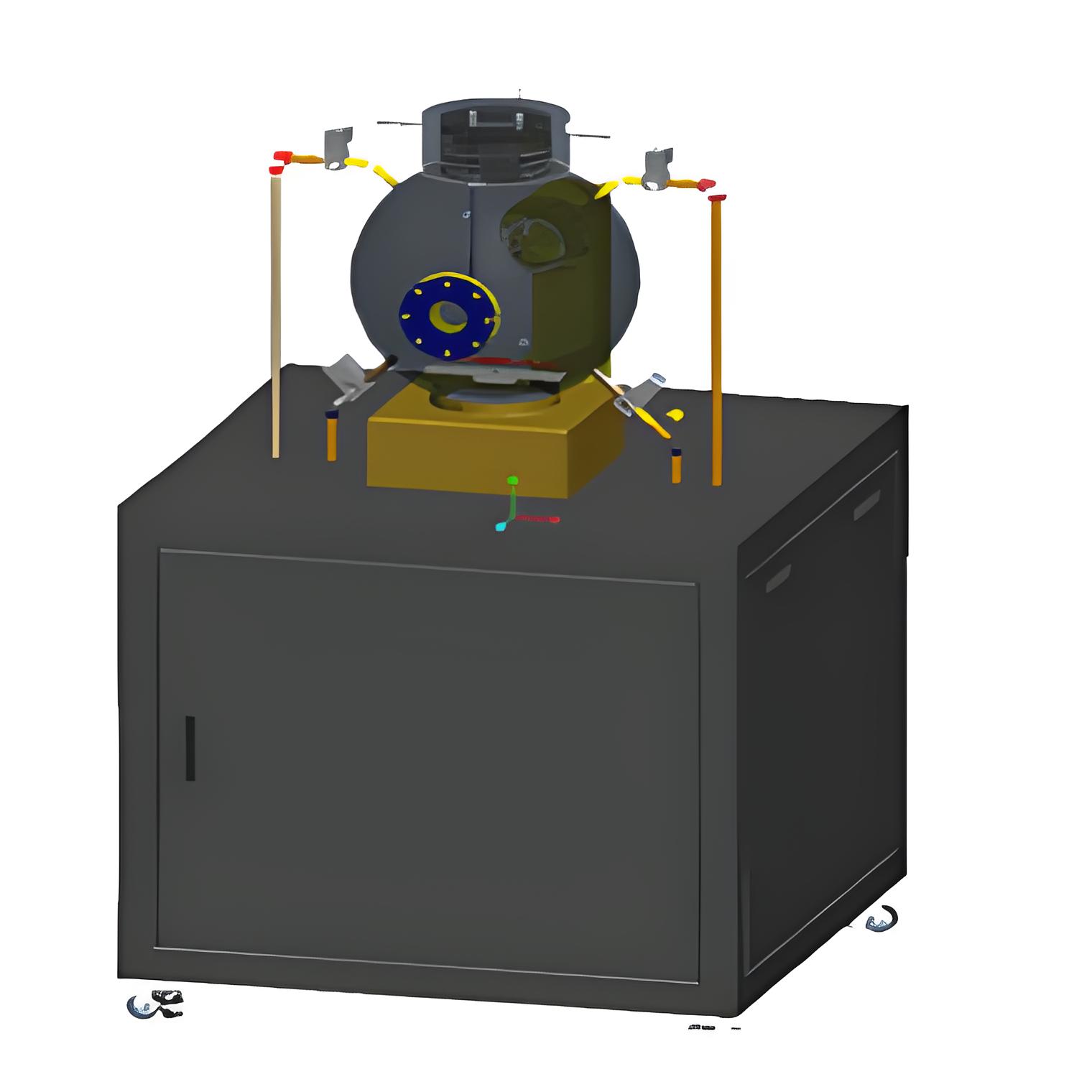

Gas Hazard Characteristics Tester | Flammability & Explosion Analysis | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Scope of Application and Standards The Gas Hazard Characteristics Tester is ... |
 |
