Leather Bending Resistance Tester manufacturer
Applicable Standards
The tester adheres to global standards for leather physical testing, including:
ISO 5402-1(Leather – Physical and mechanical tests – Determination of flex resistance)
ASTM D6193(Standard Practice for Loops in Leather)
SATRA TM54(Standard method for leather flex resistance testing)
GB/T 3903.41(China’s national standard for leather flexing durability)
EN 13521(Flexometer testing for coated fabrics and leather)
These standards ensure consistent evaluation of leather’s ability to withstand repeated bending without cracking or surface damage.
Working Principle
The tester operates bycyclic mechanical flexing:
Sample Preparation: Leather strips are cut into standardized dimensions and clamped between two jaws.
Bending Cycle: A motorized arm repeatedly bends the sample at a preset angle (e.g., 90° or 180°) and frequency (e.g., 200 cycles/min).
Cycle Execution: The test runs until surface cracks appear, or a predefined cycle count (e.g., 50.000 cycles) is reached.
Damage Assessment: Post-test, samples are evaluated for cracking, creasing, or coating delamination using microscopy or visual grading.
Test Principle & Applications
Flex Resistance Testing (ISO 5402-1/SATRA TM54):
Samples are bent 50.000–100.000 times to simulate years of use.
Results are graded based on crack appearance:
Grade 5: No visible cracks.
Grade 1: Severe cracking or delamination.
Key Industries:
Footwear: Validating shoe vamp and lining leather durability.
Automotive: Testing steering wheel covers and gearshift knobs.
Fashion: Assessing handbag and belt leather flexibility.
The Leather Bending Resistance Tester is essential for manufacturers aiming to enhance product lifespan, reduce returns, and meet stringent quality benchmarks. Its precision and adherence to global standards make it a cornerstone of leather testing laboratories.
Main Parameters
| Parameter | Specification |
|---|---|
| Test Stations | 1–6 (simultaneous testing of multiple samples) |
| Bending Angle | 0–180° (adjustable for different material flex requirements) |
| Stroke Frequency | 100–300 cycles/min (programmable) |
| Sample Dimensions | 70 × 45 mm (standard for leather strips) |
| Clamping Force | 0–50 N (adjustable to prevent slippage) |
| Control System | PLC-based with 7-inch touchscreen (multilingual interface) |
| Power Supply | 220V/50Hz, 150W |
| Dimensions | 600 × 400 × 500 mm (L × W × H) |
Send product request
Other supplier products
 |
Elmendorf Tearing Strength Tester - Test Equipment | TheManual Tear Strength Testeris a precision instrument designed to measure the tear resistance of materials using standardized methods such as the... |
 |

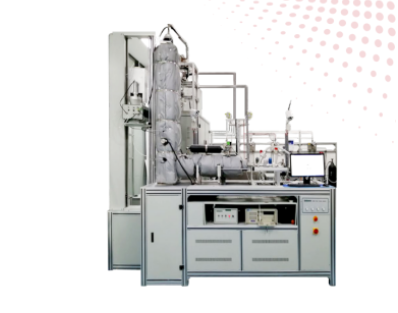

Filter Media Test System - Test Equipment | The Filter Media Dynamic Filtration Performance Testeris mainly used to test the filtration performance of filter materials. The equipment itself i... |
 |
Seat Ingress/Egress Simulation Tester| Testing Equipment | The True Body Weight Ingress/Egress Tester is a specialized machine designed to evaluate either a complete automotive seating system or individual ... |
 |

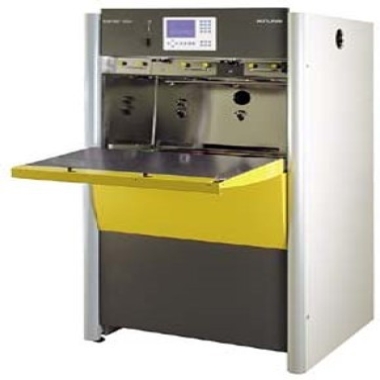

large xenon lamp weathering and photoaging tester | Qinsun SUNTEST XXL+is a large xenon lamp weathering and photoaging tester that complies with various ISO, ASTM, and ICH industry standards. The exp... |
 |
