Anti-scratch surface performance tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
The Surface Performance Tester is suitable for a broad range of surface property evaluations, including:
Textile Industry: Surface performance testing of fabrics, fibers, and nonwovens.
Paper Industry: Measurement of surface friction and roughness of various paper types.
Film Materials: Evaluation of friction and roughness of films and membrane-like samples.
Coatings: Assessment of surface friction properties of coated materials.
Polymeric Materials: Surface evaluation of engineering plastics and polymer sheets.
Surface Treatment: Comparison of friction and roughness before and after surface treatments.
Research Institutions and Universities: Study of material tribological properties and surface structures.
Quality Control: Inspection of raw materials and finished products to ensure consistency of surface properties.
Standards
The Surface Performance Tester complies with the following standards:
(1) GB/T 1804 – Test methods for surface friction of textiles
(2) GB/T 12915 – Friction testing of nonwoven fabrics
(3) GB/T 19392 – Friction coefficient testing of paper
(4) ISO 8295 – Determination of frictional properties of textiles
(5) ISO 25178 – Surface roughness measurement
(6) ASTM D1894 – Coefficient of friction of plastics
(7) JIS L 1096 – Friction properties of textiles
(8) ASTM D3354 – Surface friction properties of textiles
Parameters
| Parameter | Specification |
|---|---|
| Testing Methods | Friction measurement, surface roughness measurement, surface displacement measurement |
| Maximum Friction Force | 200 gf |
| Friction Force Accuracy | ±0.5% full scale |
| Surface Roughness Accuracy | ±1.0% full scale |
| Maximum Surface Displacement | 30 mm |
| Surface Displacement Accuracy | ±0.5% full scale |
| Surface Roughness Sensor | Differential transformer |
| Surface Displacement Sensor | Potentiometer |
| Measurement Speed | 1 mm/sec |
| Sensor Dimensions | Friction probe: 10 × 10 mm; Roughness probe: 5 mm width |
| Operating Environment | 20–30°C, 50–70% RH |
| Power Supply | AC 100 V, max 50 W (air compressor 100 W) |
| Dimensions (W × D × H) | 550 × 520 × 420 mm |
| Weight | 50 kg |
Accessories
(1) Main unit: Surface Performance Tester
(2) Friction sensor: Measures friction force and coefficient
(3) Roughness sensor: Measures surface roughness
(4) Displacement sensor: Measures surface displacement and deformation
(5) Optional pneumatic system: Provides additional load adjustment
(6) Optional air compressor: Supports air pressure requirements during testing
(7) Consumable probes: Interchangeable according to sample material or shape
Send product request
Other supplier products
 |
Simple PLC Suspension Impact Tester CE Certified | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Liquid crystal touch impact testing machine is mainly used for hard plastics ... |
 |
Automatic Liquid Dosing System for Textile Color Fastness ISO & AATCC Standards Manufacturer Direct | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Features User-friendly interface: Color touch screen with intuitive human-ma... |
 |
Safety Helmets Impact and Penetration Resistance Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard GB/T 2811-2019(China’s national standard for helmet safety and impact resis... |
 |
Wet Microbial Penetration Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com The wet microbial penetration tester is mainly used to evaluate the barrier ability of medi... |
 |
Liquid Spontaneous ignition point tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Product Description complies with GB/T 21860-2008 “Test Method for Autoignition Temp... |
Same products
 |

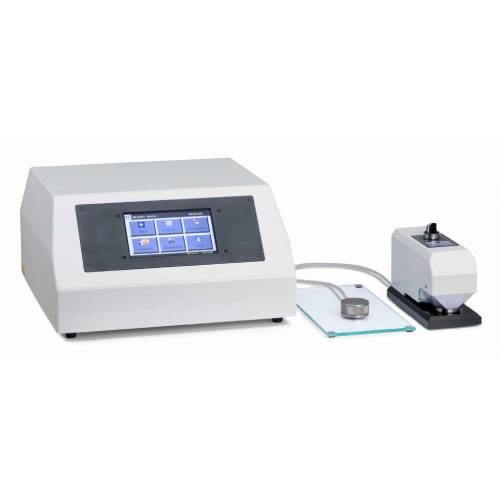

Paper roughness tester for quality control | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications Paper Roughness and Air Per... |
 |

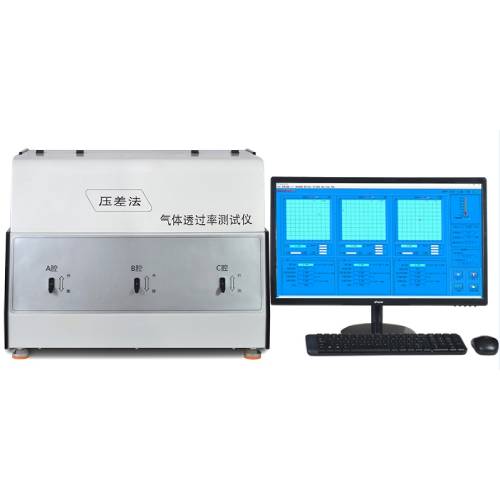

Gas transmission rate tester supplier | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications The Differential Pressure M... |
 |

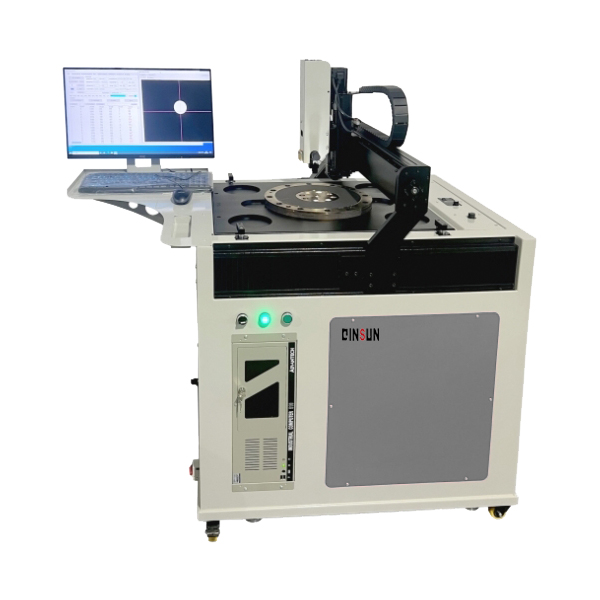

Fully automatic spinneret mirror inspection instrument | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Introduction ① Mechanical Components Ove... |
 |

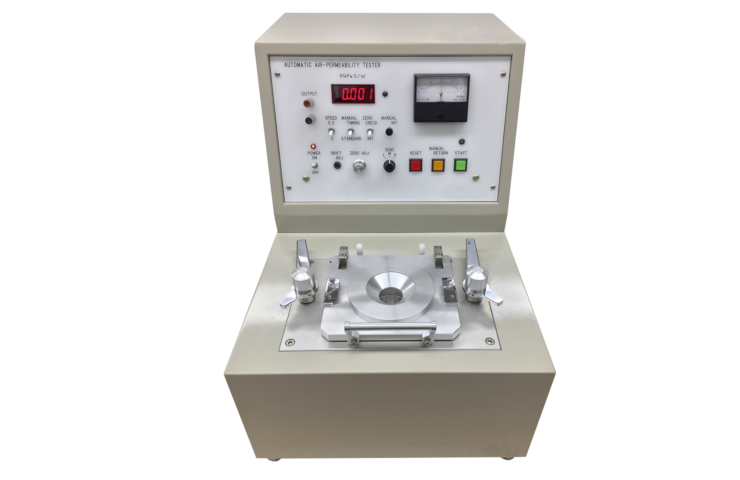

Advanced textile air permeability tester | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The Air Permeability Tester ... |
|
|
