Paper stiffness meter

Product Introduction:

ZY-TDY300 microcomputer bending stiffness tester is used to measure the bending stiffness of paper and cardboard materials with low gram weight. It is used to evaluate the stiffness and resilience of flexible materials. It can set the vertical and horizontal direction, tension size, test speed and bending Angle of the sample according to the test requirements. Mainly used to measure all kinds of paper, cardboard, film, plastic, wire, metal sheet and other composite materials bending stiffness test, the measurement range is :0——1000g(0——10000mN) suitable for paper packaging printing industry and related scientific research institutions and quality inspection departments.

Technical parameters:

1. Sample size :38*(70——200)mm

2. Actual measurement size :38*(1——50)mm

3. Test spacing :1mm, 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm

4. Span accuracy :±0.1mm

5. Measuring range :0——1000g(0——10000mN) can be customized

6. Sensor: The sensing accuracy is 0.1%

7. Resolution :0.01mN

8. Bending Angle :1——95° no pole adjustable

9. Multi-functional measurement: stiffness/folding Wolf stiffness dual system

10. Angular speed control :0.5——5°/sec adjustable

11. Angle accuracy :±0.1°

12. Measure the maximum thickness :(0.01——5.0)mm

13. Bending time :(2——50s)

14. Operation interface :7inch touch screen or button test

15. Signal output: Standard computer signal output, link computer (optional)

16. Print output: modular integrated thermal printer

17. Dimensions :320mm*320mm*300mm

18. Net weight :28kg


Send product request

To: Qinsun Instruments Co., LTD
Your E-mail:
Message text:


Send to other suppliers

Other supplier products

Whole shoe breathability and heat preservation testing machine
Whole shoe breathability and heat preservation testing machine Standard SATRA TM376: Thermal insulation testing of footwear with sock integration. SATRA TM386: Water vapor permeability assessment for athlet...

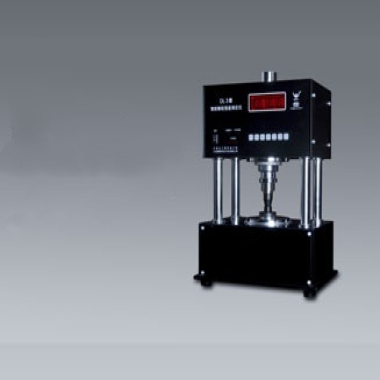

Particle Strength Test device
