BYMS Gravure Cylinder Grinding Machine
BYMS Gravure Cylinder Grinding Machine
BYMS gravure cylinder grinding machineapplies pneumatic pressing head unit, which keeps the pressure constant during the grinding process and ensures the consistency of the grinding effect. Compared with the similar production,our computer control program is more convenient. The grinding heads can find their working position from anywhere to avoid the unnecessary resetting time.
Main Technical Parameters
|
Model |
BYMS 1500 |
BYMS 2000 |
BYMS 2500 |
|
Cylinder diameter(mm) |
90-400 |
90-400 |
90-400 |
|
Cylinder length(mm) |
400-1500 |
400-2000 |
400-2500 |
|
Cylinder rotation speed (r/min) |
100-450 |
100-450 |
100-450 |
|
Grinding head to-and-fro speed (mm/min) |
100-1300 |
100-1300 |
100-1300 |
|
Grinding head rotation speed (r/min) |
100-450 |
100-450 |
100-450 |
|
Grinding head up/down speed(mm/min) |
560 |
560 |
560 |
|
Pressure adjustment range(kg) |
20-120 |
20-120 |
20-120 |
|
Dimension(L×W×H)(mm) |
3700×1600×2000 |
4200×1600×2000 |
4700×1600×2000 |
As a leadingmanufacturer of Copper Grinding Machines, we are dedicated to providing the highest quality products and services to our customers. Our machines are specifically designed for the production of gravure printing cylinders, and are capable of grinding copper, chrome, and with other material precision and efficiency.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Rolling Machine | Rolling Machine Rolling machineis a bending and correcting machine for sheet metal. It is specially used for the forming and bending sheet metal. ... |
 |

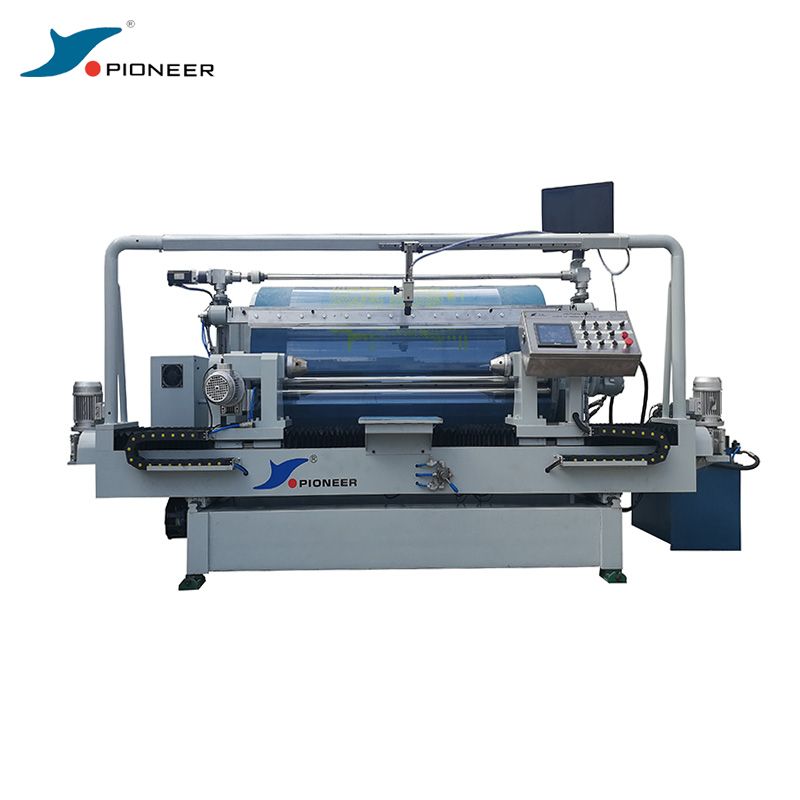

GP Gravure Cylinder Chrome Polishing Machine | GP Gravure Cylinder Chrome Polishing Machine GP Gravure Cylinder Chrome polishing machineis designed for polishing chrome layer of gravure cylinde... |
 |

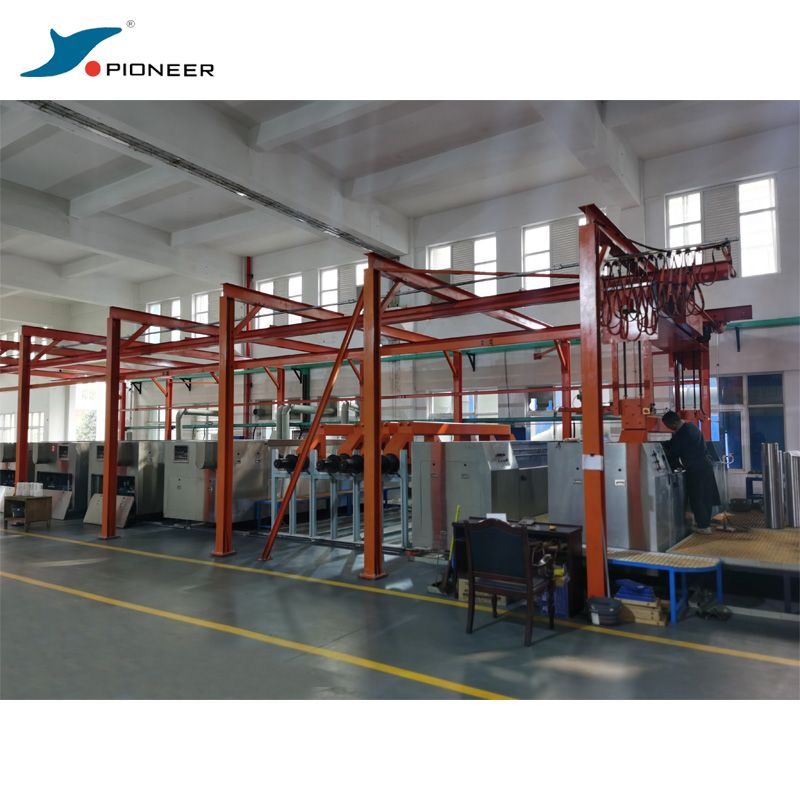

Automatic Plating Line | Automatic Plating Line AnAutomatic Plating Line, also known as an Automated Plating Line, is a production system that performs the plating process... |
|
|
