Cast Steel Floating Ball Valve

Product DetailsA floating ball valve is a valve with seats supported ball, which is pushed by upstream pressure towards the downstream seat to ensure sealing. This series of valves are usually used in service of low pressure (150~300LB) and wide temperature range (-190℃~ 500℃) . They are characterized by simple design, easy maintenance, low cost and quick delivery. This product line is used primarily in the Oil & Gas, Building and construction Industries, Chemical and Petrochemical services, among others.Applicable StandardDesign Standard: API 6D, ASME B16.34, API 608, BS 5351, DIN 3357, EN 12516 Face to Face: API 6D, ASME B16.10, EN 558-1End Connection: ASME B16.5, ASME B16.25, EN 1092-1Inspection and Test: API 6D, API 598, DIN 3230, EN 12266Products RangeSize: 1/2" ~ 10" (DN15 ~ DN250)Rating: ANSI 150lb, 300lb, 600lb (PN10-PN100)Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex SteelTrim: A105+ENP, F6a, F304, F316Operation: Lever, Gear, Electric, PneumaticDesign FeaturesFull port or reduced portFloating ball designBlowout-proof stemFire safe design to API 607/ API 6FAAnti-static devices Cavity pressure self-reliefOptional locking device

Отправить запрос, связаться с поставщиком

Кому: JCIN VALVE CO., LTD
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Product Details:Check valves are generally used to protect pumps or similar equipment, allowing the flow only in one direction and preventing flow ...
Product Details:A floating ball valve is a valve with seats supported ball, which is pushed by upstream pressure towards the downstream seat to ens...

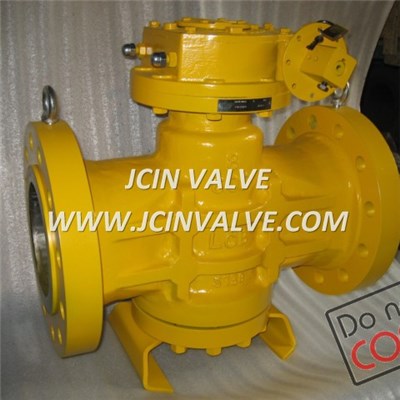

Product Details:Lubricated plug valves will be of inverted pressure balance type only and shall be used if the product allows the use of lubricant....
