Bean Bag Snag Tester
Все товары поставщика
Bean Bag Snag Tester, to determine the snagging and picking resistance of knitted and woven fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders. Bean Bag Snag Tester complies with ASTM D5362. JIS L1058. etc. Bean Bag Snag Tester measures fabric by snagging resistance.
Application:
Bean Bag Snag Tester, to determine the snagging and picking resistance of knitted and woven fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders.
The bean bag snagging tester provides with eight pinned bars, rotating at 20RPM for 100 revolutions. Provided with predetermined electronic counter.
Standards:
ASTM D5362 JIS L1058
Specifications:
Rotation speed: 20r/min
Work stations: 2
Size of cylinder: Dia. 200mm
Pinned bars: 8 pcs / Cylinder
Needles: 9 pcs / Pinned bar
Bean bag: 450 g
Weight: 60 kg
Power: 220/110 V,50/60 Hz,3 A
Width:480 mm
Depth:380 mm
Height: 390 mm
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

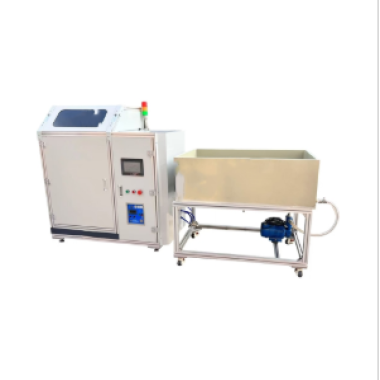

Resistance Tester for Molten Metal Droplet (Splash) Impact Performance/ | Product Information: This resistance tester for molten metal droplet (splash) impact performance is developed in accordance with testing standards... |
 |
