Circular Locus Pilling Tester
Все товары поставщика
Testing Standards:
GB/T 4802.1. JIG 040-1990
Product Information:
The Circular Locus Pilling Tester is used for determining the pilling and fuzzing of all kinds of fabrics to evaluable the product quality and process, such as wool, chemical fiber, mixed, kitted and woven fabrics. During the test, fabric is rubbed against a nylon brush and abrasive, or only against an abrasive under controlled conditions.
Technical Parameters:
1.Contact gap between abrasive assembly and abrasive platform: ≤0.2mm;
2.Parallelism of grinding head and grind plane: ≤0.3mm;
3.Moving locus:￠40mm circle track moving;
4.Nylon brush with paralleled surface, the altitude difference: <0.5mm;
5.Reciprocating speed of abrasive platform: 60±1r/min;
6.Weight of grinding head: 490cN±1%;
7.Weight of larger loading weight/pieces: 290cN±1%;
8.Weight of little loading weight/pieces: 100cN±1%;
9.Times of options: 1～9999;
10.Meet the requirements of standard tests.
| SAMPLE TYPES | Pressure/cNF | Fuzzing No. | Pilling No. |
|---|---|---|---|
| Chemical fiber knitted fabric | 590 | 150 | 150 |
| Chemical fiber woven fabric | 590 | 50 | 50 |
| Military uniform (combing blended) | 490 | 30 | 50 |
| Combed wool fabric | 780 | 0 | 0 |
| Carded wool fabric | 490 | 0 | 50 |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Leather thickness tester | Product Introduction: The Leather Thickness Tester boasts an impressive measuring range of 0 to 4 mm, with a division value of 0.001 mm, allowing ... |
 |
Micro Controll High-temperature Friction Tester | Main Purposes The microcomputer - controlled high - temperature friction testing machine is a device specifically designed for testing the frictio... |
 |
5kN Universal Testing Machine ISO13934-1 ASTM D5587 | This series of testing machines realizes the automatic control of the test process, data acquisition and analysis through the computer, and realize... |
 |
Automotive Interior Materials Droplet Characteristics Tester | Standards: 1. 1995L0028-EN-01.01.2007-002.001-25 ( ANNEX V) Measurement method of melting properties. 2. NF P92-505 Dripping test with electrical ... |
 |
Bone Screw Static Torque Testing Machine | Standard YY/T 0591-2011: Chinese standard specifying torsion testing methods for intramedullary nails, including torque application, angular dis... |
Похожие товары
 |
Special measuring instrument for rebar profile GDC-L360-JX | Продавец: Diameter measurement system, Surface inspection system, Rebar measurement system | The special measuring instrument for rebar profileis used to precisely measure the shape and dime... |
 |
Diameter measuring equipment | Продавец: Diameter measurement system, Surface inspection system, Rebar measurement system | Diameter measuring equipment Diameter measuring equipment is used to accurately determine the di... |
 |
Hot rolled bar outer diameter measuring instrument GDC-J2400-JX | Продавец: Diameter measurement system, Surface inspection system, Rebar measurement system | Purpose:Real-time online inspection of geometric dimensions of high-speed wire rods, square steel... |
 |
UV Detector | Продавец: Xinsheng Pharmaceutical Instrument Co., Ltd | The ultraviolet-visible dual-wavelength detector features high sensitivity and a wide linear rang... |
 |

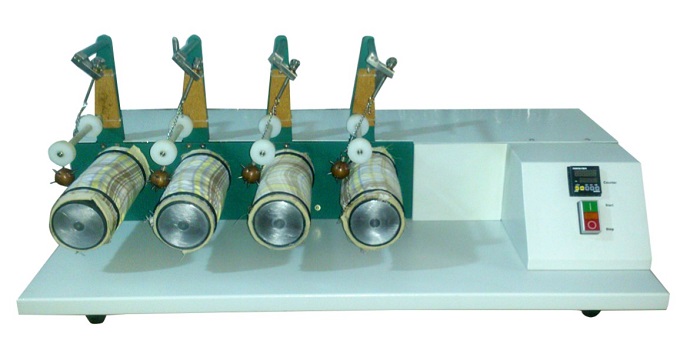

Fabric ici pilling and snagging box | Продавец: Шанхайская компания Qianshi Precision Electromechanical Technology Co., Ltd | Fabric ici pilling and snagging boxis composed of the same speed motor drive, and to maintain the... |
