Fabric Down-Proof Impact Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Fabric Down-Proof Impact Tester uses a controlled impact method to evaluate the anti-drilling performance of down-containing fabrics. The instrument simulates real-world compression shocks on sample bags filled with feathers or feather blends, providing quantitative data on fabric down retention and durability. It is widely used in quality control for down jackets, duvets, and other feather-filled products, ensuring compliance with industry standards for down-proof performance.
Application
This tester is ideal for evaluating all types of down products, including duvets, pillows, jackets, and other feather-filled textiles. By simulating repeated compression impacts, it helps manufacturers ensure the fabric prevents feather leakage and maintains product quality.
Standards
BS EN 12132-2 – Down and feather – Test methods – Impact method
FZ/T 43048-2018 – Down and feather products – Anti-drilling test
QB 1090-1991 – General testing requirements for down products
Feature
(1) Firm and stable steel frame structure ensures durability.
(2) Impact system with two plates: a fixed plate with one impact pin and a movable plate with three pins.
(3) Lower impact plate has three fixed impactors at 120° spacing; pins are 80mm long, 15mm diameter, rounded tip.
(4) Movable plate impact frequency controlled at 35 times/min via crank joystick mechanism.
(5) LED display with preset counter and automatic stop function after set impacts.
(6) Adjustable number of impacts from 1 to 99,999 for flexible testing cycles.
Technical Specifications
| Items | Parameters |
|---|---|
| Inclination angle | 20° |
| Impact frequency | 35 times/min |
| Impact stroke | 500 ± 5 mm |
| Impact needle | Φ15 mm × 80 mm |
| Number of impacts | 1–99,999 (adjustable) |
| Display mode | LED |
| Power supply | AC 220V, 50Hz, 180W |
| Exterior dimensions (L×W×H) | 1240 × 330 × 700 mm |
| Weight | 85 kg |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Stapler Blade Sharpness Tester | Get a quote： Web: qinsun-lab.com Email：serving@qinsun-lab。com The sharpness tester for stapler blades is mainly used to assess the sharpness of ... |
 |
Cantilever Fabric Stiffness Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Cantilever Fabric Stiffness Tester is a precision instrument designed to evalu... |
 |
Fabric UV resistance tester - lab instrument | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com It includes the closest spectral characteristics of... |
 |

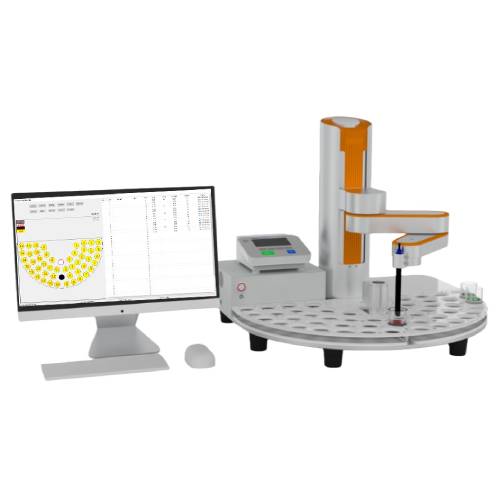

Automatic pH Tester ISO 3071 | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Fully Automatic pH Tester for Textiles and Leather Products is designed to aut... |
 |
