Toyota Specialized Abrasion Tester，ISO 5470，Abrasion Tester for Automotive Materials

The Toyota Specialized Abrasion Tester is designed to evaluate the abrasion resistance, color transfer, and surface durability of textiles, leather, plastics, and coatings. By applying controlled load, speed, and friction media, it simulates real-world wear caused by repeated rubbing, contact, or dragging. This tester supports material R&D, quality control, and batch inspection, ensuring durability and appearance retention in automotive, textile, and coated materials.

Application

Automotive OEMs (paint, coating, and trim durability)

Aerospace manufacturers (composite panel testing)

Medical device makers (biocompatible polymer wear)

Research universities (advanced material innovation)

Evaluate automotive interior materials such as leather, fabric, vinyl, and plastic trim for wear and colorfastness.

Test textiles for apparel, home furnishings, and decorative fabrics.

Assess natural and synthetic leather, as well as composite materials.

Perform durability testing on plastic sheets, thin films, and coated surfaces.

Evaluate carpets, pile fabrics, and decorative textiles.

Support materials R&D, incoming inspection, and mass-production quality control.

Standard

JIS L 0849 (Japanese Industrial Standard for Abrasion Resistance of Textiles)

ISO 5470-2 (Rubber- or Plastics-Coated Fabrics — Abrasion Resistance)

ASTM D4060 (Standard Test Method for Abrasion Resistance of Organic Coatings)

Product Advantages

Unmatched Precision

Proprietary load cell technology (±0.005 N accuracy) captures subtle wear patterns, critical for coated materials and thin films.

Extreme Durability

Aircraft-grade aluminum frame and corrosion-resistant components withstand 24/7 industrial use.

Smart Automation

AI-driven test protocols adjust speed, pressure, and cycles in real time based on material feedback.

Universal Testing Capability

Handles substrates from ultra-thin polymers (10 µm) to reinforced composites (10 mm thickness).

Global Compliance

Pre-loaded JIS, ISO, and ASTM test modes with automatic report generation in 8 languages.

Product Features

Testing Modes

Rotary Abrasion: 1–200 RPM for flat surfaces (e.g., coatings, films).

Reciprocating Abrasion: 10–50 mm stroke for seams, edges, and 3D geometries.

Custom Waveforms: Programmable motion profiles for simulated real-world wear (e.g., gear teeth, bearing surfaces).

Real-Time Analytics

4K camera system (120 FPS) with AI-powered fuzz/pill detection and surface roughness mapping.

Data Ecosystem

Cloud-connected software stores 100.000+ test results, predicts wear life, and integrates with ERP/MES systems.

Safety & Sustainability

Low-energy mode (50% power reduction), self-cleaning chamber, and CE/UL/RoHS certification.

Technical Parameters

Parameter	Specification
Load Cell Capacity	0–100 N (±0.005 N accuracy)
Speed Range	1–200 RPM (rotary) / 10–50 mm/s (reciprocating)
Stroke Length	10–50 mm (±0.01 mm resolution)
Test Stations	1 (expandable to 3 with optional kit)
Dimensions (L×W×H)	900×700×1.600 mm
Weight	350 kg
Operating Environment	5–40°C, ≤85% RH (non-condensing)
Power Supply	220V/110V AC, 50/60Hz, 3.2kW

Accessories

Abrasive Kits

5× precision-ground steel wheels (for TABER®-equivalent testing).

10× sandpaper discs (P80–P2500 grit).

Calibration Tools

JIS/ISO-certified reference block, load cell verifier, and traceable certificate.

Sample Fixtures

Pneumatic clamps for flat/curved specimens, vacuum chuck for thin films.

Software Suite

AI analytics platform with wear simulation, ERP integration, and 8-language report generator.

Safety Bundle

Emergency stop, acoustic enclosure, and fume extraction port.

Test Procedures

Cut specimens according to standard requirements and perform any necessary pre-treatment.

Mount specimens in the clamps and apply prescribed elongation.

Install the appropriate friction head and friction media according to the standard.

Set the number of cycles and operating speed.

Start the test and monitor operation until completion.

Remove specimens after testing.

Evaluate the wear, color transfer, and surface changes under specified lighting conditions.

Record results and generate test reports.

Другие товары поставщика

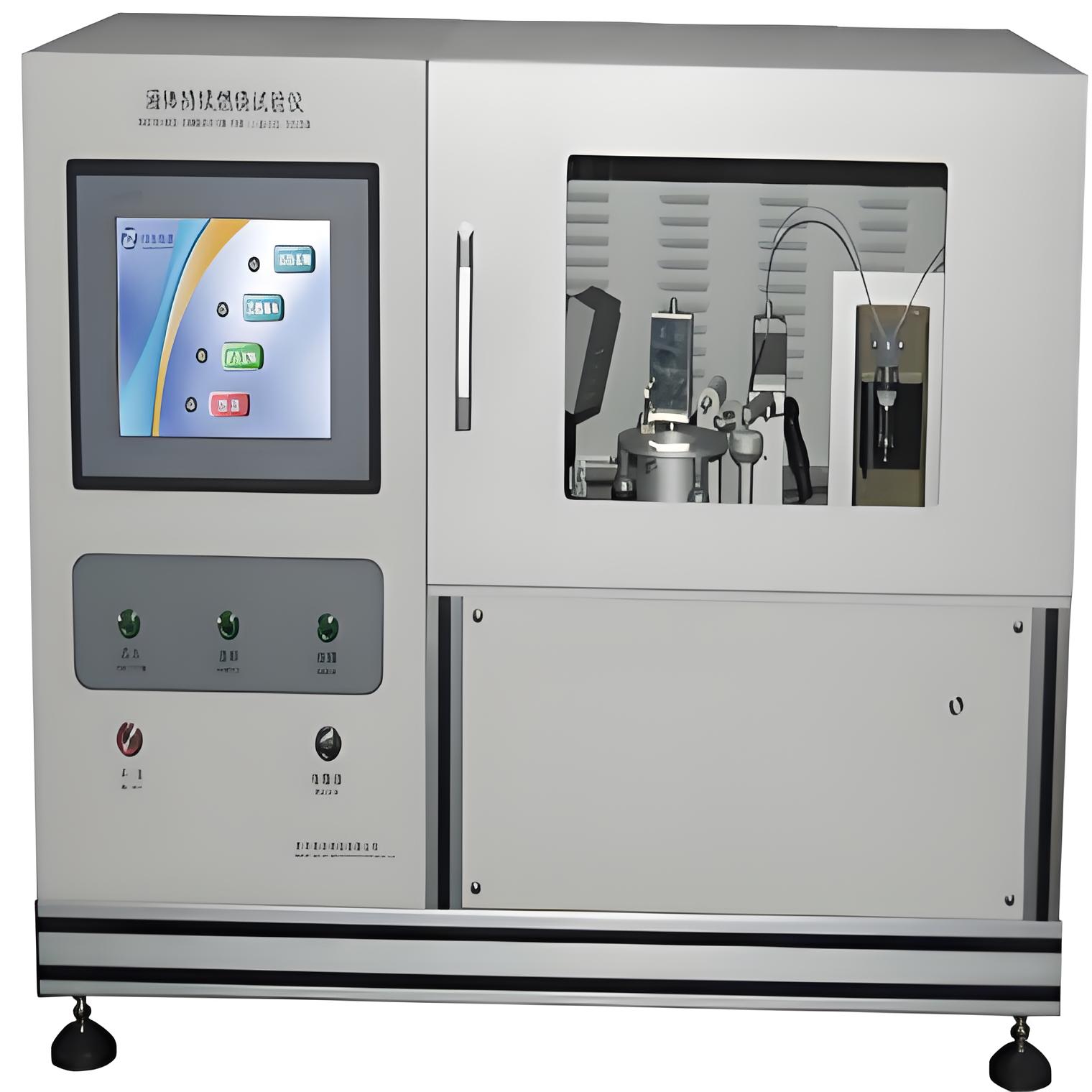

	Flame Durability Testing Machine,Continuous Burning Time Tester for Liquids,ISO 9038	Introduction When the hazardous liquid is heated to 0.5 ºC and 75 ºC, flame durability tester is used to evaluate the continuous burning...
