Scratch tester （KK01，KK02，KK03）
Get a quote：
Whats/App: +86 181 0160 0864
Web: gellowen.co.uk
The Scratch Resistance Tester (KK01 / KK02 / KK03) is designed to evaluate the scratch resistance of plastics, films, coatings, and automotive interior and exterior materials. By applying a vertically loaded scratch stylus and moving it horizontally across the sample surface, you can quantitatively assess scratch characteristics. This helps you understand surface durability, optimize material selection, and improve product appearance and service life.
Application
You can use this tester for the following applications and test materials:
Scratch resistance evaluation of plastic molded products
Scratch property testing of film materials
Surface scratch performance assessment of coatings, paints, and sprayed materials
Scratch resistance testing of automotive interior and exterior components
Scratch durability testing of optical materials, packaging materials, and electronic housings
Scratch damage analysis during material research, development, and quality control
Standards
The tester complies with the following international standards:
ISO 19252 — Plastics — Determination of scratch resistance of plastics and coated plastics by progressive load test
ASTM D7027-05 — Standard Test Method for Instrumented Indentation Test for Plastics (Scratch Resistance Test)
Parameters
| Parameter | KK-01 | KK-02 | KK-03 |
|---|---|---|---|
| Dimensions (mm) | W965 × D530 × H690 | W545 × D455 × H680 | W545 × D455 × H680 |
| Weight | 150 kg | 65 kg | 150 kg |
| Power supply | AC 100 V | AC 100 V | AC 100 V |
| Maximum power consumption | 60 W | 60 W | 60 W |
| Operating environment | 10–40 ℃, 30–70 %RH, non-condensing | Same as left | Same as left |
| Test method | Progressive load method | Progressive load method | Progressive load method |
| Scratch direction | Left → Right | Left → Right | Left → Right |
| Vertical load range | 1–200 N | 1–50 N | 0.1–5 N |
| Horizontal load | Max. 200 N | 50 N | 5 N |
| Scratch distance | Max. 400 mm | Max. 400 mm | Max. 400 mm |
| Scratch speed | 1–400 mm/s | 1–200 mm/s | 1–200 mm/s |
| Scratch depth detection | Laser displacement sensor | Laser displacement sensor | Laser displacement sensor |
| Sample size | 200 × 420 mm, thickness ≤ 5 mm | Same as left | Same as left |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Absorbable Bone - connecting Plates Four - point Bending Tester | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Absorbable Bone-connecting Plates Four-point Bending Tester is a specialized t... |
 |

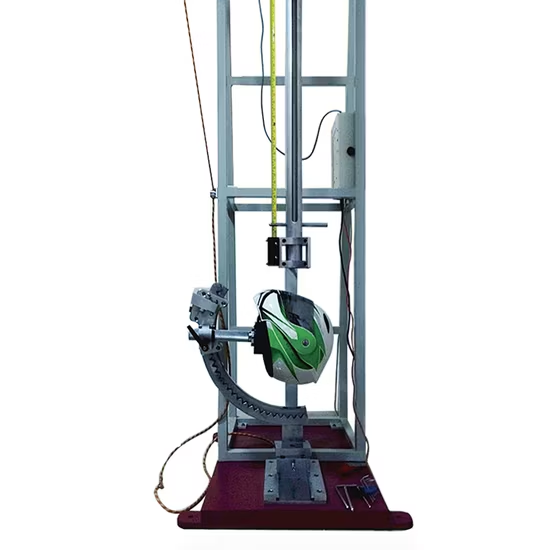

Helmet Fixed-Point Protection Area Testing Equipment | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Helmet Fixed-Point Protection Area Testing Equipment is a specialized device u... |
 |
