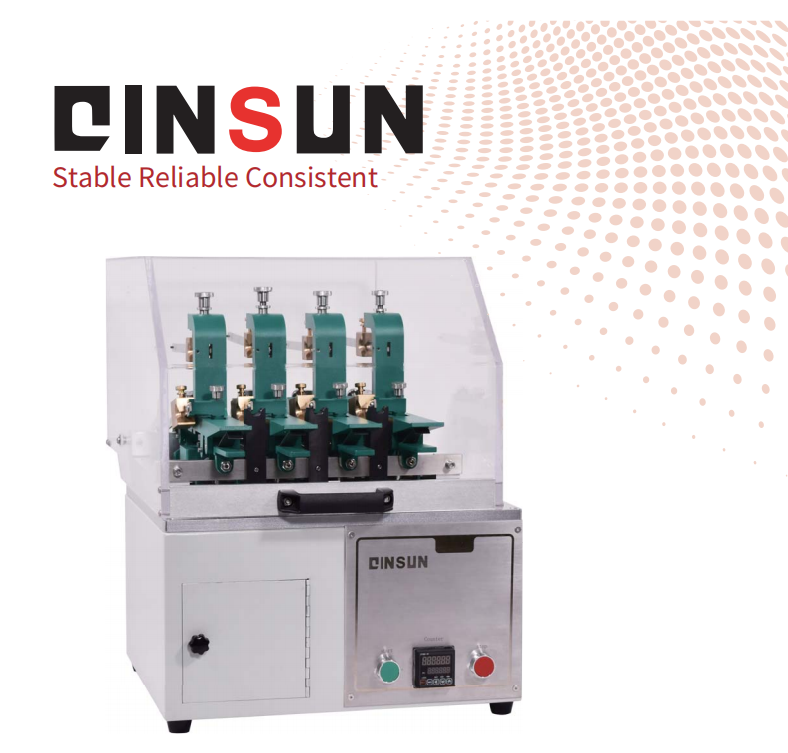

Scott Flex Tester | Paper Folding Endurance Testing Machine Manufacturer
Get a quote：
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Features
(1) Controlled Flexing Motion: Both ends of the sample are held in clamping fixtures and flexed back and forth under adjustable stroke and pressure.
(2) Customizable Test Parameters: Stroke length, number of cycles, and applied pressure can be precisely controlled.
(3) Multiple Sample Testing: Supports testing of several samples simultaneously for efficiency.
(4) Objective Assessment: Evaluates damage after a set number of cycles or determines cycles to failure.
(5) Robust Construction: Suitable for repetitive testing with long-term durability.
(6) Cycle Counter: Built-in counter records the number of flexing cycles performed.
Technical Parameters
| Parameter | Specification |
|---|---|
| Specimen Load | 200 – 2000 g |
| Clamp Width | 45 mm |
| Clamp Spacing | ~50 mm (adjustable) |
| Test Speed | 120 cycles/min |
| Test Stroke | ~60 mm (adjustable) |
| Power Supply | 220 V, 50 Hz |
| Machine Dimensions (L × W × H) | 450 × 370 × 500 mm |
| Machine Weight | 60 kg |
Accessories
(1) Standard specimen laser cutter – 1 set
(2) Product manuals – 1 set
(3) CNAS-accredited calibration report – 1 set
Test Procedures
(1) Secure one end of the specimen in the left clamp and the other end in the right clamp.
(2) Set the desired stroke length, applied pressure, and number of flexing cycles.
(3) Start the machine to induce controlled back-and-forth bending on the specimen.
(4) Observe and record any visible damage or changes in the material after the set number of cycles.
(5) Analyze the results to determine material durability and compliance with flexing resistance standards.
Maintenance Information
(1) Regularly clean the clamps and flexing mechanism to remove dust and debris.
(2) Check the alignment and condition of clamping fixtures before each test.
(3) Lubricate moving parts periodically according to manufacturer guidelines.
(4) Store the machine in a dry, dust-free environment to prevent corrosion.
(5) Perform periodic calibration to ensure compliance with testing standards.
