Foam Aerosol Flammability Tester
Get a quote：
Whats/App: +86 181 0160 0864
Web: gellowen.co.uk
The Foam Aerosol Flammability Tester is a device used to assess the flammability of foam aerosols. It evaluates how easily aerosolized foam products can ignite and sustain combustion under controlled test conditions, ensuring compliance with safety and regulatory standards.
Product Description
This tester is used to evaluate the flammability of aerosols discharged as foam, gel, or paste.
Scope of Application and Standards
The Foam Aerosol Flammability Tester is designed to assess the flammability of aerosols discharged as foam, gel, or paste.
Complies with domestic standards:
Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria, Section 31.6: Flammability Test of Aerosol Foam
GB/T 21632-2008: Methods for Testing Flammability of Hazardous Aerosol Foam Products
Technical Parameters
| Parameter | Specification |
|---|---|
| Working Environment | 5℃–40℃, <85% RH |
| Flame Height Detection Range | 0–235 mm |
| Flame Height Detection Resolution | 5 mm |
| Combustion Detection Response Time | ≤6 ms |
| Ambient Temperature Measurement Range | -10℃ to +60℃ |
| Ambient Temperature Measurement Accuracy | ±0.5℃ |
| Ambient Humidity Measurement Range | 5–95% RH |
| Ambient Humidity Measurement Accuracy | ±5.0% RH |
| Ignition Method | Ignition gun |
| Supported Glass Size | Ф150 mm |
Functional Features
Embedded processor with Windows CE operating system.
8-inch LCD touchscreen for real-time test status display.
High-sensitivity photoelectric detection technology to measure flame duration and maximum flame height.
Layered structure design to eliminate background light interference, suitable for evaluating flame height of irregular shapes.
Automatic flame height determination ensures accurate data.
Real-time animated display of the test process.
Equipped with high-precision temperature and humidity module for real-time monitoring of test environment conditions, ensuring stable results.
Fully automated testing process without manual intervention, supporting parameter setting, data storage, and report viewing functions.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

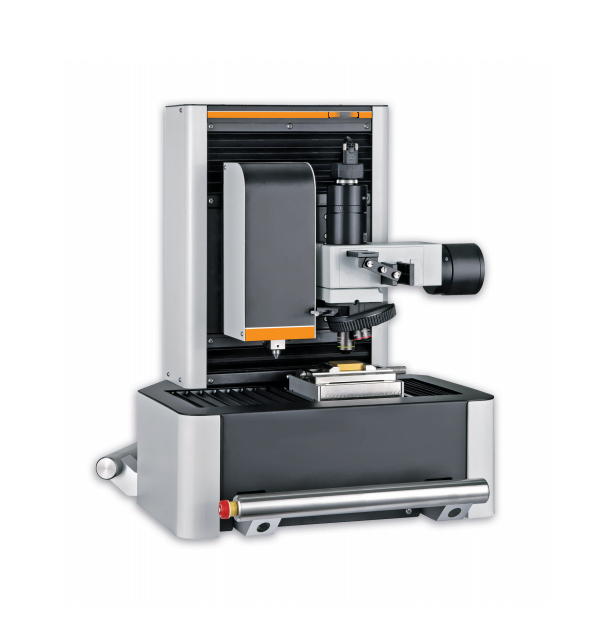

Automatic Scratch Test machine | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Automatic Scratch Test Machine is a precision testing instrument designed to e... |
 |
