Materials Thermal Ageing Test Oven Machine for Aerospace Products

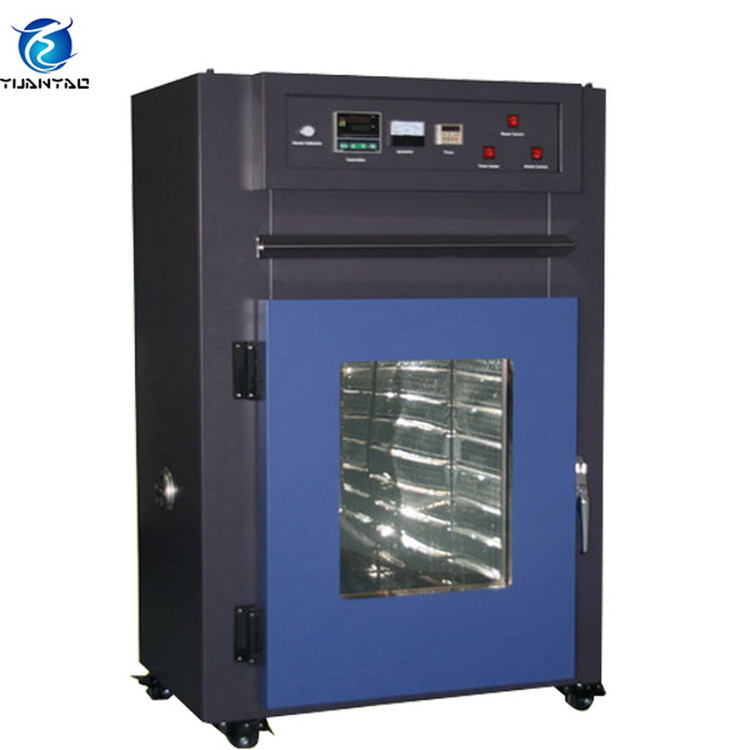

Materials Thermal Ageing Test Oven
Brief introduction & application:
Materials Thermal Ageing Test Oven is widely used to test materials performance in high temperature test condition. It is widely applied to Circuit boards, electronic component, photoelectric device, electroplating metal, plastic chemical industry, printing industry, processing coating, ceramic glass and transformer, inductance coil, motor coil baking, drying, aging, etc
Main features:
1. Microcomputer electronic digital control, high precision & reliability.
2. High temperature endurance & non-aging.
3. Observation view window, easy operation.
4. Forced circulation air, the temperature rise fast, even distribution.
5. PID control, double overheating protection, safety and reliability.
6. Two groups of moving plates can be adjusted height. 9 Best after sales service: One year free parts maintenance.
7. Meet international test standards.
8. Customization is available & welcomed.
Technical parameters: Please refer to the technical specifiation sheet as attached below.
In addition to Materials Thermal Ageing Test Oven, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester, ect.
Other styles with different configurations are also avaiable upon request, welcome to enquire and contact us anytime!
| Technical Specifications |
| MODEL |
YPO-072 |
YPO-270 |
YPO-480 |
YOP-600 |
YPO-720 |
| Internal Sim.WHD(mm) |
450×400×400 |
600×900×500 |
800×1000×600 |
1000×1000×600 |
1200×1000×600 |
| External Dim.W×H×D(mm) |
750×1200×550 |
1050×1650×740 |
1200×1700×840 |
1400×1750×840 |
1750×1750×840 |
| Temp.Range |
Room Temp.+10ºC---+200ºC(300ºC) |
| Ferformance |
Temp.&Humi,Constancy |
±0.3ºC |
| Temp.&Humi,Constancy |
±0.1ºC AT 200ºC;±1.5% AT 300ºC |
| Indication Resolution |
0.1ºC/1ºC |
| Heat-up Time( min.) |
Approx.60min. |
| Material |
Exterior |
Iron Sheet+Baked Enamel |
| Interior |
SUS#304 stainless steel piate |
| Insulation |
Fiberglass Wool |
| SYSTEMS |
Cirulation |
Circle Fen |
| Heating |
Chrome Steel Strip Wire Heater |
| Controller |
Electric Digital Control+S.S.R. |
| door |
Single-Wing |
Double-Wing |
| Other Components |
Environmental Control Indicator Lights, |
| Experiment Separation Shelves(2 pcs). |
| Sevey Devices |
Overheating Prevention Circuit breaker, |
| Control System,Breakdown Indicator Light. |
| Power Source[K.W.] |
AC 1Ψ 220V ; 3Ψ 380V 60/50Hz |
| Any requested size and working temperature range(max.1200ºC) can be customzied. |
![72L Table Lab Hot Air Drying Oven]()
![72L Table Lab Hot Air Drying Oven]()
![72L Table Lab Hot Air Drying Oven]()
![72L Table Lab Hot Air Drying Oven]()
![72L Table Lab Hot Air Drying Oven]()
![72L Table Lab Hot Air Drying Oven]()
