Floor castor abrasion testing machine
How it works:
The chair casters that can be moved and adjusted are controlled by the floor covering castor wear resistance tester. The resilient floor and laminated floor covering are placed on the test bench. The castor is started by the castor floor testing machine and acted on the resilient floor and laminated floor covering placed on the test bench. Stop automatically after the specified test time or number and take off the sample to see its change!
Meet the standard:
GB/T 11982.2, GB/T 4085, BS/EN 425, ISO 4918-2009
Technical parameters:
Host size: Length 1500mm* Width 1700mm*1620mm
Floor replacement base: 1350mm*1350mm（square, adjustable within this range）
Rotary diameter: 950mm
Total load load weight: 0-1500 lb （Note: 1 lb =0.4536 kg）
Rotary lifting distance: 400mm
Rotation speed adjustment range: 0-60 RPM, platform speed: （19±1）r/min, rotation （180±10）S after the platform stops and remains stationary （5±2）S, and then reverse operation.
Turntable counting range: <1 million times
Turntable tooling card number: 3
Wheel: Caster wheel diameter: ￠50±2mm, width 23±3mm, crank distance: 32±2mm
Wheel hardness: Shore A（95±5）mm
Distance from caster to platform: （198±1）mm
The distance between the three casters is: （130±1）mm, the spacing is 120°, and the installation distance between any two casters is: （225±5）mm
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Safety shoe impact testing machine | According to the criteria Bs-953.1870 EN-344. ANSI-Z41 CSA-Z195 ISO K88782 EN ISO 20344. ANSI-Z41 BS EN-344 CSA-ZI95 LD50-1994 AS/NZS 22... |
 |

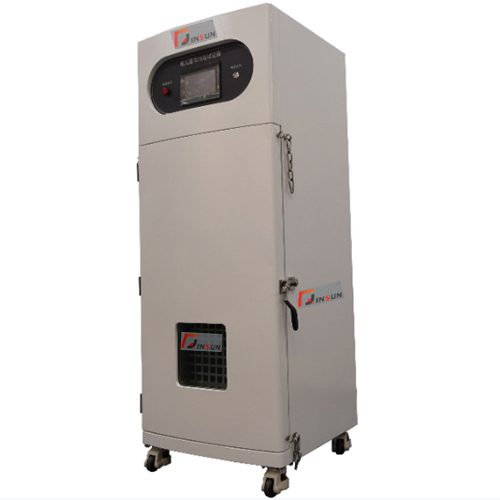

Battery impact tester | The test sample cell is placed on a flat surface with a 15.8±0.2mm（5/8 in） diameter rod placed in a cross position over the center of the ... |
 |
Textile Spray Rating Tester | spray water repellency testerSpray Rating Tester /Fabric surface waterproof performance tester is designed to determine the surface wetting resista... |
 |
Liquid Spontaneous ignition point tester | Product Description complies with GB/T 21860-2008 “Test Method for Autoignition Temperature of Liquid Chemicals” and ASTM E “Tes... |
 |

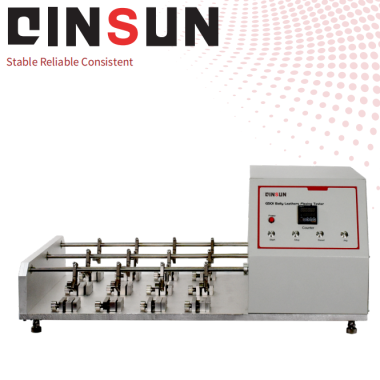

Leather flexural tester | Standards EN ISO 20344:6.6: Safety footwear leather flexing resistance. I.U.P.10+20/I.U.P.20: International Union of Leather Technologists prot... |
