Seam Fatigue Tester

•

Standards:

Toyota TSL5101G Section 3.7. GMW 3405. Nissan M-0154. Ford Motor Co. BN 106-02. TSL5100G Section 4.22

Applications:

The Seam Fatigue Tester is a two station bench top machine, used for evaluating fabric or leather seating materials resistance to tearing or needle hole elongation of a sewn seam. Each station includes a pair of suitable clamps for attaching the test sample. A set up gage is used to set the 140mm sample clamp separation for each station. One or two stations can be tested at a time.

Product Information:

The operator installs the set up gage between one pair of sample clamps on a station. The sewn test sample is aligned and clamped into position. The set up gage is removed and installed on the second station. The second sample is aligned and clamped into position and the set up gage is removed. The desired number of test cycles is entered on the cycle counter and the test is started. Once this cycle count is reached the machine will automatically stop. Test samples are visually evaluated.

Другие товары поставщика

	Oil-Water Separation Tester	Applicable Standards: (1)ISO/ TS 16332-2006 Diesel engine diesel filters Fuel Water Separation Efficiency Assessment Method. (2) ISO 4020-2001 Te...
	Tester for Shear Force and Friction of Protrusions on Helmet Surface	Tester for Shear Force and Friction of Protrusions on Helmet Surface - Material and Parts of Automotive - standard Standards: ECE R22.06, GB811...

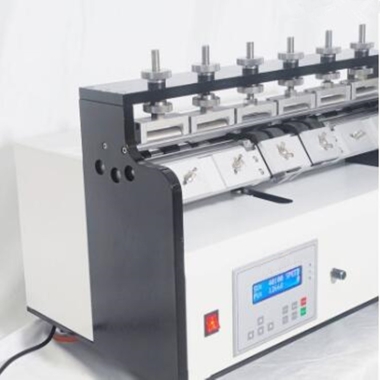

	ROSS zigzag tester	Product Introduction: The ROSS zigzag resistance tester installed the sole strip test piece on the ROSS zigzag test machine, so that the cut is di...
	Protective Clothing Against Acid and Alkali Tester	Protective Clothing Against Acid and Alkali Tester - Textile and Apparel - standard Standards: GB 24540-2009《protective clothing against liquid...

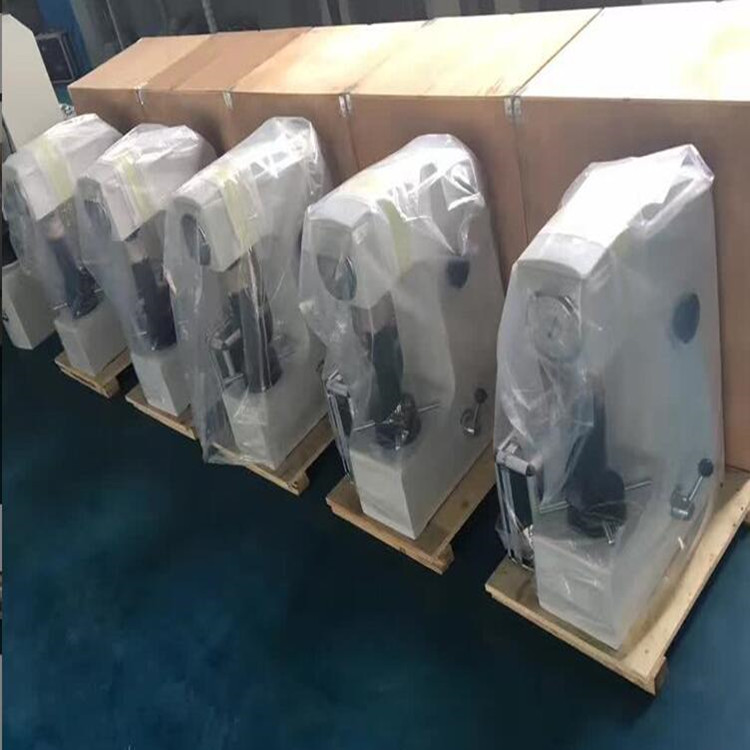

	Rockwell hardness tester	Product Information: Technical parameters: Initial test force: 3kgf （29.42N），10kgf （98.07N） Test force: 15kgf（147.1N），30kgf（294.2N），45kgf（441.3N...
