Steel wheel wear testing machine

Meet the standard:

GB/T3810.7-2016 "Wear resistance test method for unglazed brick"

ISO/DIS10545/6-94 "Unglazed brick resistance to deep wear test method"

GB/T12988-1009 "Inorganic floor material resistance test method"

Product Introduction:

The cycloidal pinwheel reducer has the advantages of large reduction ratio, compact structure, smooth transmission and adjustable abrasive flow rate, which can effectively save the amount of abrasive. The testing machine through the gear drive deceleration to steel wheel speed 75r/min, gear drive compared with the belt drive deceleration, smooth, no skid phenomenon, steel wheel rotation by the time relay control, the motor to the predetermined time is also transferred to the test requirements of the speed

The motor stops automatically. The testing machine has the characteristics of reasonable design, simple structure, beautiful appearance, easy operation, smooth rotation, automatic shutdown to meet the test requirements, etc., which is mainly suitable for wear resistance test of cement bricks.

Product Advantages:

Provides precise and repeatable wear resistance testing for a range of building materials.

Complies with key international and national standards, including GB/T3810.7. ISO 10545-6. and GB/T12988.

Features a cycloidal pinwheel reducer for smooth transmission, large reduction ratio, and adjustable abrasive flow rate, promoting abrasive saving.

Utilizes a gear drive deceleration system for stable rotation and no skidding, ensuring accurate test conditions.

Offers automatic shutdown based on time relay control, enhancing test efficiency and convenience.

Characterized by reasonable design, simple structure, aesthetic appearance, and ease of operation.

Capable of simulating long-term abrasive wear in a controlled laboratory setting.

Product Features:

Cycloidal Pinwheel Reducer: Provides efficient and stable speed reduction with a large ratio.

Gear Drive Deceleration System: Ensures smooth, non-skid transmission of power to the grinding wheel.

Steel Grinding Wheel: Two types available with specific dimensions (Diameter 200±0.2mm, Thickness 10±0.1mm or 70±0.1mm) and hardness (HB203-245 for the thicker wheel).

Time Relay Control: Precisely controls the rotation duration of the grinding wheel, enabling automatic shutdown.

Abrasive Feeding System: Includes a hopper with a volume greater than 5L and a mechanism for feeding abrasive at an adjustable flow rate.

Sample Loading Mechanism: Designed to securely hold samples of specified dimensions (100mm x 110mm) under defined loads.

Weight Sets: Includes two different weight sets (2.5kg for GB/T3810.7-2006 and 14kg for GB/T12988-91) to apply varying loads according to different standards.

Digital Display: For presetting and displaying test time.

Technical parameters:

Grinding wheel -: Diameter 200+0.2mm, thickness 10+0.1mm,

Grinding wheel 2: Diameter 200+0.2mm, thickness 70+0.1mm, hardness HB203-245

Grinding wheel speed :75+4r/min constant;

Sample size :100mm x 110mm;

Abrasive: Size is IS08486-1986 F80 white melt alumina:

Abrasive feed speed :（100+10）g/100r adjustable flow rate;

Hopper volume: greater than 5L:

Test time: preset, digital display;

Weight -: a mass of 2.5kg（for GB/T3810.7-2006）

Weight two: a mass of 14k（for GB/T12988-91）。

Overall dimensions :6000x580x130mm

Weight: About 150kg

Другие товары поставщика

	Roughness profiler	Product Introduction: The profiler is measured by the slip of the stylus of the instrument and the surface to be measured, and is a contact measur...
	AATCC Accelerotor ATCC 93 M&S P26	Standards: ATCC 93.M&S P26.M&S P53.NEXT 31 Applications: AATCC Accelerotor, to rapidly determine abrasion resistance of flexible materia...
	Nasal Oxygen Catheter Tester	Nasal Oxygen Catheter Tester - Other test instrument - standard Product Information: The Nasal Oxygen Tube Tester plays a crucial role in the med...
	Digital Fabric Thickness Gauge	Standards: Standards ASTM D1777 Standard test method for thickness of textile materials GB/T 3820 Determination of thickness of textiles and tex...

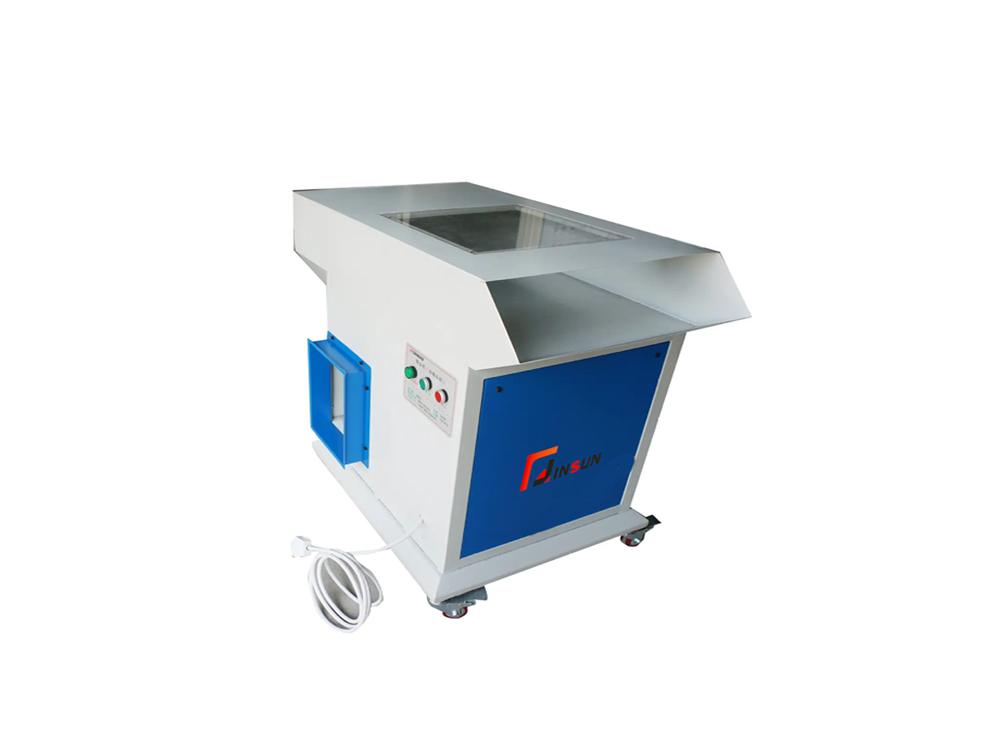

	Flat End Type of Thread EndSuction Machine	lt is applicable to clean up thread endand fibre dust (no static electricity) cutdown from garment. Function and features The machine is mini and...
