Creep testing machine with full incision/ Full-Notch Creep Tester / FNCT Creep Testing Machine
Производитель: Шанхайская компания Qianshi Precision Electromechanical Technology Co., Ltd
Все товары поставщика
Все товары поставщика
Standard
- ISO 16770: Exclusively designed for full-notch creep testing (FNCT) of thermoplastics under sustained stress.
- ASTM D2990: Configurable for tensile, compressive, and flexural creep testing of polymers and composites.
Product Advantages
1. Uncompromising Precision
- Independent 6-Zone Control: Each station operates with ±1% force accuracy (0–2,000N) and ±0.1°C temperature stability.
- Hybrid Loading System: Combines motorized force application with manual fine-tuning via touchscreen-guided weights.
2. Versatile Testing Environments
- Dual Bath Compatibility: Switch between water (up to 95°C) and oil (up to 150°C) baths for high-temperature polymer analysis.
- Expanded Force Capacity: Upgradeable to 4,000N max. load per station for heavy-duty applications.
3. Intelligent Monitoring
- Auto-Level Sensing: Real-time solution height detection prevents test interruptions from evaporation or leaks.
- Visual Alerts: Touchscreen displays color-coded status indicators for all stations.
4. Future-Ready Design
- Modular Architecture: Add stations or upgrade controllers without replacing the entire system.
- Multi-Language Interface: Operate in English, German, Chinese, or Spanish.
Product Features
- Precision Actuation:
- Servo-hydraulic loading with 0.001mm/min creep resolution.
- Manual override mode for delicate sample alignment.
- Advanced Thermal Management:
- Independent PID-controlled heating elements per station.
- Magnetic stirrers ensure uniform bath temperature (±0.2°C).
- Data Integrity:
- 100Hz sampling rate captures transient creep events.
- AES-256 encrypted data logging with timestamped audit trails.
- Ease of Use:
- 10.4” industrial touchscreen with gesture control.
- Pre-loaded ISO 16770 test protocols with customizable hold times.
Technical Parameters
| Specification | Details |
|---|---|
| Stations | 6 fully independent test positions |
| Force Range (per station) | 0–2,000N (standard) / 0–4,000N (optional) |
| Temperature Control | Water: 40–95°C |
| Force Accuracy | ±1% FS (0.5% with calibration kit) |
| Power Supply | 220V/50Hz (110V/60Hz available) |
| Bath Capacity | 15L per station (90L total) |
| Dimensions (W×D×H) | 1,800mm × 750mm × 1,650mm |
| Weight | 380 kg (net) |
Accessories & Options
- Test Media:
- High-temperature silicone oil (150°C max.)
- Deionized water reservoir with auto-refill.
- Sample Fixtures:
- Self-tightening grips for notched specimens (ISO 16770 compliant).
- Flat dog-bone clamps for ASTM D2990 testing.
- Software Bundle:
- CreepVision Pro™: AI-assisted strain analysis with Weibull modulus calculation.
- LabShare Cloud: Remote monitoring for up to 50 concurrent users.
- Calibration Kit:
- NIST-traceable force gauge and thermocouple set.
- Extended Warranty:
- 5-year comprehensive coverage for load cells and controllers.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

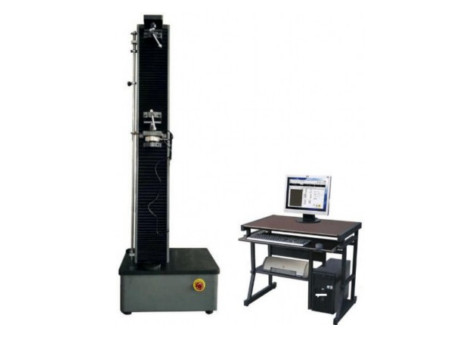

5kN Universal Testing Machine | Standards: 1. Test machine host 1 set, 2. 1 set of test control software, 3. 1 set of data acquisition card, 4. Stepper motor 1 set, 5. Decelera... |
 |
Strip evenness tester | Product Information: Cotton yarn fiber strip analyzer is a high performance, high test efficiency of textile laboratory instrument, it is used to ... |
 |
Static Tensile Tester ASTM D3107 | Standards: Standard Accordance with the requirements of the standards such as ASTM D3107 Applications: Static Tensile Tester isused for static t... |
 |
Safety shoe voltage tester | Product Information: The safety shoe voltage resistance tester is mainly used to test the voltage resistance of safety shoes under specified condi... |
 |

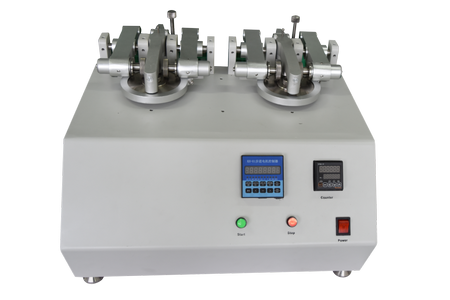

Taber Abrasion Tester (Double-Head) | Standards: 1. DIN 53754 Testing of plastics; determination of abrasion, abrasive disk method 2. DIN 53109 Testing of paper and board; determinat... |
