Horizontal Combustion Tester ISO 6941 Horizontal Burning Test Equipment
Product Overview
TheHorizontal Combustion Testeris a standardized instrument designed to evaluate the flame propagation characteristics of textiles, plastics, and composite materials under controlled horizontal flame exposure. It quantifies ignition resistance, flame spread rate, and self-extinguishing behavior in compliance with international fire safety standards.
Type: Horizontal flame propagation tester
Test Standards: ASTM D6413. ISO 6941. NFPA 701
Key Metrics:
Flame Spread Time (seconds)
Char Length (mm)
Afterflame Duration (seconds)
Sample Size: 610×1220mm (horizontal clamping)
Technical Specifications
| Parameter | Specifications |
|---|---|
| Burner Type | Propane gas burner (12mm ceramic nozzle) |
| Flame Height | 125±5mm (adjustable via gas flow) |
| Test Duration | 10–300 seconds (programmable) |
| Flame Propagation Sensor | High-speed thermal camera (120Hz) |
| Power Supply | 220V/50Hz, 2.5kW |
| Dimensions | 1500×800×1800mm (L×W×H) |
Key Features
Dual Test Modes:
Horizontal Test:Standard flame spread evaluation
Edge Stress Test:Simulates fabric edge ignition
Advanced Detection:
Real-time thermal imaging (°C gradient mapping)
AI-based flame front tracking
Automatic char length measurement (±1mm accuracy)
Automation:
Motorized burner positioning
Programmable gas flow control
Self-cleaning exhaust system
IV. Compliance Standards
ASTM D6413 (Vertical and horizontal flame propagation)
ISO 6941 (Textile flame spread rate)
NFPA 701 (Standard for flammability of draperies)
GB/T 5455 (Chinese textile combustion standard)
Applications
Textile Manufacturing:Certifying fabrics for public buildings
Interior Design:Evaluating drapery fire resistance
Fire Safety Departments:Compliance testing for hotels/hospitals
R&D:Developing flame-retardant coatings
Standard Operation Workflow:
Sample Preparation: Cut to size, clamp horizontally
Calibration: Reference fabric validation
Testing: Ignite burner at specified height/duration
Analysis: Generate flame spread velocity curves
Cleaning: Automated soot extraction system
Safety Precautions:
Fire-rated enclosure required (class A60)
PPE mandatory (heat-resistant gloves, goggles)
Fire extinguisher (Class B) must be on standby
* ISO 17025-accredited testing protocol * Multi-layer flame front analysis * Real-time audio-visual alarm system * Gas leak detection with auto-shutdown * Includes 5-year burner maintenance**Technical Highlights**- ±0.5s timing accuracy (NIST-traceable chronometer) - 360° thermal imaging coverage - Automatic gas pressure compensation - Touchscreen data export via USB/4G - OSHA-compliant emergency stop protocol
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Catheter Friction Tester | The Catheter Friction Tester is a precision instrument used to measure the surface friction properties of various tubular materials. Employing adva... |
 |
Heel impact fatigue testing machine丨Heel impact fatigue tester | Main uses: Heel impact fatigue testing machine is mainly used to test the continuous impact tolerance index of women's high heels, mid-heels and o... |
 |

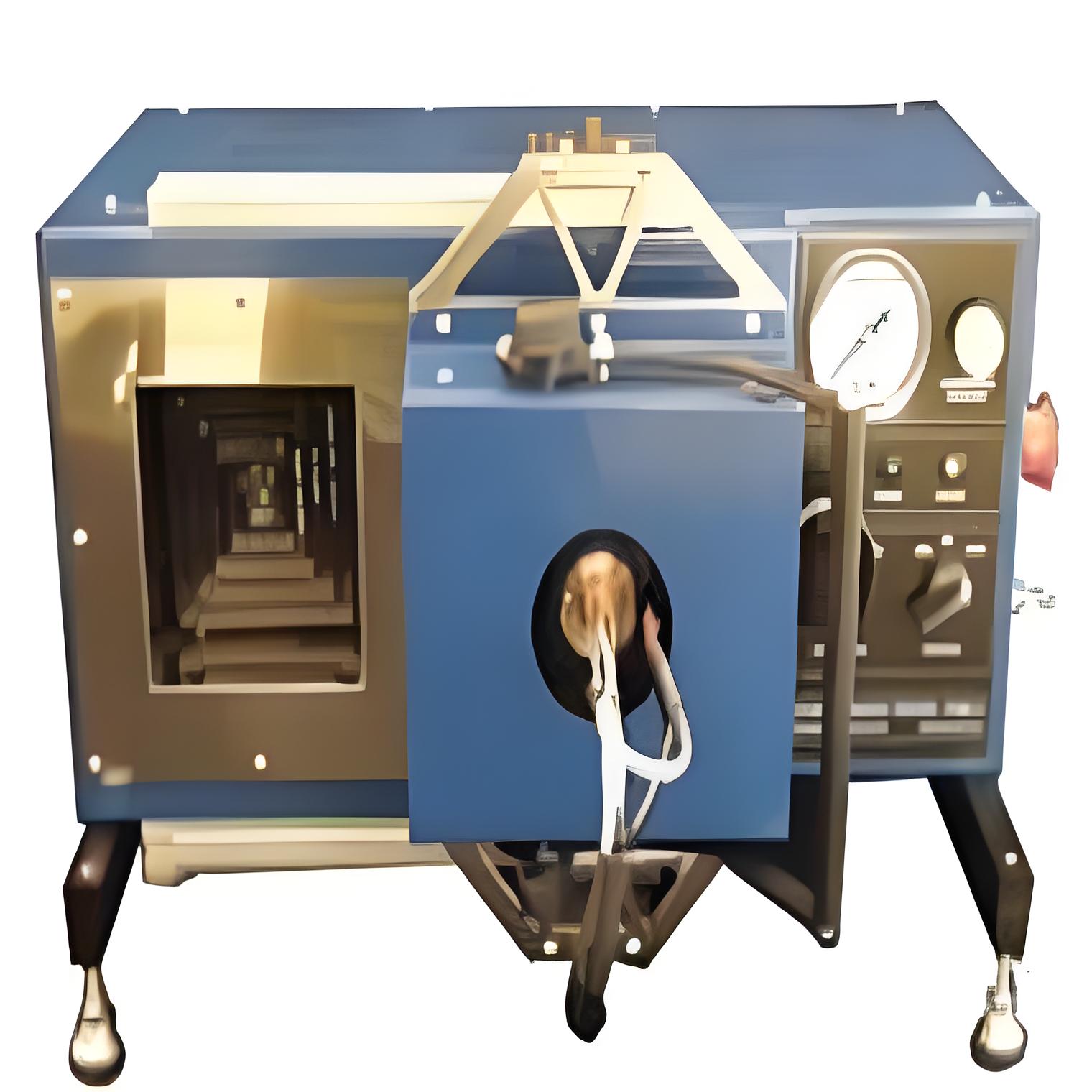

Heat Storage Performance Tester | Heat Storage Performance Tester provides standardized procedures and controls radiation heat conditions, providing repetitive measurement for heat ... |
 |
