Fabric Vertical Flame Spread Test Machine with ISO 6941

•

Products:

This machine is suitable for one-component or multi-component (coating, quilt, layered, laminated products, and similar combinations) of clothing, drapes, valance and large tents, including Arbor andcovertextile vertical flame spread properties determination. For evaluation under controlled conditions in the laboratory of material or combination of materials properties when exposed to flame.

Standards:

ISO 6941:2003

Main Features:

1. Electric wire ignition.

2. Burner automatic timing and positioning.

3. The ignition timing from 0 to 99.99 seconds set arbitrarily. Continued burning time and smoldering time, flame spread times are automaticallyrecorded,digital display.

Technical Specifications：

1. The ignition timing: 0 to 99.99 seconds set arbitrarily.

2. Continued burning time and smoldering time and flame spread timer: 0 ~ 99.99 seconds, accuracy: ± 0.01 seconds.

3. The flame height: 10~60mm adjustable.

4. The flame height measuring device: scale high 40mm.

5. Sample holder: high 560mm rectangular frame.

6. The use of gas: propane or butane gas industry.

7. Sample size: 560mm × 170mm.

Другие товары поставщика

	Solid Material Burning Rate Analyzer	Product Introduction This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 33.2.1.4 Test...
	Standard Helmet Visual Field Tester	The Standard Helmet Visual Field Tester is a precision instrument designed to evaluate the peripheral vision and visor obstruction of safety helmet...
	High Efficient Environmental Test Chamber 2 M Long UV Dryer Machine For Sheet Glass	Applications of environmental test chamber UV is the ultraviolet (Ultra-VioletRay) English abbreviation. Industrial UV wavelength to 200nm to 45...
	Weatherometer Laboratory Testing Equipment(UV)	Features and Benefits 1. UVA-340. UVB-313 and other UV lamps, a single power of 40 watts, can accurately control the irradiation intensity of 0.15...
	Rubber Mooney Viscosity meter	Test principle: The Mooney viscometer is used to measure the viscosity of rubber under specific conditions. In the test, the rubber sample was loa...

Похожие товары

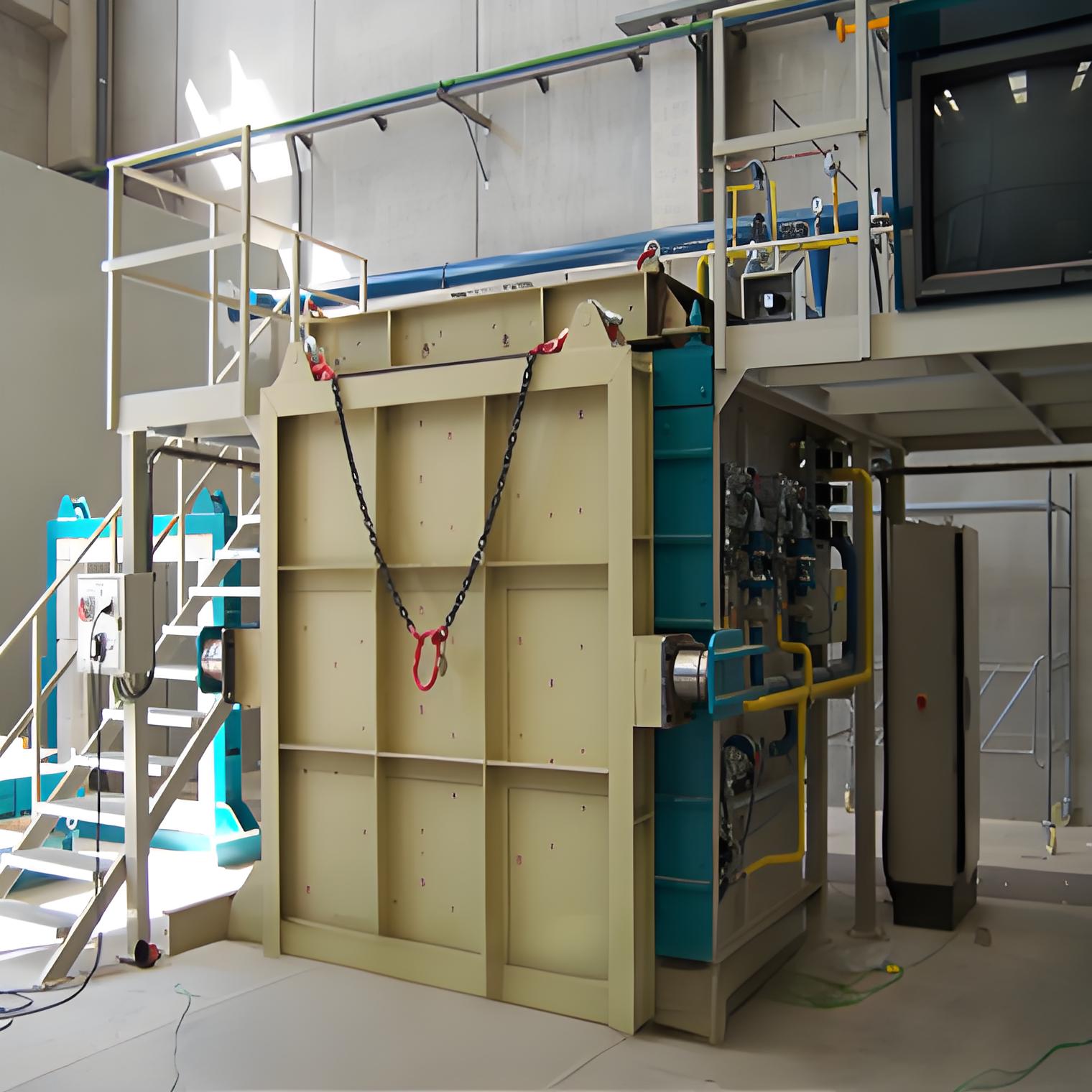

	Vertical Fire Testing Furnace，Vertical Flammability Chamber，ISO 834	Продавец: Standard International Group (HK) Limited	Description: Fire resistance performance of material provide important information for evaluatio...

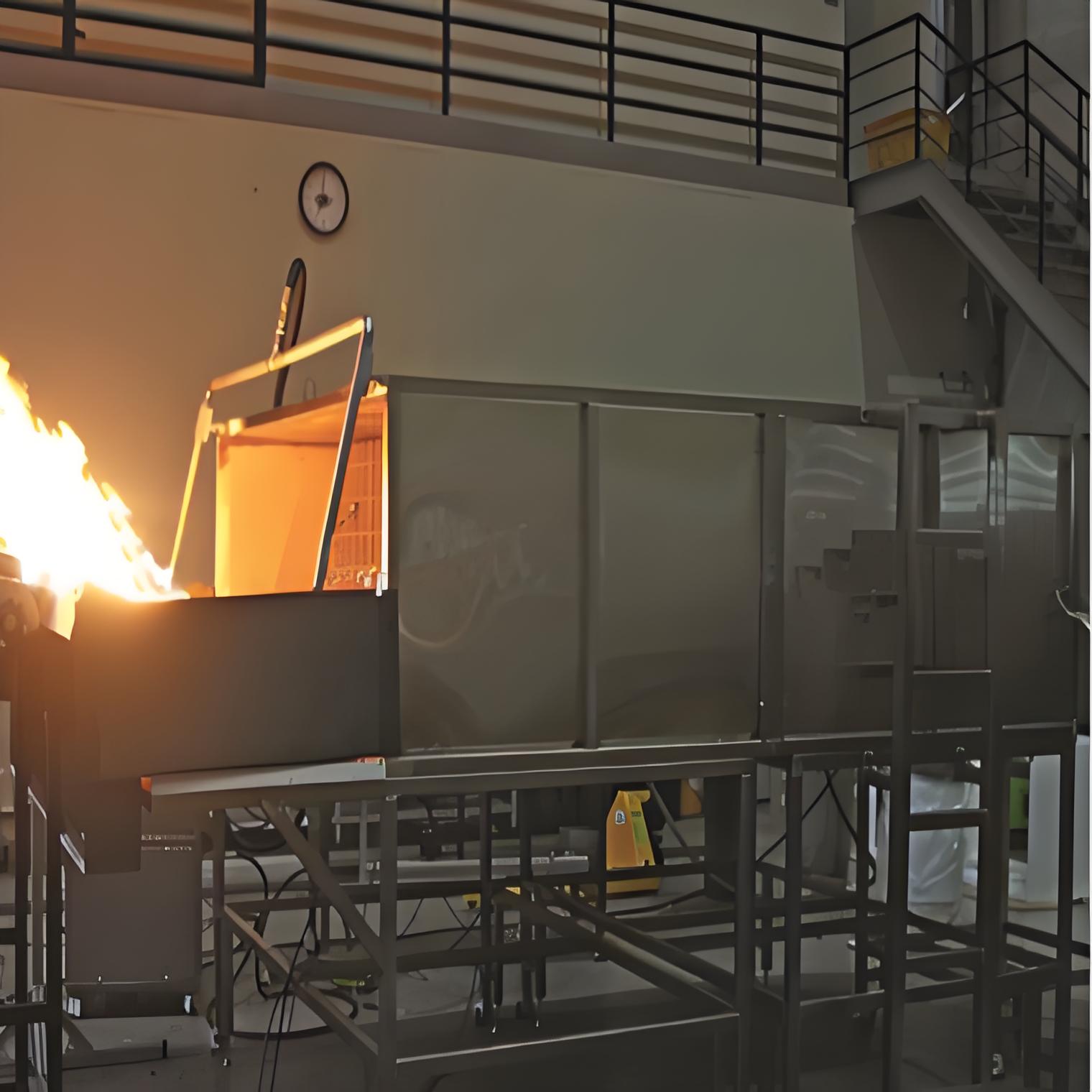

	Solar Cell Spread of Flame & Burning Brand Test Machine， IEC 61730	Продавец: Standard International Group (HK) Limited	Productintroduction: This apparatus is based on UL 1730. IEC 61730-2 design and development. Is ...
