Wire Fire Resistance Test Machine, IEC 60331， Fireproof Testing for Cable Insulation

Description:

Fire-resistant cable refers to the cable that can keep a safe running time in the case of flame combustion.

TESTECH Fire Resistance Tester is designed according to the requirements of IEC60331-11.and used to obtain the refractory characteristics of a fire resistant cable or optical cable under flame conditions.

Standards:

• IEC 60331 Part 11

• IEC 60331 Part 21

User' s Experience:

1. This cabinet is made of stainless steel, anti-smoke and gas corrosion.

2. The control system is designed with a high degree of automation, automatic ignition, temperature and time digital display, convenient to observe and record, stable and reliable.

Main Features:

1. All fixtures are made of stainless steel;

2. The burner is a belt type propane blowtorch with a Venturi mixer, and the burner nozzle is length 500mm, width 15mm;

3. Those burning holes are staggered into 3 rows, and the front width is 15mm, holes diameter is 1.32mm and these holes center distance is 3.2mm;

5. One end of the specimen holder is equipped with a clamp to fix the sample, and the other end is convenient for heat transfer along the longitudinal specimen;

6. The cable sample is supported by two metal rings, and the middle length of the two rings is about 300mm;

7. An inner diameter of the sample supporting metal rings is 150mm, and the cross-sectional diameter of the ring is 10 ± 2mm.

8. The position of the burner torch from burning the bottom is not less than 200mm, and not less than 300mm from the tank wall.

Combustion System:

1. Independent standard electrical control platform;

2. With intelligent detection function, when a short circuit in the sample during the test, automatic alarm and turn off the fire source.

3. Fuse current in the experimental circuit is 2A;

4. The sample is applied to power of AV 100V ~ 1000V adjustable;

5. The time can be set free for the fire, the time recommended by standards is 90min.

Device parameters:

1. Voltage: AC 380V 3-phase, 50 / 60Hz, 30A;

2. The input voltage 0 ~ 1000V; can be adjusted;

3. The breakdown current is 2A;

4. Maximum power: 5000VA;

5. Timer: 0 ~ 999min

6. The flame temperature of 0 ~ 1100 ºC adjustable;

7. The test load current is 0.25A, can be adjusted;

Specification:

Model	STD-IEC60331A
Size	1.600 (W) × 850 (D) × 1.650 (H) mm
Console Size	600 (W) × 750 (D) × 1.200 (H) mm
Power	AC 380V 3-phase, 50 / 60Hz, 30A
Weight	300kg
Manual	Supplied

Другие товары поставщика

	STD Lithium battery explosion test chamber	Introduction: Lithium battery combustion and explosion experiment chamber is mainly used for thermal runaway combustion and even explosion experim...
	Carpet Peel & Tuft Tester	Product Details For tufted carpets or traditional carpets, an important parameter is the retention performance of their tufts. Poor - quality car...
	Diaper impurity testing machine	The Diaper Impurity Testing Machine is designed for visual inspection of disposable diapers under controlled lighting conditions to detect residual...

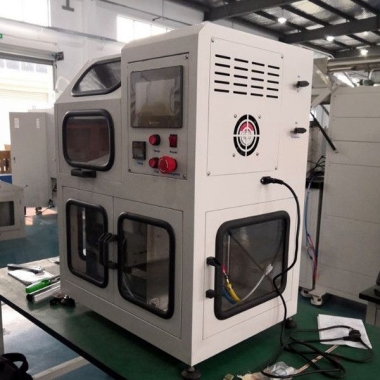

	Molten Metal Splash Resistance Test Equipment	Product Introduction： Projections of molten metal drops at a point on a vertical oriented test specimen and measurement of the number of the drops...
