Paper ring compression strength tester
Все товары поставщика
Paper ring compression strength tester - Other test instrument - standard
Product Introduction:
Intelligent cardboard edge compression strength tester, also known as computer measurement and control compression tester, cardboard compression tester, electronic compression tester, edge pressure meter, ring pressure meter, is the basic instrument for cardboard/paper compressive strength testing （that is, paper packaging testing instrument）， equipped with a variety of fixture accessories can test the ring compression strength of base paper, flat compression strength of cardboard, edge compression strength, bonding strength and other tests. In order to paper production enterprises to control production costs and improve product quality.
Implementation standards:
GB/T 2679.8-1995 "Determination of ring compression strength of paper and board"
GB/T 6546-1998 "Corrugated cardboard edge pressure strength determination"
GB/T 6548-1998 "Determination of the bonding strength of Corrugated cardboard"
GB/T 2679.6-1996 "Determination of flat compression strength of Corrugated base paper"
GB/T 22874 "Determination of flat compression strength of single-sided and single-corrugated cardboard"
Main parameters:
Measuring range: ≤2000N
Unit switching: N, kN, kgf, gf, lbf
Test speed: 12.5 2.5mm/min（or can be set according to customer requirements）
Disc size: 100X 100mm（can be customized according to customer requirements）
Upper and lower disc spacing: 80mm（can be customized according to customer requirements）
Volume （approx.） : 350X 400X 550mm
Power supply: AC220V+10%2A 50Hz
Weight: 65kg
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Scrub Abrasion and Washability Tester | Main uses: Dry and wet sand abrasive wear testing machine is mainly used to evaluate the wear resistance of materials in dry and wet sand abrasive... |
 |
Safety Helmet Impact Acceleration Tester/ Helmet Impact Testing Machine / helmet impact acceleration tester | Purpose This instrument is suitable for impact - collision tests of helmets. It is a testing instrument used to evaluate the impact - resistance p... |
 |

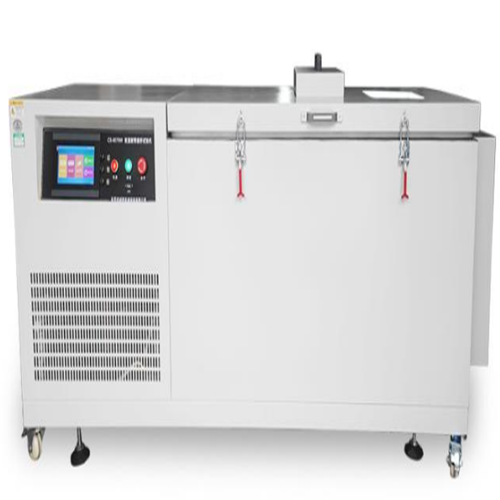

Footwear Cold Insulation Tester | Product Introduction: Shoes cold resistance testing machine is used to test finished shoes, rubber, sole, synthetic leather, plastic and other tes... |
 |
Zipper Slippage Tester | A Zipper Slippage Tester is a specialized instrument used to evaluate the resistance of a zipper to slippage under a specified tensile force. This ... |
 |
Safety Helmet High Temperature Pre-Treatment Chamber/ head protection thermal testing equipment / Helmet high temperature pre-treatment chamber | Main Purpose It is mainly used for the extremely high - temperature pre - treatment of safety helmets. Compliance Standard GB/T2812-2019 Te... |
Похожие товары
 |
Falling Sand Abrasion Test machine | Продавец: Standard International Group (HK) Limited | The sand abrasion tester is a specialized testing device used to evaluate the abrasion resistance... |
 |

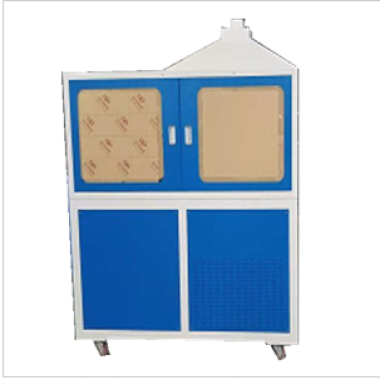

Conveyor Belt Drum Friction Testing Machine | Продавец: Standard International Group (HK) Limited | Main Purposes of Conveyor Belt Drum Friction Testing Machine The conveyor belt drum friction tes... |
 |
