Dental Implants Fatigue Tester

Standard

ISO 14801:2016: Specifies dynamic fatigue testing protocols for endosseous dental implants, including load ratios, frequency, and failure criteria.

YY/T 0521-2018 (China): Defines methodologies for evaluating the fatigue strength of dental implant-abutment complexes under cyclic loading.

Product Advantages

Electromagnetic Precision: Novel servo motor technology ensures backlash-free operation with 0.001 mm displacement resolution.

Biorelevant Simulation: Integrated 37°C water bath system replicates physiological conditions for in vitro corrosion testing.

Universal Fixturing: Adjustable angle clamps accommodate straight/angulated implants (0°–25° pre-set options).

High-Frequency Stability: 20 Hz operation with ±0.05% load accuracy across 2 million cycle tests.

Compact Design: Benchtop footprint (450 × 400 × 600 mm) suits laboratory environments.

Regulatory Compliance: Pre-loaded ISO 14801 protocols with automated data reporting for FDA/CE submissions.

Product Features

Electromagnetic Servo Actuator: 600 N dynamic load capacity with programmable R=0.1–10 ratios.

Dual Sensor System: 0.01 N resolution load cell + 0.001 mm LVDT displacement transducer.

Dynamic Load Control: 0.1–20 Hz frequency range with sine/square/random waveforms.

Thermal-Mechanical Bath: 37±0.5°C recirculating water system with anti-evaporation design.

High-Resolution Imaging: Built-in 2MP camera system for fretting corrosion analysis.

Safety Suite: Emergency stop, overload clutches, and water leak detection system.

Technical Parameters

Parameter	Specification
Max. Dynamic Load	±600 N (0.01 N resolution)
Frequency Range	0.1–20 Hz (0.01 Hz increments)
Load Ratio (R)	0.1–10 (adjustable)
Displacement Range	±5 mm (0.001 mm resolution)
Water Bath Temperature	37±0.5°C (PT1000 sensor)
Data Sampling Rate	10 kHz (synchronized across 8 channels)
Power Requirements	220V/110V ±10%, 50/60Hz, 1.200W
Dimensions (W×D×H)	450 × 400 × 600 mm
Weight	55 kg (net) / 65 kg (with water bath)
Noise Level	<55 dB (A-weighted)

Accessories

Dental Implant Fixture Kit:

Adjustable angle clamps (0°–25° pre-set options)

Self-centering abutment adapters (3.0–6.5 mm compatibility)

Thermal-Mechanical Bath:

10L capacity with recirculating pump

Corrosion-resistant titanium interior

FatigueMaster Pro Software:

Automated S-N curve generation and fatigue limit calculation

21 CFR Part 11-compliant audit trail with blockchain timestamping

Remote monitoring via iOS/Android app

Operator Kit:

Calibrated torque wrench set (0.1–10 Nm)

Implant alignment jigs (ISO 14801 compliant)

Calibration Bundle:

NIST-traceable force calibration weights

LVDT verification tool

Safety Kit:

Water leak detection system

Acoustic enclosure with 25 dB noise reduction

Другие товары поставщика

	Oxidizing Solids Test device	Product Description Conforms to UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 34.4.1 Test O.1: Test for ox...

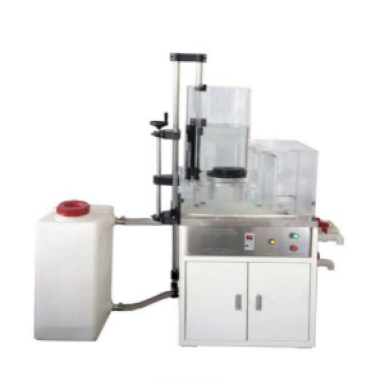

	Geosynthetics Vertical Penetration Tester	Scope of application: Used to determine the vertical permeability of geotextile and its related products under constant water head method. The wat...
