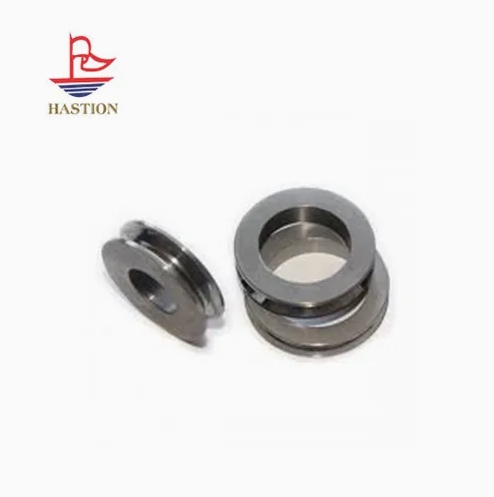

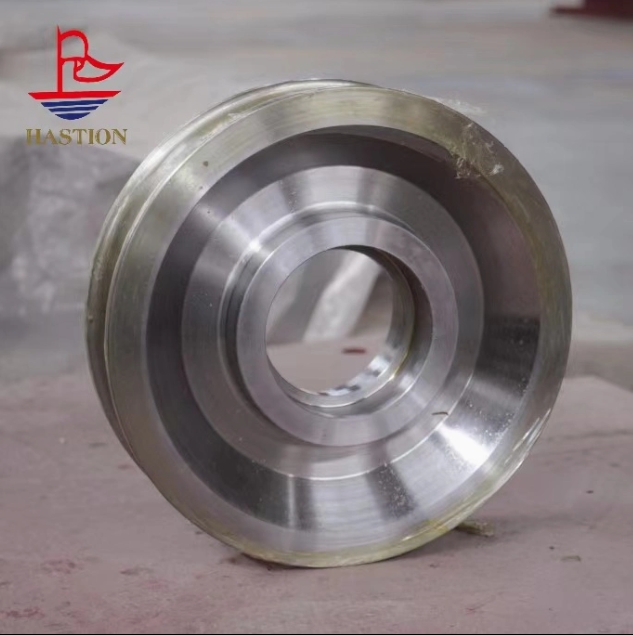

Titanium carbide guide wheels - hard alloy industry
This type of guide wheel has extremely strong corrosion resistance. It can be used for more than five years without rusting in a humid environment containing chloride ions (such as a factory by the sea), while traditional steel guide wheels can only be used for three months. Its internal structure is dense, with a porosity of less than 0.1%, which can effectively prevent coolant from seeping into the interior and causing cracking. During the copper tube drawing process, the friction coefficient between the guide wheel and the copper tube is as low as 0.08, which can reduce surface scratches on the copper tube and increase the finished product qualification rate from 85% to 99%. The hard alloy titanium carbide guide wheel has excellent thermal shock resistance. It will not crack when the temperature rises sharply from room temperature to 300℃ and then drops sharply back to room temperature, making it suitable for intermittent production conditions. The size range of guide wheels is wide, with diameters ranging from 50mm to 500mm and widths from 10mm to 100mm, which can be adapted to different types of drawing or rolling equipment. In the production of optical fibers and cables, it can precisely guide optical fibers, keeping the attenuation rate of optical fibers below 0.2dB/km and ensuring the quality of communication.
Отправить запрос, связаться с поставщиком
