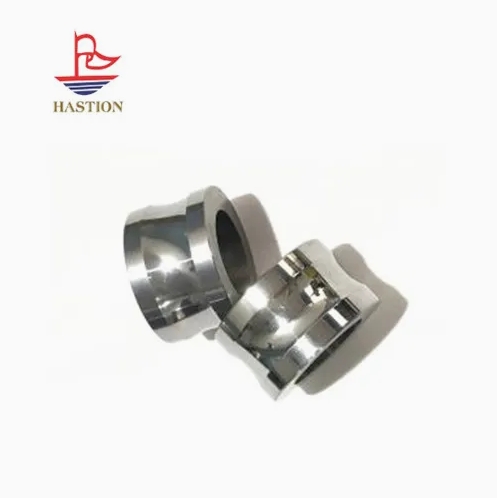

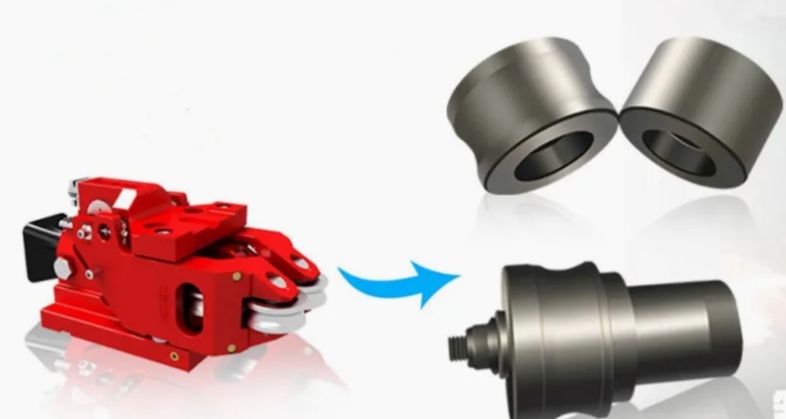

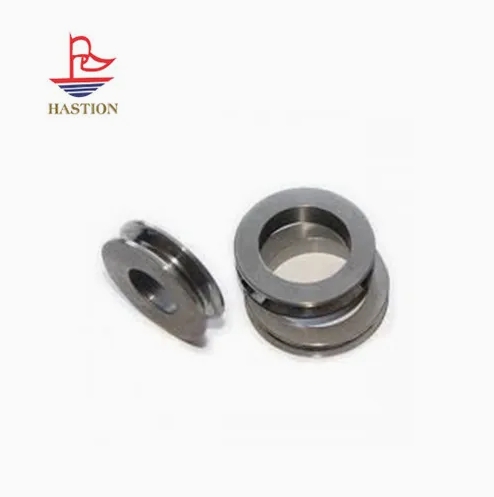

High-precision titanium carbide guide wheels

•
•
•
•
•

Hard alloy titanium carbide guide wheels are key guiding components in the production of wire and tube materials. They are made by powder metallurgy sintering of high-purity titanium carbide and cobalt binder phases, with a surface hardness as high as HRC88 and wear resistance more than 50 times that of steel guide wheels. The roundness error is controlled within 0.002mm to ensure smooth operation of the wire during high-speed drawing (up to 100m/s), avoiding jitter or offset. In the production of stainless steel wire, the use of this guide wheel can reduce the surface roughness of the steel wire from Ra1.6μm to Ra0.4μm, significantly improving product quality. This type of guide wheel can be customized with groove shapes according to the specifications of the wire or pipe, such as V-shaped, U-shaped, semi-circular, etc., to meet different production requirements. After its surface is polished, the roughness is as low as Ra0.01μm, which can reduce the friction damage of the wire and increase the breaking strength of the metal wire by 10%. In the production of automotive brake cables, the stable guidance of the guide wheels can ensure the uniform tension of the brake cables and avoid the risk of breakage during use.
