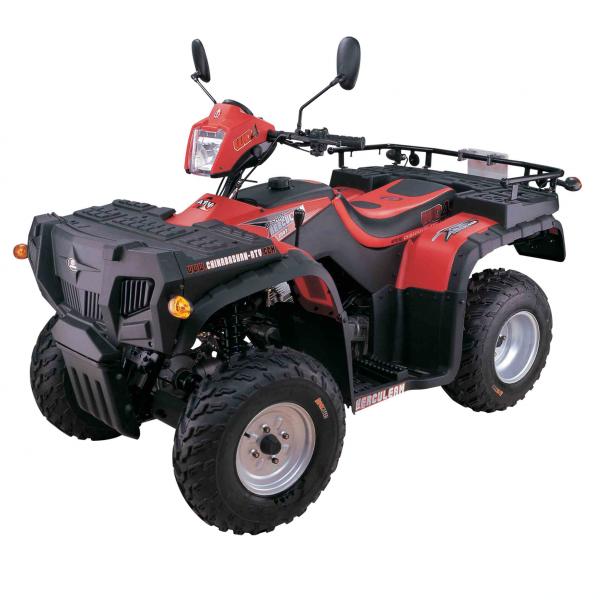

Квадроциклы ATV Китай
Engine Type Single Cylinder, 4 Stroke, Forced Air Cooling, OHC, Balance Shaft, Automatic Clutch
BoreГ—Stroke 71Г—66.8 mm
Compression Ratio 10.5:1
Displacement 264.0 cc
Max Power 12.7 kw/(7000В±5%) rpm
Max.Torque 21 N.m/(4500В±5%) rpm
Fuel Tank Capacity 12 L
Gear 2 Forward Gears And 1 Reverse Gear
Transmission Mode Shaft
Start Mode Electric
Max.Speed 72 km/h
Ignition Mode CDI
Battery Capacity 12 v14Ah
Engine Oil 1.5L
Lubrication Press splash
Parking Trig Mechanic lock
Chassis
Min.Ground Clearance 295 mm
Front Tires AT25Г—8-12
Rear Tires AT25Г—10-12
Front Brake Disk
Bear Brake Disk
Front Suspension Independent Single A-arm
Rear Suspension Swing arm, mono shock
Product Dimensions 1865Г—1170Г—1211 mm
Wheelbase 1180 mm
Seat Height 910 mm
Dry Weight 300 kg
Load Capacity 165kg
Climbing Ability ≥25В°
Min.Turning Radius 3100В±200 mm
Max.Number of Riders 1
