Robot protective system-intelligent climate controlling
Product Introduction:
The patented product is composed of protective clothing, temperature control system, ventilation pipe and pressure system. The clothing adopts multi-layer structure to ensure the heat insulation effect; the control system can be connected with the communication system of the robot.
The applicable ambient temperature range is - 40 —— 70 ℃， with intelligent temperature regulation, remote monitoring, anti leakage protection and other functions.
It can be used in the cold storage of aquatic products, low temperature preservation, pharmaceutical factories, cold areas in the north, tropical areas and other extreme high and low temperature environments.
User pain point:
Existing Problems:Extreme low temperature,Extreme high temperature,Lubricant solidification,Motor overheating;
User loss:Robot stop,Equipment failure,Motor damage,Line down;
Material parameters:
mported high temperature resistant coating materials:
The material is cold resistant and heat-resistant, with the B1 level of fire resistance; it has good bending resistance, good flexibility in harsh environment, and is not easy to wear out. Combined with the insulation layer, the outer layer has high strength and the inner layer has good heat storage performance.
Flame retardant elastic belt:
It has good flame retardancy, high strength, elongation ratio over 1:2.5, and is not easy to produce fatigue under the long-term action of external force.
Temperature control system:
There are cooling mode, heating mode, water removal mode, etc. In order to realize the function of temperature control, it is necessary to heat up in low temperature environment and cool down in high temperature environment.
Ventilating duct:
Good low temperature flexibility, wear resistance, surface resistivity less than 10 ^ 9 Ω, no pollution.
| Weight (g/m²) | After-flame Time (s) | After-glow Time (s) | After-glow Length (mm) | Anti-twist and Bending Performance | Tear Strength (N) | Breaking Strength (N) |
| 483.8 | 0 | 0.9 | 33 | Grade 0 | 105 | 2100 |
| 660.5 | 0 | 1.6 | 32 | Grade 2 | 276 | 2100 |
Product Advantages：
Heat-resisting
Cold-resistant
Insulation
Ventilation
Application industry：
Climate simulation,Cold storage,Low temperatur,Pharmaceutical,Metalworking,Smelting industry,Spare parts
Design advantage:
Digital remote design,No field measurement required,Short supply cycle,High precision design,Only 2D & 3D digital analog, on-site video and pipeline trend are required.
Product details:
Base pendulum:A large skirt is arranged at the place with a large movement amplitude of the first axis, so that the space increases after inflation and does not interfere with the operation of the robot.
Elastic structure at connecting rod:The lateral elastic ring binds the protective clothing to avoid excessive expansion due to internal air pressure.
Pipeline hanging buckle:A pipeline hanging buckle is added at the lower end of the arm to facilitate the fixation of the pipeline.
Six axis end closure:The protective clothing is fixed on the robot by the double closing way of elastic belt and tie belt to prevent the exchange of internal and external gas from affecting the temperature control effect.
Protective effect:
High quality + safety Escort + intimate service = spring rain protection
Spring Rain Protection Inspiration has become a leading domestic and internationally competitive protection product company.
Send product request
Other supplier products
 |
Automotive interior Flame Retardant Tester | The instrument is suitable for locomotive vehicle materials flame retardant material 45 ° angle of the combustion test.StandardsGB 8965-1998 Fl... |
 |
Shoe Outsole Slip Resistance Tester | Theshoe and heel materials slip resistance testerhas been developed following extensive biomechanical studies and is representative of conditions e... |
 |

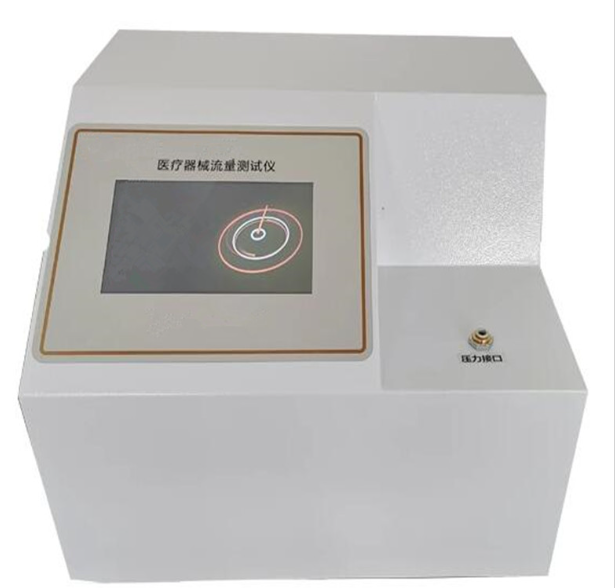

Syringe needle flow tester | Product introduction It is a device used to detect the flow of syringes. The principle is to calculate the flow of syringes by measuring the ... |
 |
