fingertip hand abrasion tester

Functionality of a product is considered as a matter of course, so the perception of quality is determined

primarily by the visual appearance. Damage to a surface by the human hand is one of the main reason for disturbance of the products quality perception.

The hand abrasion is a very complex chemical and mechanical combination. By touching a surface the human hand performs a mechanical strike followed by a push-slide force. The human hand consists of a visco elastic material containing a rough

and structured surface. In addition, sweat or hand cream creates a severe chemical environment.

Hand Abrasion Tester / soft-chemo-mechanical fingertip & hand abrasion tester is designed to do

real life testing of finished products or lab samples in regards of resistance to hand abrasion. The

set-up of it is exactly reproducing the complex chemo mechanical system of the human hand abrasion according to international standards.

The flexible design of the tester allows various options and delivers reproducible results.

Standard

Simulation of human skin acc.

ISO 12947-1/IEC 68-2-70

Dirt affinity

Simulation of soiling of materials.

Cotton soiled with carbon back/oil (IEC).

Abrasion of leather

Simulation of rub resistance of leather.

Standard wool felt.

Abrasion Pads

Simulation of high-abrasive mechanical wear.

Abrastion Pad ‚Scotch test

Simulation of abrasion with ‚scotch‘ pads.

More options on request.

Chemical options

Artificial Sweat

Artificial Sweat according to ISO 105 E04

or DIN 53160-2.

Hand cream / Sun lotion

Hand cream and Sun lotion according to customer specification.

More options on request.

Applications

Automotive market:

- Printing on switches

- Coating of door handles

White goods:

- Printing

- Painted surface

Computer industry:

- Keyboard

- Mouse

Specifications

International Norm: EC 68-2-70

European Norm: EN 60068-2-70

German Norm: DIN 60068-2-70

Abrasion of markings and letterings caused by

rubbing of fingers and hands.

Technical data

Normal load: 1. 5. 10 N (20N optional)

Friction path: 1 - 40mm

Number of cycles: 1 -100 million

Fluid feed: cyclic

Fabric feed: cyclic

Power supply: 110 V / 230V

Mechanical options

Other supplier products

	Coating thickness gauge/film thickness gauge	Standard Coating Thickness Gauge complies with international standards includingASTM B499,ASTM D1400,ISO 2178,ISO 2360, andGB/T 4956, ensuring rel...
	Spring torsion tester	The Spring Torsion Tester is designed to precisely measure torsional properties, including torque and angle, for a wide range of torsion springs an...
	Micro Controll Four-ball Friction Tester	The microcomputer-controlled four-ball friction testing machine uses a sliding friction method under point contact pressure conditions at the extre...

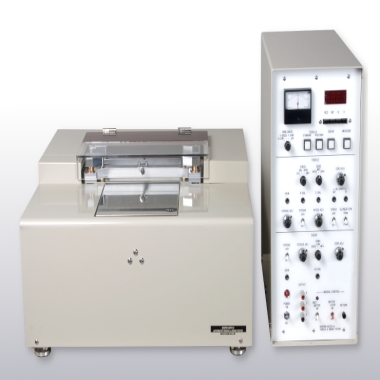

	Tensile and Shear Tester	Obtainable data includes tensile/shear rigidity, tensile energy, elongation rates, and recoverability for such targets as cloth, paper, non-woven f...

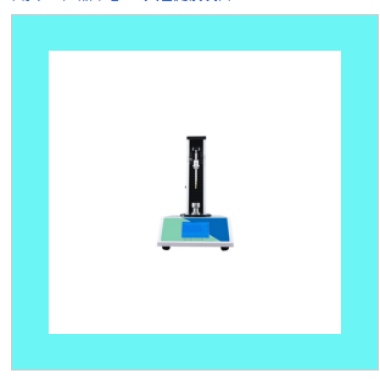

	Cork Puncture and Chip Detection Instrument	The rubber stopper puncture debris detector is a device specifically used to detect the number of debris generated during the puncture process and ...
