Advanced material surface performance testing machine
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
Mechanical property testing of metal, ceramic, polymer, and composite material surfaces.
Wear and friction performance evaluation of coatings, platings, thin films, and composite materials.
Friction and wear testing under low-temperature conditions.
Friction and wear testing in liquid media environments (e.g., lubricating oil, saline).
Material development, quality control, and tribology research in industrial production and laboratories.
Standards
GB/T 3960-2016 Plastics – Determination of Sliding Wear Properties
GB/T 20394-2013 Artificial Turf Durability Test Method
JB/T 8554-1997 Coating Adhesion Automatic Scratch Test Method
ASTM G99 Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus
ASTM G133 Standard Test Method for Linearly Reciprocating Pin-on-Flat Sliding Wear
ISO 20502 Coating Scratch Test
DIN 50324 Friction and Wear Test Standard
Parameters
| Parameter | Specification |
|---|---|
| Reciprocating Friction | Load: 30–1000 g (weight), 10–200 N (automatic); accuracy 0.2% F.S.; sliding frequency 0.1–45 Hz; stroke 0.5–25 mm; max reciprocating force ≤100 N |
| Electrochemical Reciprocating Friction | Load: 30–1000 g (weight), 10–50 N (automatic); accuracy 0.2% F.S.; frequency 0.1–5 Hz |
| Rotational Friction | Load: 30–1000 g (weight), 10–200 N (automatic); accuracy 0.2% F.S.; table speed 5–2800 rpm, stepless |
| Ring-on-Block Friction | Load: 100–1000 g (weight), 10–200 N (automatic); accuracy 0.2% F.S.; spindle speed 5–2000 rpm, stepless |
| Pipe Surface Friction | Load: 50–1000 g (weight); accuracy 0.2% F.S.; reciprocating stroke 0.5–20 mm; frequency 0.1–35 Hz |
| Wear Volume Measurement | Load ≤40 g; wear scar depth ±0.5 mm; accuracy 0.02 µm (customizable) |
| Low-Temperature Module | Load 0.3–10 N; accuracy 0.2% F.S.; temperature range: room temperature to -50℃ |
| Power Supply | 220 V, 50 Hz, 6000 W |
| Instrument Weight | Approx. 150 kg |
| Workbench Size | 1800 × 750 × 800 mm (user-supplied) |
Accessories
| Accessory | Specification / Use |
|---|---|
| Reciprocating Friction Module | Automatic or weight loading; adjustable stroke and frequency |
| Rotational Friction Module | Table speed adjustable; accommodates various sample diameters |
| Ring-on-Block Module | Spindle speed 5–2000 rpm; suitable for ring-on-block tests |
| Pipe Friction Module | Adjustable stroke and frequency; simulates pipe surface friction |
| Low-Temperature Module | Temperature -50℃ to room temperature; for low-temperature friction tests |
| Electrochemical Module | Tests friction under corrosive media conditions |
| Wear Measurement Module | Accuracy 0.02 µm; measures wear depth and volume |
| Sample Fixtures | Secure samples of different sizes and shapes |
| Data Acquisition & Analysis Software | Real-time collection of friction force, friction coefficient, wear volume, and environmental parameters |
| Power Cable | Input 220 V, 50 Hz |
Send product request
Other supplier products
 |
Battery abuse testing chamber for lithium-ion battery manufacturers | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application Battery Energy Storage Systems Thermal runaway evaluation of commercial batte... |
 |
Ink printing proof press meter | Whats/App: +86 156 1874 6768 Web: standard-groups.com How it works: Ink printing proof machine is mainly based on the principle of printing repr... |
 |
Respirator Fit Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Qinsun PortaCount Respirator Fit Tester assesses the overall integrity of masks by perf... |
 |

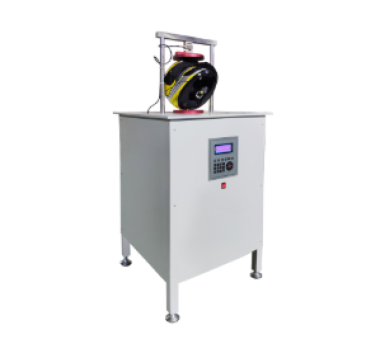

Advanced Hard Hat Deformation Resistance Tester for Certification | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The tester complies with the following standards: (1) GB 2812 &nd... |
 |
