Mechanical Scratch Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
Primary test purposes
Coating scratch resistance evaluation
Coating hardness assessment based on mechanical damage behavior
Determination of coating failure load
Detection of coating breakthrough on conductive substrates
Typical tested materials
Painted metal panels
Industrial coatings
Automotive coatings
Protective and functional coatings on metal substrates
Laboratory standard test panels
Standards
(1) GB/T 23989-2009 – Determination of scratch resistance of coatings
(2) GB/T 5210-2006 – Paints and varnishes – Pull-off adhesion test
(3) GB/T 1768-2006 – Determination of abrasion resistance of paint films
(4) ISO 1518-1 – Paints and varnishes – Scratch test – Part 1: Determination of scratch resistance
(5) ISO 20502 – Coating materials – Scratch test
(6) ASTM C1624 – Standard test method for adhesion and scratch resistance of ceramic and hard coatings
(7) DIN EN 1071-3 – Advanced technical ceramics – Mechanical properties of ceramic coatings – Part 3: Scratch testing
Parameters
| Parameter | Specification |
|---|---|
| Stylus moving speed | 35 mm/s |
| Maximum panel size | 100 × 150 × 1.6 mm |
| Maximum coating thickness | 0.3 mm |
| Applicable standard setting | ISO 1518-1 |
| Standard test load | 20 N |
| Power supply | 230 VAC, 50 Hz |
Features
Mechanical drive system enclosed by a protective cover for stable and safe operation.
Constant sliding speed of approximately 3–4 cm/s.
Rigid, well-balanced stylus arm that minimizes vibration and instability during scratching.
Equipped with a 1 mm tungsten carbide ball stylus fixed at 90° to the test panel.
Stylus can be easily removed for inspection or replacement.
Tungsten carbide tip provides long service life without frequent replacement.
Adjustable loading system with selectable weights from 100 g to 2 kg (0–20 N).
Optional additional weight up to 10 kg available for testing harder coatings.
Compatible with standard metal panels up to 150 × 100 mm and thickness up to 1.65 mm.
Optional transparent plastic safety cover to prevent accidental contact during operation.
在线联系供应商
Other supplier products
 |
Small Parts Tester | Test Procedure: Usage Methods and Interpretations Applicable standards: ASTM F963 EN 71-1 16 CFR Part 1501 ISO 8124-1 Product Advantages: Eff... |
 |
LSFT Large-Scale Fire Test System，large scale combustion test system | Whats/App: +86 156 1874 6768 Web: standard-groups.com The LSFT Large-Scale Fire Test System is a specialized testing platform designed for extrem... |
 |
Filter cartridge pore size tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications This instrument is widely used in fields such as determining the effective po... |
 |
Microbial Barrier Tester | Y/T 0471.5-2017 is a newly updated standard, which specifies the experimental method for evaluating the bacteria-inhibiting performance of the cont... |
 |
Metal ring friction and wear testing machine | Evaluate the wear resistance of the material: By simulating the friction process, real-time monitoring of friction, temperature, wear and other pa... |
Same products
 |
Mini Jewelry Laser Welding Machine | 卖方: Beijing JCZ Technology Co., Ltd | The Mini Jewelry Laser Welding Machineis an advanced mini laser welding system engineered for pre... |
 |
Pulse Laser Cleaner | Handheld Solution for Precision Surface Cleaning for Rust & Coating | 卖方: Beijing JCZ Technology Co., Ltd | Looking for an efficient and eco-friendly laser cleaning machine? The HCP Series Pulse Laser Clea... |
 |
Mini Type Laser Marking & Engraving Machine – Fiber & UV Laser Options for Precise Marking | 卖方: Beijing JCZ Technology Co., Ltd | This compact, Mini Type fiber laser marking machineis perfectly suited for small businesses, work... |
 |
Large Enclosed Laser Marking & Engraving Machine for Industrial Use | 卖方: Beijing JCZ Technology Co., Ltd | The Large Closed Laser Marking Machineis a high-performance engraving solution designed for indus... |
 |

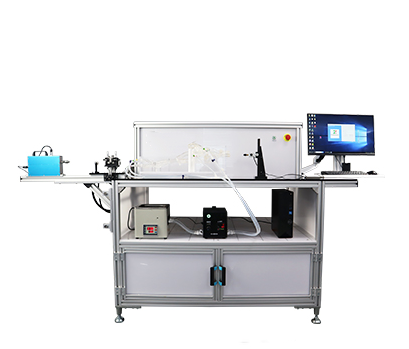

Axial force wire guide apparatus | 卖方: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards YYT0807 - 2010 :Standard Guide... |
