G664 fibreboard bending testing machine

•

Product Introduction:

G664 mid-sole fiberboard zigzag testing machine Test leather shoes and casual shoes, walking shoes and other travel shoes, mid-sole fiberboard zigzag resistance quality.

One end of the sample of shoe fiberboard material is hung in a weight, and one end is fixed in the fixture is continuously reciprocated to the left and right each bending 90 degrees, testing a certain number of times until the break, the number of breaks to determine the flexion index of the bottom plate, as a basis for comparison and selection of the bottom plate.

Reference standard:

QB/T 1472. BS 5131:4.2. SATRA TM3. PM4. PM5. PM6. PM15. PM16. QB/T4329-2012 standard

Technical specifications:

1. Test fixture: 6

2. Test piece: 80×10mm

3. Reciprocating Angle: 90°

4. The weight includes the clamp: (2±0.01kg)×6

5. Tortuous speed: (60±10)r/min

6. Counter: LCD, 0——999999(7 groups)

7. Sample holder: upper clip length 15mm, lower clip length 10mm

8. Motor: variable frequency motor

9. Volume: 109×26×34cm

10. Power supply: 1∮，AC220V,3A

Другие товары поставщика

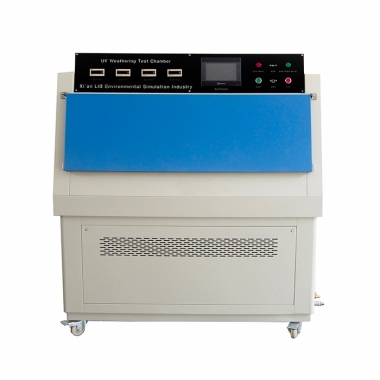

	UV Test Chamber	Features and Benefits 1. STD UV-SI-260 is widely used in UV aging test, which can realize the comprehensive test of UV, temperature, humidity and ...

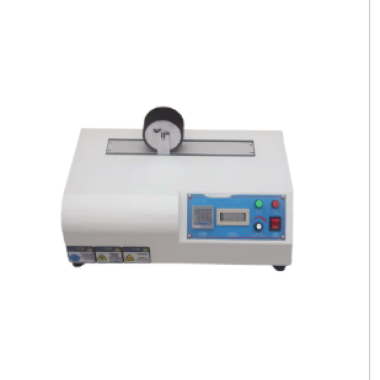

	Electric rolling wheel peeling testing machine	Electronic pressure roller testing machine (automatic pressure roller machine) specializing in intaglio printing process for the production of plas...
	UV Xenon Arc Weather Testing Chamber	Product introduction This equipment uses xenon arc lamp that can simulate the whole spectrum of sunlight reproduction under different environments...

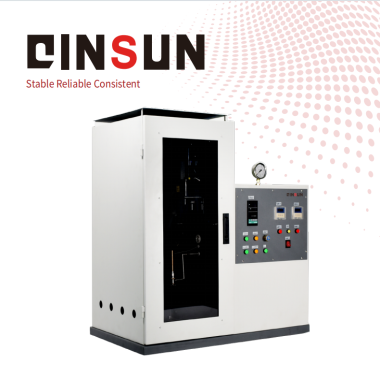

	Surgical Mask Flame Retardant Test machine	Flame-retardant tester for surgical mask, In case of the mask is accidentally exposed to flame, its flame-retardant performance is directly related...
