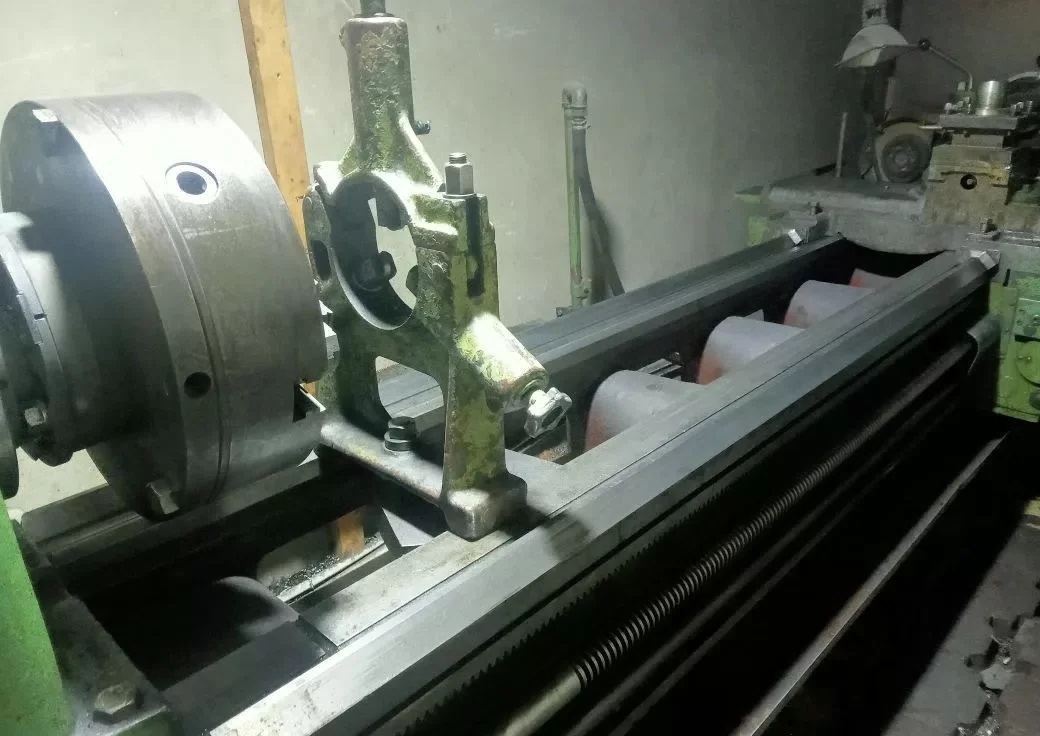

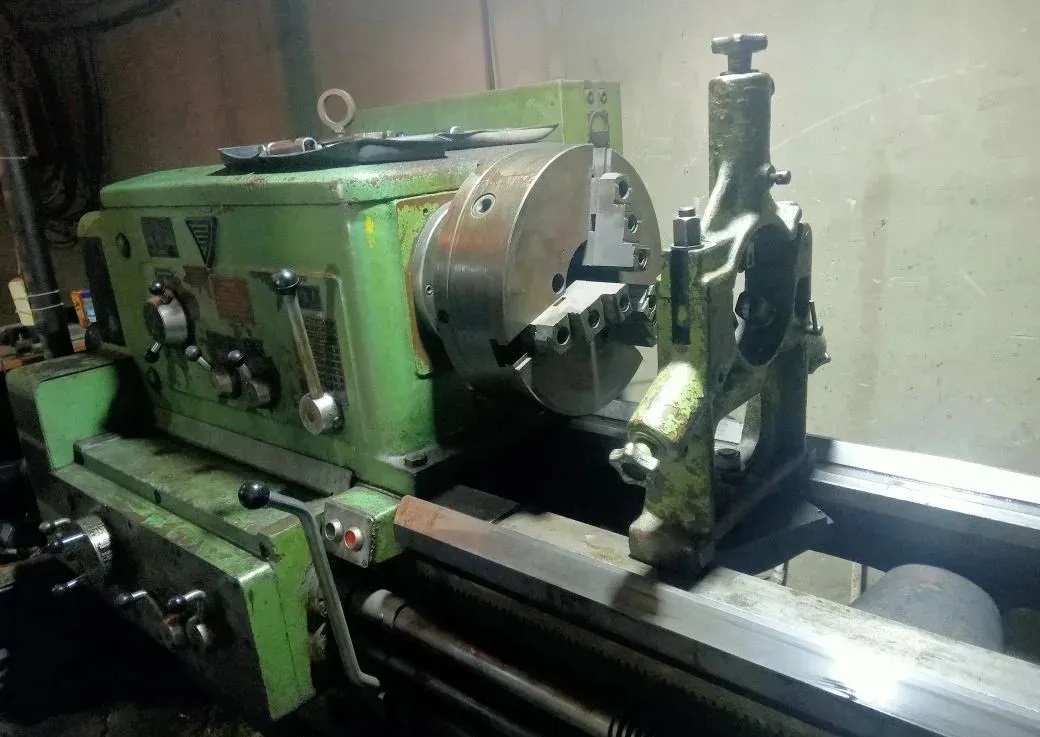

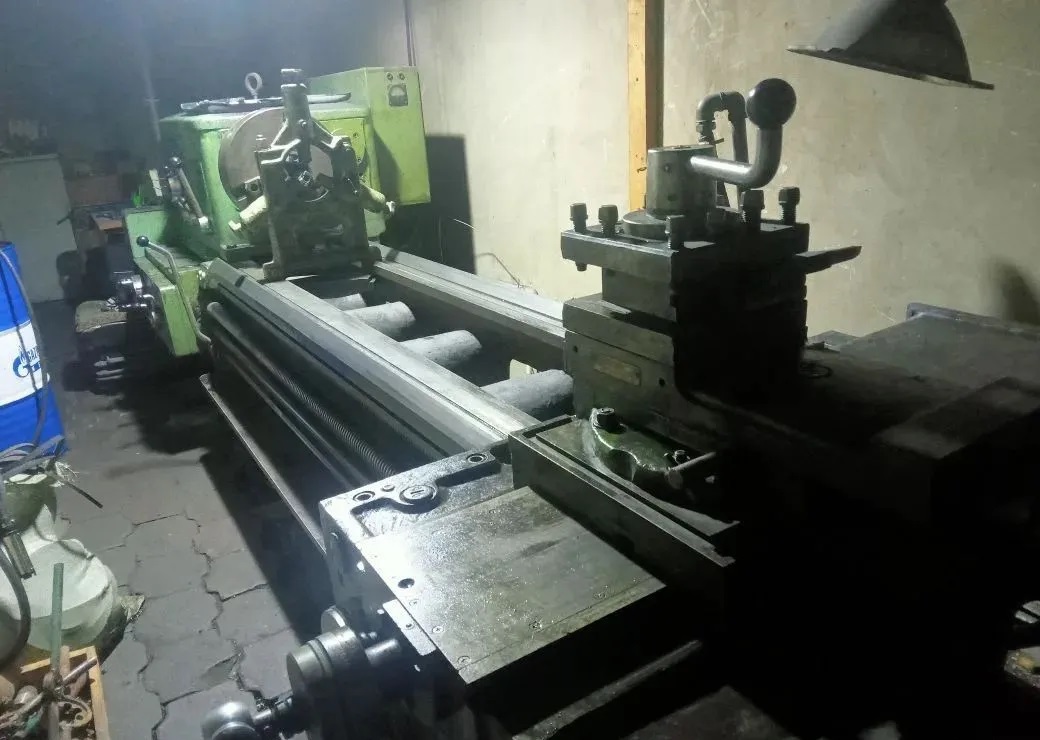

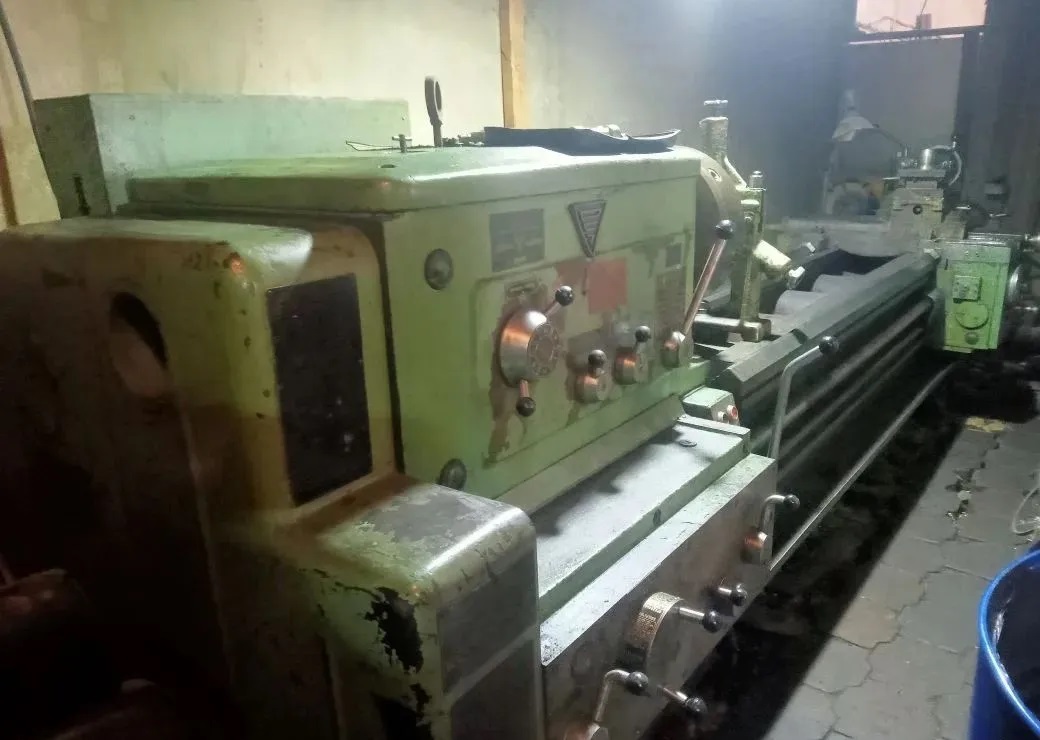

Screw-cutting lathe 1M63 / DIP-300, RMC 3000 mm
Workpiece diameter over bed 630 mm
Workpiece diameter over support 340–345 mm
Diameter in bed recess up to 900 mm
Diameter between centers 3000 mm (indicated in the name)
Spindle bore diameter 70–105 mm (depending on the modification)
Spindle taper Metric 115 / Morse 6
Spindle speed 10–1250 rpm (22 steps)
Main drive power 15 kW
Maximum cutting force ~20 kN (≈2000 kgf)
Feeds: longitudinal / transverse 0.06–1.4 / 0.024–0.518 mm/rev
Threads: metric / inch 1–224 mm / 28–0.25 threads/inch
Threads: module / pitch 0.25–56 module / 112–0.5 pitch
Rapid slide travel 5.2 / 2.0 m/min (long./trans.)
Cutter height in holder 30–40 mm
Accuracy class H (according to GOST 8-82)
Dimensions (L×W×H) at 3000 mm center of rotation ~5250 × 1780 × 1550 mm
Machine weight (3000 mm center of rotation) ~4,840–5,750 kg
Country of manufacture: Russia (Ryazan Machine Tool Plant)
Year of manufacture: Not specified (approximately 1960s–1980s)
The 1M63/DIP-300 screw-cutting lathe is a universal, heavy-duty machine for machining large parts. It is designed for turning cylindrical and conical surfaces, cutting metric, inch, module, and pitch threads, drilling, countersinking, and other turning operations. It features high rigidity and vibration resistance.
