Screw-cutting lathe 1A64 / DIP-400, RMC 2800 mm
Workpiece diameter over bed 1000 mm
Workpiece diameter over support 580–600 mm

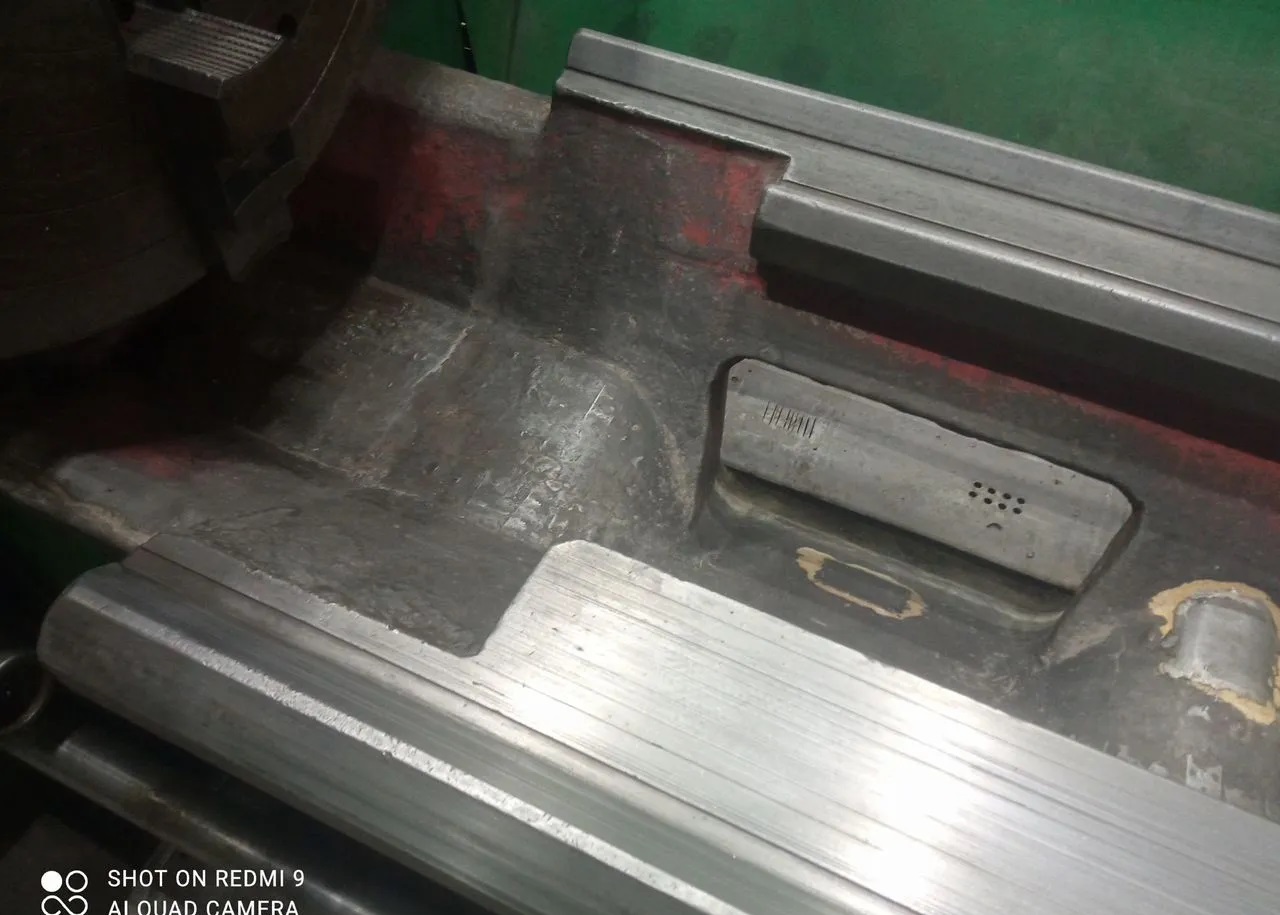

Diameter in bed recess* up to 1400 mm
DPC (distance between centers) 2800 mm (indicated in the name)
Spindle bore diameter 105 mm
Spindle taper Metric 115 / Morse 6
Spindle speed 10–1250 rpm (22 steps)
Main drive power 18.5–20 kW
Maximum cutting force ~25–30 kN
Feeds: Longitudinal / Transverse 0.07–4.16 / 0.035–2.08 mm/rev
Threads: Metric / Imperial 1–192 mm / 24–0.25 threads/inch
Threads: Modular / Pitch 0.5–48 modules / 96–1 pitch
Rapid slide travel ~4.0 / 2.0 m/min
Cutter height in holder 40–50 mm
Accuracy class H (according to GOST 8-82)
Dimensions (L×W×H) at 2800 mm center-to-center distance ~5825 × 2000 × 1660 mm
Machine weight (standard) 11,400 kg
Country of manufacture: Russia (Ryazan Shipyard)
Year of manufacture: 1953–1980s (serial)

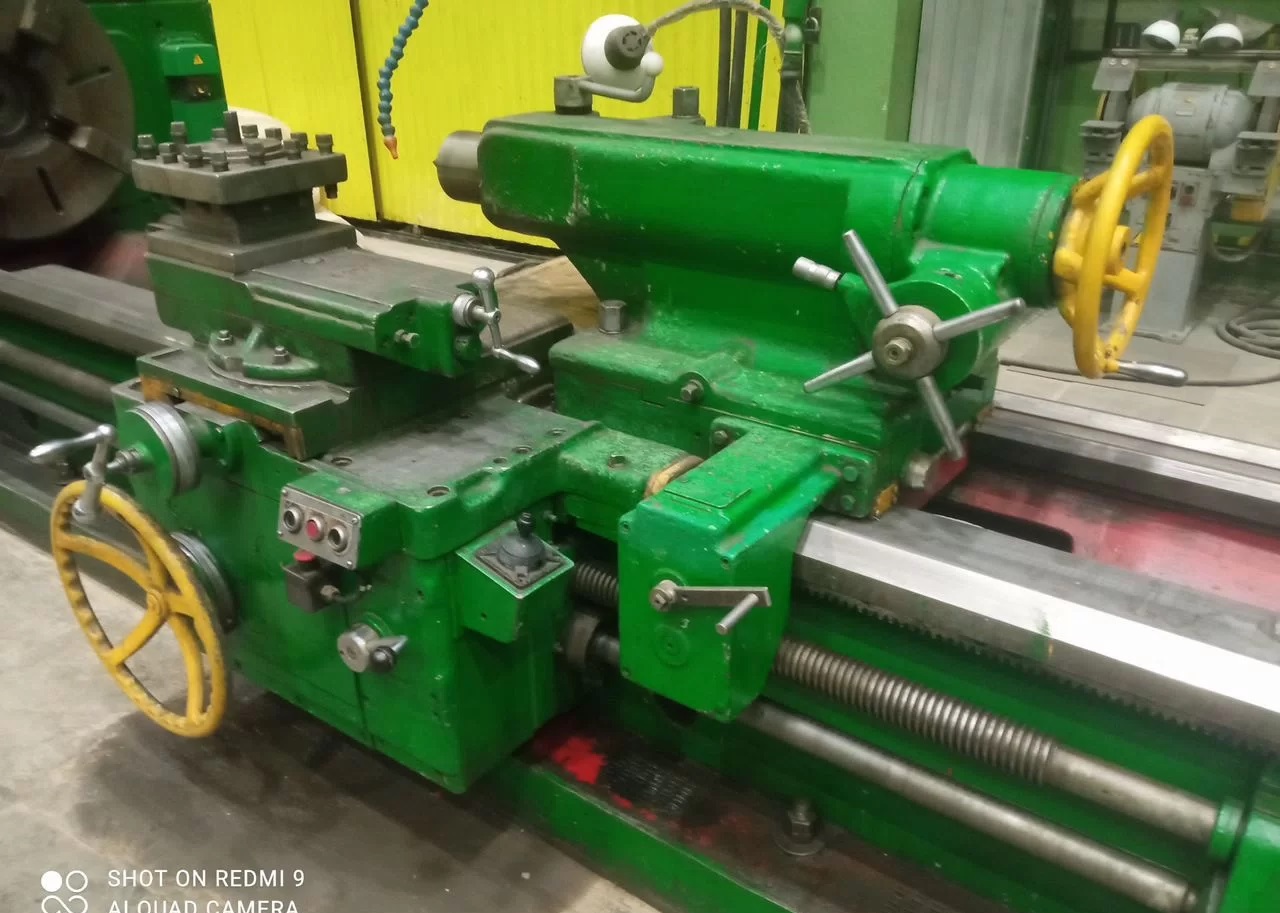

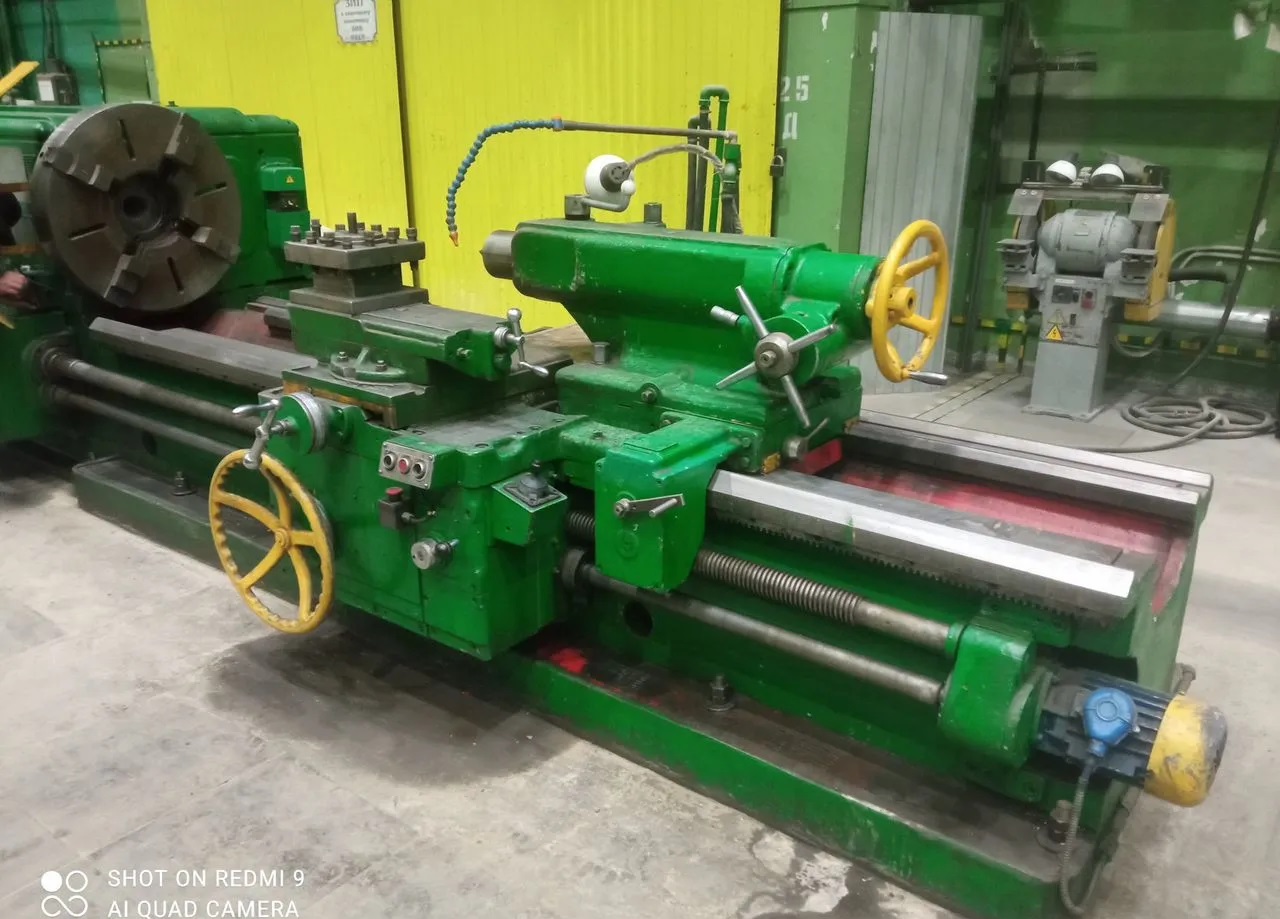

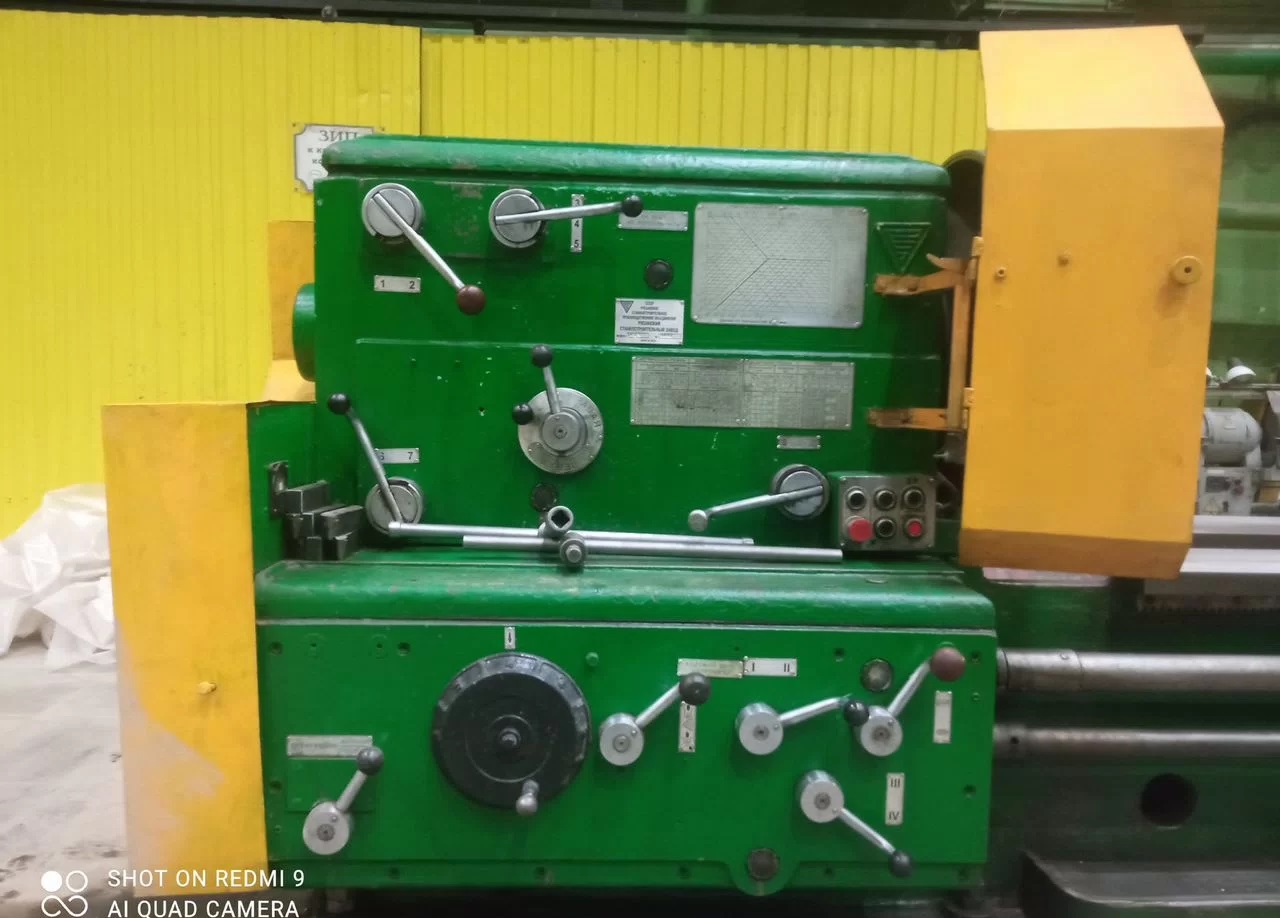

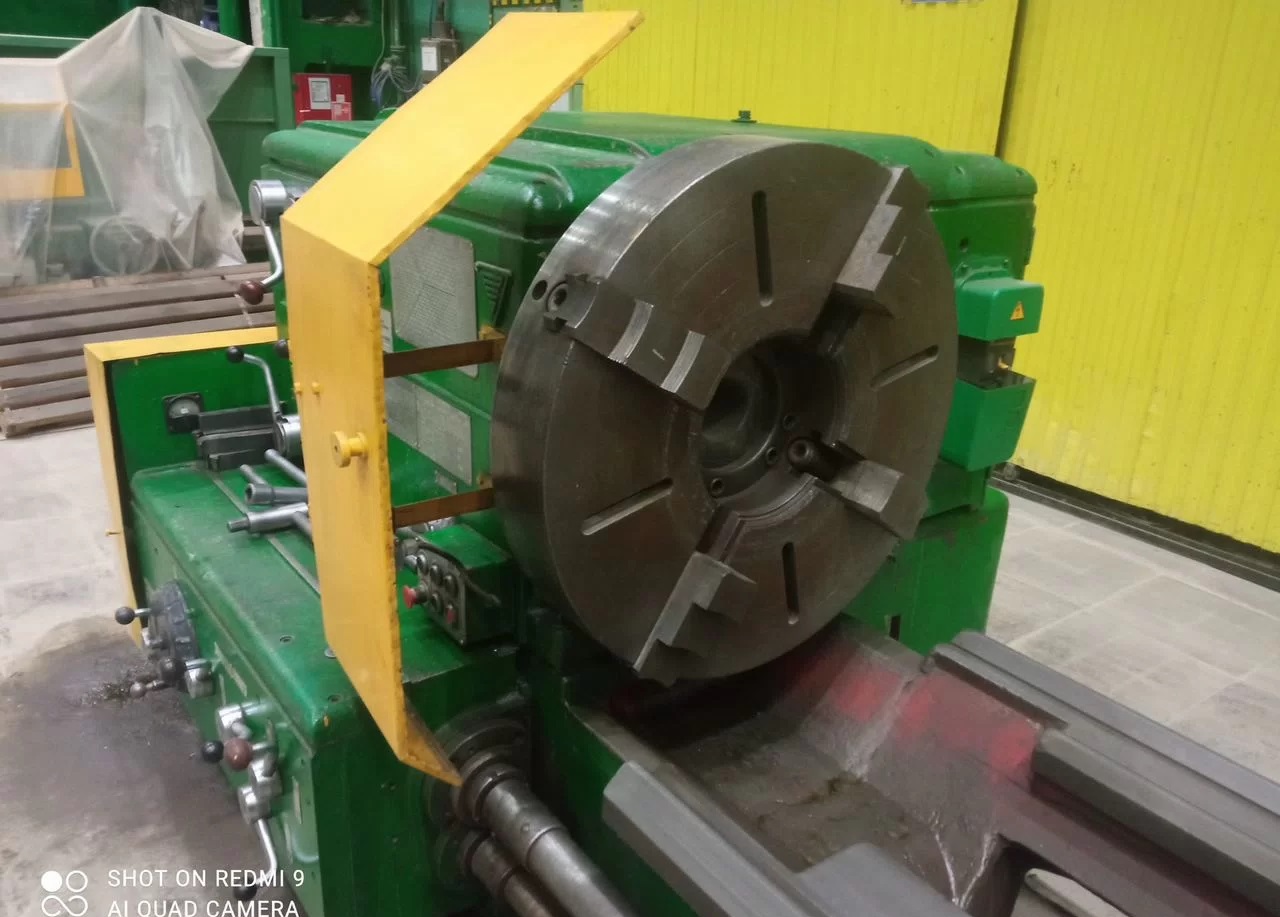

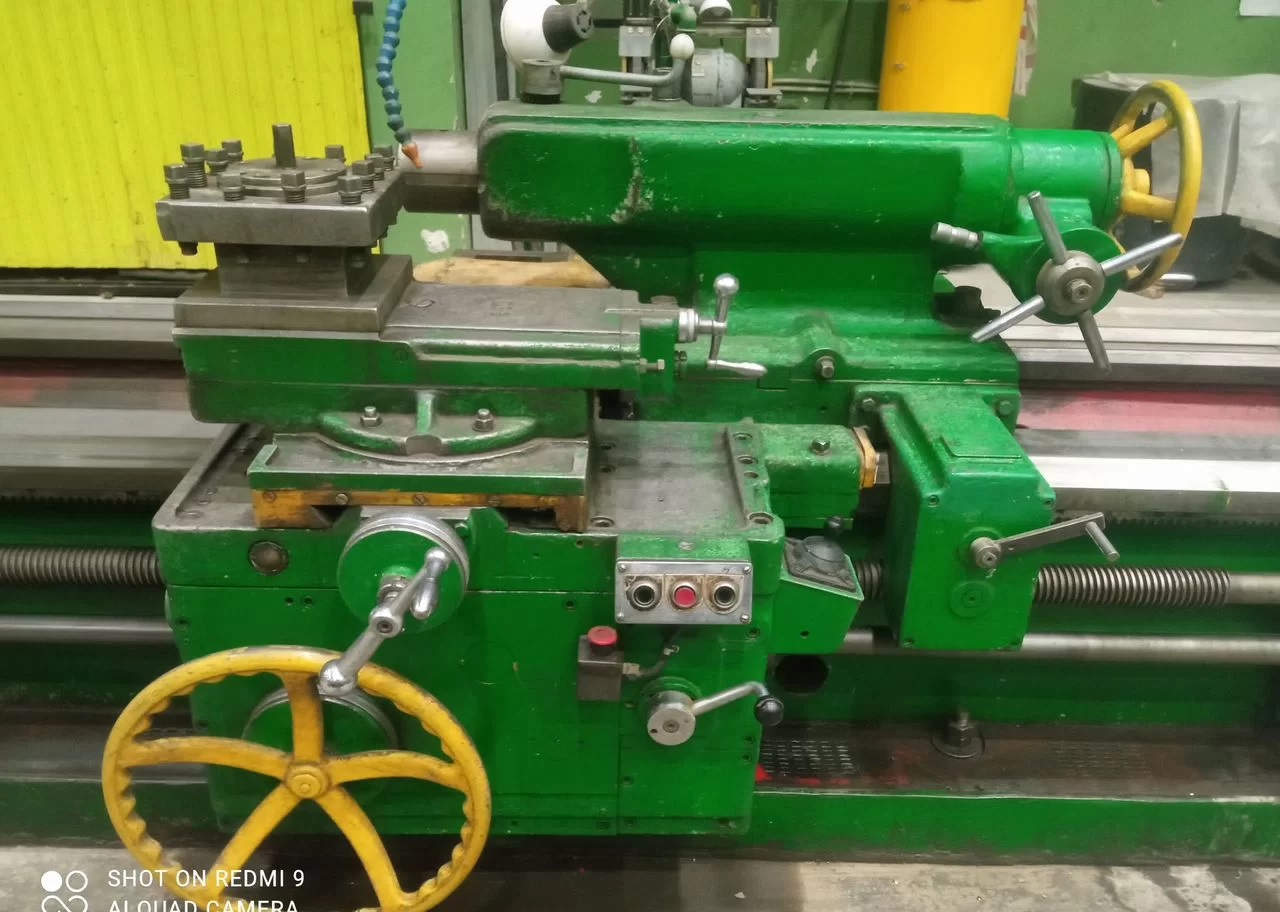

The 1A64/DIP-400 screw-cutting lathe is a heavy-duty, universal machine for machining large parts made of ferrous and non-ferrous metals. It is designed for turning cylindrical and conical surfaces, cutting metric, inch, modular, and pitch threads, drilling, and boring. It features high rigidity, vibration resistance, and temperature stability. Manufactured by the Ryazan Machine Tool Plant.
