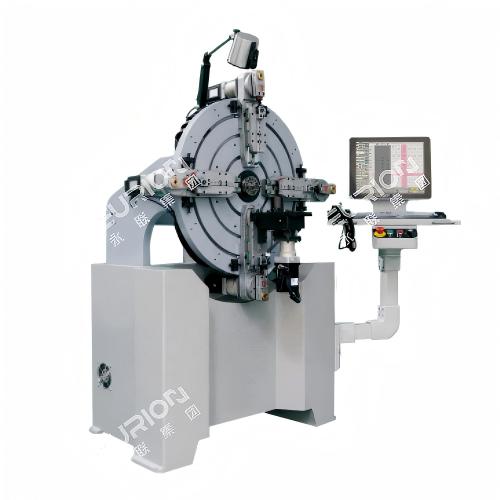

High Speed Flat Wire Coil Winding Machine for EV Traction Motor Manufacturing

High-Precision Servo Control System:Equipped with an industrial-grade control platform and imported servo motors with planetary reducers, ensuring high efficiency, accuracy, and stability during operation.

Six-Axis Coordinated Motion Design:Includes feeding, winding, traversing, and multi-axis forming units. Each axis is independently controlled and works in coordination to perform complex forming tasks.

Multiple Winding Modes and Coil Shapes:Supports clockwise/counterclockwise winding, dense winding, variable pitch, single/multi-layer configurations. Capable of forming square, round, trapezoidal, oval, and triangular coils.

Quick Changeover and Efficient Setup:Tooling change allows for different wire specifications; machine parameters can be saved and quickly recalled for fast model switching and reduced setup time.

Industrial Control Interface with Flexible Numeric Programming:Features an intuitive industrial HMI, supporting numeric input programming and graphical path simulation for easy operation and quick learning curve.
