NH-6016TA Cylinder Type Laser Pipe Cutting Machine Feeding Device
NH-6016TACylinder Type Laser Pipe Cutting Machine Feeding Device
Product Introduction
- Cylinder Type Laser Pipe Cutting Machine Feeding Deviceis driven by a cylinder to achieve movement, without other power consumption, energy-saving and environmentally friendly.
Technical Parameter
|
Material |
Stainless steel pipe, carbon steel pipe, aluminum pipe, etc. |
||
|
Applicable pipe specifications |
Round tube diameter |
φ20mm-φ160mm |
|
|
Square tube diameter |
20mm-160mm |
||
|
Rectangular tube size |
The maximum aspect ratio is 1.5:1, and the cross-sectional side length is 20mm-200mm |
||
|
Pipe length |
3m, 6m, 9m |
||
|
Loading time |
Round tube |
First loading: 70S |
Cycle feeding: 30S |
|
Square tube, rectangular tube |
First loading: 70S |
Cycle feeding: 30S |
|
|
Silo load bearing weight |
|||
|
Maximum weight of a single piece |
100Kg |
||
The pipe automatic feeding deviceprovided by New Hopeis a precision-engineered system that integrates with cutting, polishing, or CNC machines to enable continuous production cycles without manual intervention. Utilizing advanced servo motors and smart sensors, it guarantees accurate pipe alignment and feed-rate control, making it ideal for high-volume manufacturing environments.
在线联系供应商
Other supplier products
 |
NH-1500WF Air Cooled Laser Welding Machine | NH-1500WFAir Cooled Laser Welding Machine Product Introduction water-cooledlaserwelding machines, and more compact. Air Cooled Laser Wel... |
 |
NH-3015BT Exchange platform plateand tube integrated laser cutting machine | NH-3015BTExchange platform plateand tube integrated laser cutting machine Product Introduction The steel pipe welding foundation has high strengt... |
 |
NH-6016TA Cylinder Type Laser Pipe Cutting Machine Feeding Device | NH-6016TACylinder Type Laser Pipe Cutting Machine Feeding Device Product Introduction Cylinder Type Laser Pipe Cutting Machine Feeding Deviceis... |
 |

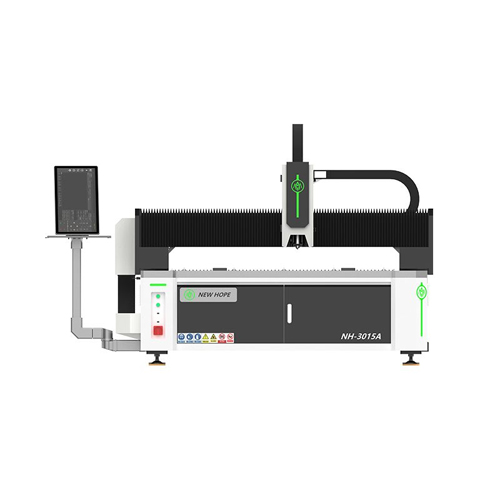

NH-3015A Single platform plate fiber laser cutting machine | Single platform plate fiber laser cutting machinebed is welded with mortise and tenon joints, the structure is more stable, the thick plate is not ... |
 |

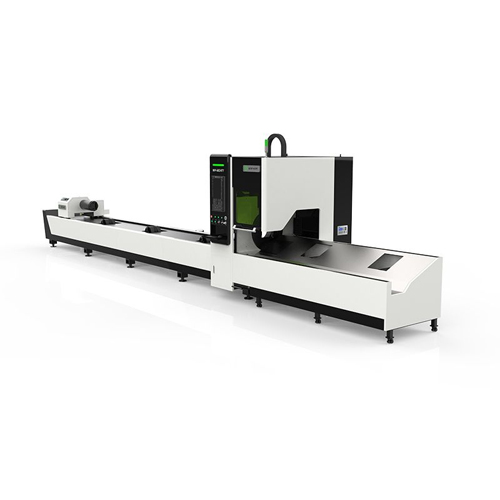

NH-6024T1 Horizontal pipe cutting machine | NH-6024T1Horizontal pipe cutting machine Product Introduction Horizontal pipe cutting machinebed is welded with mortise and tenon joints, the s... |
