Fogging Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Standards
- DIN 75201: Automotive trim material fogging resistance.
- ISO 6452: Coated fabrics fogging behavior in vehicle interiors.
- SAE J1756: Automotive interior material fogging test protocol.
- BS EN 14288 & QB/T 2728: Leather and textile fogging evaluation.
- PV 3920/3015: VDA-standard fog value determination for non-metallic materials.
- ES-X83231, NES M0161, GM 9305P: OEM-specific fogging requirements for automotive suppliers.
Product Advantages
- Triple Testing Modes: Supports gloss, gravimetric, and haze analysis for comprehensive material evaluation.
- Precision Temperature Control: ±0.1°C accuracy across high/low baths (room temperature to 150°C) ensures repeatable results.
- Six-Station Efficiency: Simultaneous testing of six samples accelerates R&D and QC workflows.
- Corrosion-Resistant Design: 316 stainless steel test chambers and epoxy-coated steel frame withstand harsh chemical environments.
- Advanced Safety: Magnetic safety switch, over-temperature thermostat, and audible test-completion alerts.
- Data Connectivity: USB port and multi-function sensors enable seamless integration with lab information systems.
Product Features
- Dual-Bath System:
- High-Temperature Bath: 670×490×540mm, 3kW heating power (up to 150°C).
- Low-Temperature Bath: 400×220×520mm, 500W cooling capacity (0–100°C).
- Automated Controls:
- Digital thermoregulator with microprocessor for precise temperature programming.
- Programmable timer (1–9999 min) with auto-stop and end-test buzzer.
- Modular Accessories:
- 18/8 stainless steel test cups, flat beakers, and chrome steel rings for sample mounting.
- Six interchangeable cooling plates and haze/gloss measurement kits.
- Safety Compliance:
- CE-certified with anti-acid epoxy coating, emergency stop, and overpressure relief.
Technical Parameters
| Parameter | Specification |
|---|---|
| High-Temperature Range | Room temperature – 150°C (280°C optional) |
| Low-Temperature Range | 0–100°C |
| Temperature Stability | ±0.1°C (at 200°C) |
| Heat-Up Time | |
| Cooling Capacity | 500W (low bath) |
| Power Supply | AC 220V, 50Hz, 3.5kW |
| Dimensions | 500 (W) × 650 (D) × 600 (H) mm |
| Net Weight | 50 kg (excluding thermal media) |
| Data Interface | USB 2.0, remote sensor compatibility |
| Safety Systems | Magnetic switch, thermostat, audible alerts |
在线联系供应商
Other supplier products
 |
Seat Ingress/Egress Simulation Tester - Test Equipment | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com 1. Product Overview The True Body Weight Ingress/E... |
 |
Photovoltaic Acid Mist Test Chamber | The Photovoltaic Acid Mist Test Chamber is a specialized device designed to simulate coastal environments with high salt fog concentrations, enabli... |
 |
Multi-function Scratcher Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com 1. Product Function and Application The Multifunction Scratch Resistance Tester i... |
 |
5-Station Seatbelt Webbing Abrasion Tester | This bench-top style tester allows the operator to load test specimens, thread seatbelt material over them, and run controlled abrasion cycles. The... |
 |
Spray Rating Tester - Test Equipment | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Standards: ISO 4920. BS EN 24920. BS 3702. GB/T 4745. AATCC 22. M&S P23. NEXT... |
Same products
 |

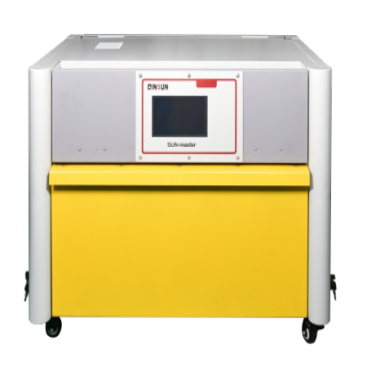

Tabletop Xenon Arc Weathering Tester (SunMaster) | 卖方: Standard Groups | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Water-Cooled Xenon Lamp Weat... |
 |
