Filter Testing Machine
It’s great significant for Dynamic Filter Tester and filter media test system bench to optimize and develop filter materials, ensure quality assurance of the production process. Dust capacity and filtration efficiency are the most interesting properties of filter material properties, depending on the pressure difference between the upstream and downstream of the filter and the test particle size.
In order to test these properties, the Filter test bench bench tests the filter materials according to international standards. The entire test bench is compact and lightweight, and only requires additional single-phase power and compressed air during the test. It is suitable for the laboratory.
Air filtration material test bench Standards
1. YY0469-2004 Technical requirements for surgical mask
2. GB2626-2006 Respiratory protective equipment -- non-powered air-purifying particle respirator
3. EN1822-3: 1998 High efficiency particulate air filters (HEPA and ULPA) - Part 3: Testing flat sheet filter media
Filter Testing Machine Features
Test the filter materials according to the standards (air filter EN779, air filters for passenger compartments ISO11155-1 ISO11057, VDI3926).
Develop and optimize filter materials.
Good quality assurance.
Smart design makes its application with greater scalability and extensibility.
The test bench can be operated and controlled by user-friendly PAFWin3.0 software.
Aerosols are available in a wide range (gas, dust and droplets).
The optimal combination of instruments makes it the most cost-effective.
Technical Parameters：
|
Items |
Parameters |
|
Air flow |
0.5～65m3/h±1% |
|
Differential pressure |
10～2500Pa±0.1% |
|
Cross section |
176cm2(diameter 150mm) |
|
Cylinder pressure |
0.2～0.6MPa |
|
Agitated time |
50～150 ms |
|
Optical particle counter |
LAP322 particle size spectrometer, 0.2～40μm(0.2～5μm, 0.7～40μm), 128 channel（test concentration<104 /cm3) |
|
Test aerosol |
Dust (AC fine, AC coarse, soot, calcite, limestone).Droplets (DEHS, DOP, paraffin, emery 3004).Salts (sodium chloride solution, ammonium sulfate solution). PSL small ball. |
|
Power |
3×230 V, 16A |
在线联系供应商
Other supplier products
 |
VW-1 wire and cable burning tester | VW-1 wire and cable burning tester is suitable for measuring the resistance of wire, cable or rope to flame horizontal propagation and falling o... |
 |
Low Temperature Chrysler Fold Tester | Standards: LP-463-KB-28-01 Method A Applications: This Cold Fold Tester is applied to the cold fold test based on Chrysler method and designed t... |
 |

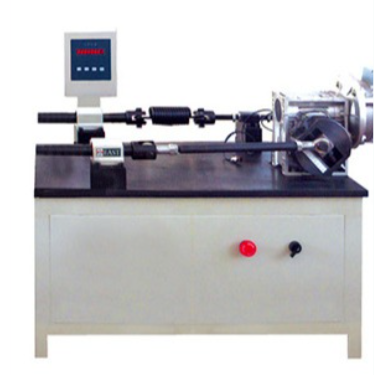

Automotive & Motorcycle Control Cable (Flexible Shaft) Fatigue Tester | The Automotive & Motorcycle Control Cable (Flexible Shaft) Fatigue Tester is designed to evaluate the durability and fatigue performance of aut... |
 |
